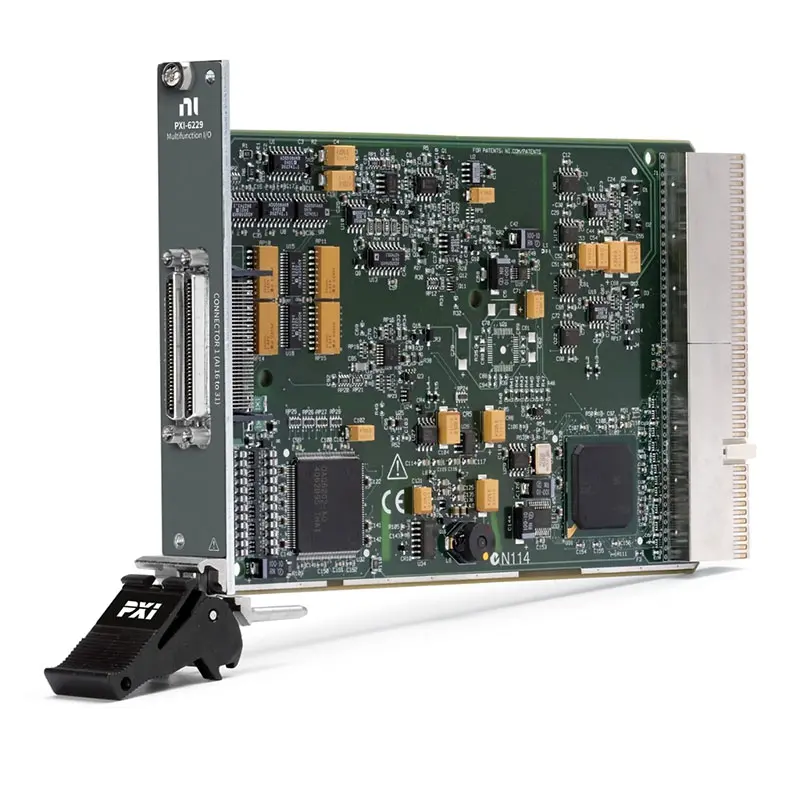

PXI-6229

The PXI‑6229 offers analog I/O, correlated digital I/O, two 32‑bit counter/timers, and digital triggering. The device delivers low-cost, reliable DAQ capabilities in a wide range of applications from simple applications in laboratory automation, research, design verification/test, and manufacturing test. You can add sensor and high-voltage measurement capability to your device with SCC or SCXI signal conditioning modules. The included NI‑DAQmx driver and configuration utility simplify configuration and measurements.

Applications and Use Cases of PXI-6229

The PXI-6229 Multifunction DAQ Module is a multifunction data acquisition (DAQ) module for PXI systems. It integrates аналоговый вход, аналоговый выход, цифровой ввод-вывод и функции счетчика/таймера into a single module, making it a practical and flexible solution for test, measurement, monitoring, and control applications.

1. Универсальные системы сбора данных (DAQ)
PXI-6229 is widely used for collecting analog and digital signals from sensors, instruments, and electronic devices in laboratory, industrial, and engineering environments.

2. Измерение датчиками и преобразователями
It is suitable for measuring voltage, current, temperature, pressure, displacement, vibration, and other physical signals for monitoring and analysis purposes.

3. Промышленная автоматизация и управление технологическими процессами
With integrated analog and digital I/O, PXI-6229 is commonly used in process monitoring, actuator control, system feedback, and closed-loop automation applications.

4. Цифровой ввод-вывод и тестирование встраиваемых систем
Its digital I/O functionality makes it useful for testing embedded systems, logic circuits, relays, switches, and control interfaces.

5. Счетчики/Таймеры и приложения для обнаружения движения
The built-in counter/timer functions support encoder measurement, pulse generation, frequency measurement, event counting, and motion-related testing.

6. Аппаратно-программная имитация (HIL)
PXI-6229 is often used in HIL simulation systems where analog and digital signals are required to emulate real-world operating conditions and validate system performance.

7. Исследования, разработка и прототипирование
It is widely used in universities, R&D laboratories, and engineering teams for prototype development, validation, and flexible system testing.
