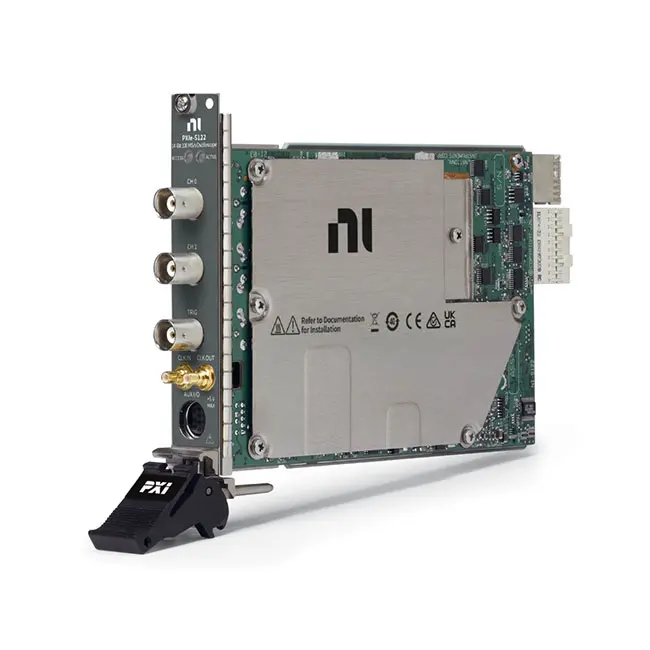

PXIe-5122

The PXIe-5122 is a high-resolution PXI Express digitizer developed by National Instruments for waveform acquisition, automated test, sensor analysis, and electronic validation. Combining 100 MS/s sampling speed with 14-bit resolution, the PXIe-5122 offers an excellent balance between speed and vertical accuracy.

Unlike lower-resolution oscilloscopes, the PXIe-5122 is optimized for applications where both signal fidelity and precise waveform capture are critical.

Typical applications include:

• Automated test equipment (ATE)
• Mixed-signal validation
• Power electronics analysis
• Sensor signal acquisition
• Transient event capture
• Industrial measurement
• Academic research
• Embedded system debugging

High-Speed Acquisition Architecture

The PXIe-5122 is designed for accurate waveform digitization.

Key specifications:

This architecture makes it suitable for both dynamic and precision measurements.

14-Bit Resolution Advantage

One of the key strengths of the PXIe-5122 is its 14-bit ADC.

Benefits:

Higher Vertical Accuracy

Better than standard 8-bit oscilloscopes.

Better Dynamic Range

Capture small signals in the presence of large signals.

Improved Signal Integrity

More accurate waveform reconstruction.

Lower Quantization Error

Better for detailed analysis.

Applications:

• Sensor analysis
• Analog circuit validation
• Power ripple measurement
• Transient detection

This makes it particularly useful for engineers who prioritize waveform quality.

100 MS/s Sampling Performance

The 100 MS/s sample rate allows the PXIe-5122 to capture:

• Fast transient signals
• Switching events
• Sensor dynamics
• Communication signals
• Pulse waveforms

Applications include:

Power Electronics

Capture switching transitions.

Industrial Control

Analyze PWM signals.

Sensor Validation

Measure fast analog sensor outputs.

Mixed-Signal Systems

Capture analog and digital interaction.

This makes it a versatile mid-range digitizer.

Automated Test Applications

The PXIe-5122 is widely used in ATE systems.

Common use cases:

Production Testing

Waveform capture for DUT validation.

Functional Verification

Measure analog outputs.

Signal Integrity Analysis

Validate high-speed analog interfaces.

Device Characterization

Test transient behavior and dynamic response.

Its PXI modular architecture allows integration with switching, RF, and DAQ modules.

Power Electronics and Industrial Measurement

The PXIe-5122 is commonly used in power applications.

Applications:

Switching Power Supplies

Measure ripple and transient behavior.

Motor Drives

Analyze PWM and feedback signals.

Inverter Validation

Capture DC bus and output waveforms.

Industrial Sensor Monitoring

Monitor analog feedback loops.

Its high resolution makes it particularly effective in noisy industrial environments.

NI Software Integration

The PXIe-5122 integrates with NI’s software ecosystem.

Supported software:

• LabVIEW
• NI-SCOPE
• LabVIEW FPGA
• Python
• C/C++
• .NET

Benefits:

• Fast automation development
• Trigger-based acquisition
• Deep waveform analysis
• Integrated PXI workflows

This improves productivity in test environments.

Multi-Module Synchronization

As part of PXI systems, the PXIe-5122 supports:

• Trigger bus synchronization
• Star trigger timing
• Multi-card coherent capture
• Shared clock reference

Benefits:

• Multi-channel expansion
• Synchronized waveform acquisition
• Larger distributed test systems
• Deterministic triggering

This makes it scalable for larger test platforms.

Comparison with Similar NI Digitizers

Compared with the PXIe-5160, the PXIe-5122 offers lower speed but higher cost efficiency for mid-frequency signals. Compared with the PXIe-5170R, it is easier to deploy for standard test automation.

Why Engineers Choose PXIe-5122

Engineers choose the PXIe-5122 for:

• Good speed-to-resolution balance
• Higher waveform fidelity
• Automated test integration
• Industrial signal analysis
• Power electronics validation
• Cost-effective PXI digitizing
• Reliable NI ecosystem support

It is a strong choice for general-purpose precision waveform capture.

Conclusion

The PXIe-5122 is a reliable and accurate 2-channel PXI digitizer for engineers needing balanced performance in waveform acquisition.

Its combination of:

• 100 MS/s sampling
• 14-bit resolution
• 100 MHz bandwidth
• Deep memory
• PXI synchronization
• NI-SCOPE integration
• Modular scalability

makes it an excellent solution for automated testing, power electronics analysis, industrial measurements, and advanced signal validation.
