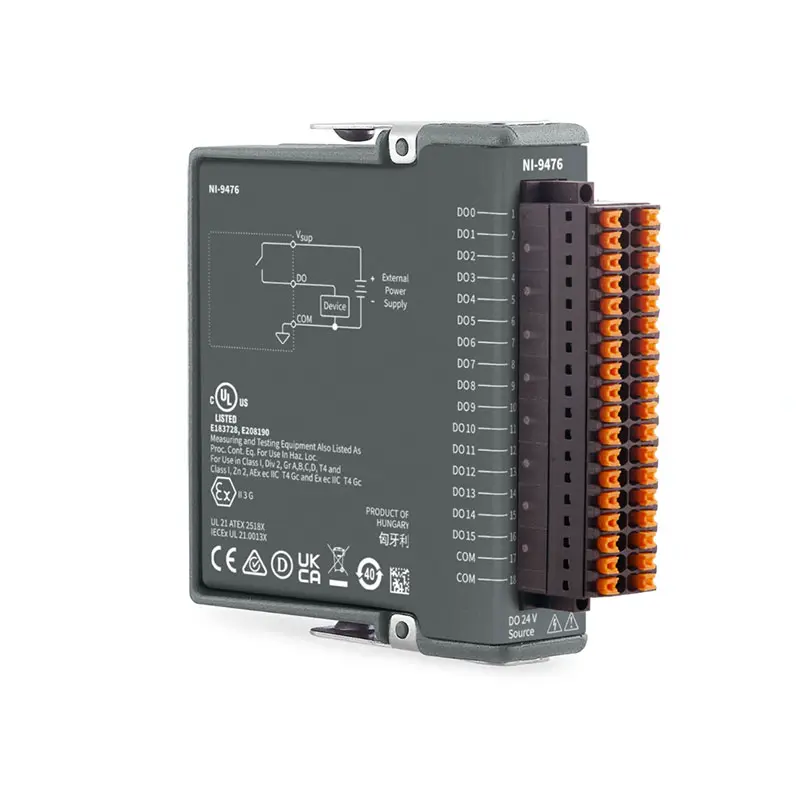

NI-9476

The NI-9476 is a high-density C Series digital output module designed for CompactRIO and CompactDAQ systems. It provides 32 sourcing digital output channels in a single module, making it ideal for industrial automation, machine control, manufacturing equipment, and large-scale digital control applications.

For engineers building systems with dozens of digital outputs, the NI-9476 significantly reduces cabinet space, wiring complexity, and system cost compared with using multiple lower-channel-count output modules.

Typical applications include:

• Factory automation
• PLC replacement systems
• Machine control
• Production lines
• Packaging equipment
• Semiconductor manufacturing
• Material handling systems
• Industrial IoT systems

High-Density Digital Output Architecture

The NI-9476 provides:

• 32 sourcing digital output channels
• 6 VDC to 36 VDC output range
• Solid-state transistor outputs
• FPGA direct connectivity
• Industrial isolation
• Compact high-density design

Key specifications include:

The 32-channel architecture allows a single module to replace multiple conventional digital output cards.

High-Density Machine Control

One of the biggest advantages of the NI-9476 is its ability to control a large number of field devices from a single CompactRIO slot.

Typical devices include:

Industrial Relays

Drive relay coils throughout machine control systems.

Indicator Lights

Control machine status lamps and stack lights.

Solenoid Valves

Operate pneumatic and process control equipment.

Contactors

Control motors and industrial power equipment.

PLC Interface Signals

Generate digital outputs to external controllers and automation equipment.

The NI-9476 is particularly useful when systems require dozens of outputs operating simultaneously.

FPGA Integration and Deterministic Control

The NI-9476 integrates directly with CompactRIO FPGA resources.

Engineers can implement:

• Deterministic output sequencing
• Machine synchronization
• Safety logic
• Trigger generation
• Production line automation
• Real-time machine control

Because outputs are controlled directly through FPGA hardware, the system can achieve deterministic response times not possible with conventional PLC architectures.

Typical FPGA applications include:

Packaging Equipment

Synchronize actuators and machine functions.

Industrial Robotics

Control robot peripherals and automation equipment.

Semiconductor Manufacturing

Coordinate complex manufacturing processes.

Automated Test Systems

Control fixtures, relays, and instrumentation.

Industrial Automation Applications

The NI-9476 is widely deployed in automation systems requiring a large number of outputs.

Common applications include:

Production Lines

Control conveyors, sensors, indicators, and actuators.

Material Handling Systems

Operate sorting equipment and transfer mechanisms.

Machine Builders

Reduce control cabinet size by consolidating outputs.

Smart Manufacturing

Support distributed automation and Industry 4.0 architectures.

Compared with traditional PLC expansion modules, the NI-9476 offers tighter integration with FPGA-based control systems.

Space-Saving Design

For many engineers, panel space is a major consideration.

Advantages of the NI-9476 include:

• 32 outputs in one module
• Reduced cabinet footprint
• Fewer expansion cards
• Simplified wiring
• Lower installation costs

For large automation projects, this can significantly reduce system complexity.

Isolation and Protection Features

The NI-9476 includes industrial-grade protection features.

Key protections include:

• Channel-to-earth isolation
• Short-circuit protection
• Overvoltage protection
• Industrial EMC compliance
• Hot-swap support

Benefits include:

• Increased reliability
• Better noise immunity
• Improved safety
• Reduced maintenance requirements

These protections help ensure reliable operation in demanding industrial environments.

CompactRIO and CompactDAQ Integration

The NI-9476 supports:

• CompactRIO Controllers
• CompactDAQ Chassis
• Distributed Automation Systems
• Industrial Control Platforms

Supported software includes:

• LabVIEW FPGA
• LabVIEW Real-Time
• NI-RIO Driver
• NI-DAQmx
• C/C++
• Python
• .NET

The module can easily be integrated into both new and existing NI-based control systems.

Rugged Industrial Design

The NI-9476 is designed for continuous industrial operation.

Industrial specifications include:

• Operating temperature: -40 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Shock resistance: 50 g
• Vibration resistance: 5 g RMS
• Industrial EMC compliance

Suitable environments include:

• Manufacturing plants
• Industrial machinery
• Transportation systems
• Semiconductor facilities
• Energy infrastructure
• Outdoor control cabinets

Application-Oriented Use Cases

Large Machine Control Systems

Control dozens of digital outputs from a single module.

Production Automation

Operate relays, indicators, and actuators across production lines.

Industrial Test Systems

Manage multiple outputs for test sequencing and automation.

Embedded Control Platforms

Implement FPGA-based digital output control with deterministic timing.

Comparison with Similar Modules

Compared with the NI-9474 and NI-9475, the NI-9476 provides four times the channel density, making it ideal for large automation systems. Compared with the NI-9478, it offers more channels but lower per-channel current capacity, making it better suited for signal-level and relay-driving applications rather than heavy-load control.

Why Engineers Choose the NI-9476

Engineers select the NI-9476 when they need:

• High channel density
• Reduced cabinet space
• FPGA-based control
• Reliable industrial outputs
• Simplified wiring architecture
• Scalable machine automation
• CompactRIO integration

It is particularly attractive for OEM machine builders and automation integrators designing systems with large numbers of digital outputs.

Conclusion

The NI-9476 is a high-density 32-channel sourcing digital output module designed for CompactRIO and CompactDAQ systems requiring large-scale digital control.

Its combination of:

• 32 digital output channels
• 6–36 VDC operation
• FPGA integration
• Industrial isolation
• Compact high-density design
• Rugged industrial reliability
• Simplified system architecture

makes it an excellent solution for factory automation, machine control, semiconductor equipment, production lines, industrial testing, and embedded industrial control applications.
