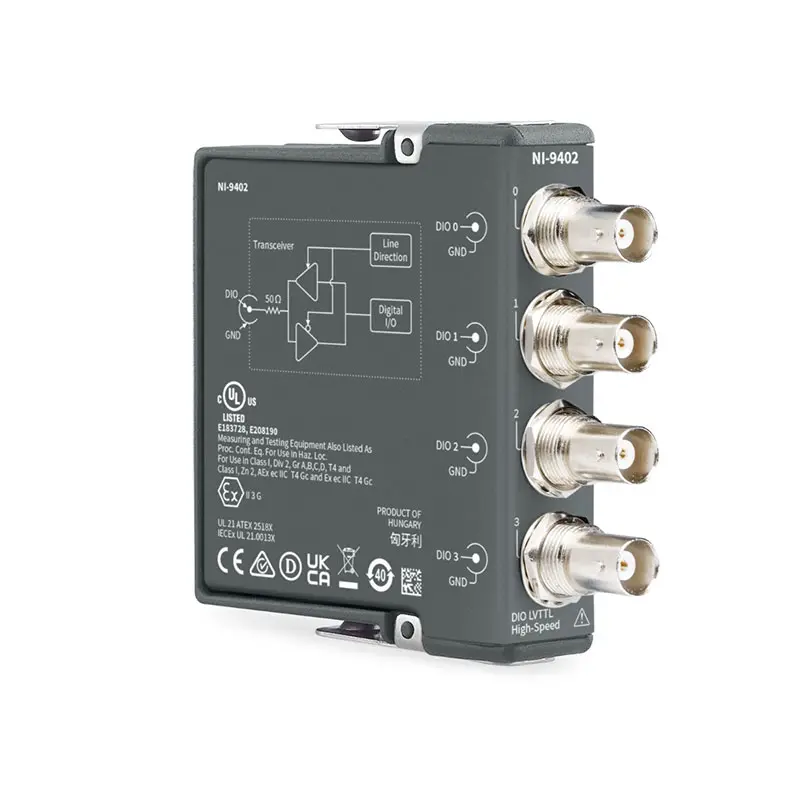

NI-9402

The NI-9402 is a specialized high-speed bidirectional digital I/O module designed for CompactRIO, Single-Board RIO, and FPGA-based embedded control systems. Unlike standard industrial digital modules such as the NI-9401 or NI-9403, the NI-9402 is optimized for high-speed LVTTL digital communication, making it ideal for custom digital protocols, FPGA signal processing, hardware synchronization, and advanced embedded applications.

The module provides direct access to FPGA resources, allowing engineers to implement hardware-timed digital interfaces with nanosecond-level precision.

Typical applications include:

• FPGA development
• High-speed digital communication
• Custom digital protocols
• Semiconductor test systems
• Embedded control systems
• Hardware synchronization
• Automated test equipment (ATE)
• Scientific instrumentation

High-Speed Digital I/O Architecture

The NI-9402 provides:

• 4 bidirectional digital channels
• LVTTL-compatible signaling
• FPGA direct connectivity
• Hardware-timed operation
• Deterministic digital control
• High-speed signal acquisition

Key specifications include:

Unlike conventional industrial digital modules, the NI-9402 is optimized for signal integrity and timing accuracy rather than high channel count.

FPGA-Centric Design

The primary strength of the NI-9402 is its direct FPGA integration.

Engineers can implement:

• Custom communication protocols
• Deterministic state machines
• High-speed triggering
• Pulse generation
• Signal synchronization
• Timing analysis
• Digital waveform generation
• Hardware-level control systems

Because signals are processed directly by FPGA hardware, latency is extremely low and timing precision is highly deterministic.

This architecture is ideal for applications where microsecond-level software timing is insufficient.

High-Speed Digital Communication

The NI-9402 is commonly used for implementing custom communication interfaces.

Supported applications include:

SPI Interfaces

Develop high-speed FPGA-based SPI communication.

UART Protocols

Create custom serial communication systems.

Proprietary Digital Protocols

Implement application-specific communication standards.

Instrument Synchronization

Synchronize multiple instruments and test systems.

Digital Handshaking

Exchange timing-critical control signals between devices.

Because the FPGA controls all timing, engineers have complete flexibility over communication behavior.

Semiconductor and Automated Test Applications

The NI-9402 is frequently used in advanced automated test systems.

Typical applications include:

Semiconductor Validation

Generate and capture digital signals during device testing.

IC Characterization

Perform timing analysis and functional verification.

Production Testing

Control test fixtures and synchronize instrumentation.

Research Laboratories

Develop custom digital interfaces for scientific experiments.

Its high-speed digital performance makes it a popular module in electronics validation environments.

Precision Timing and Synchronization

The NI-9402 is designed for deterministic digital timing.

Engineers can implement:

• Trigger distribution
• Clock synchronization
• Timing references
• Pulse generation
• Event synchronization
• Multi-device coordination

Applications include:

Machine Vision

Synchronize cameras and sensors.

Data Acquisition Systems

Coordinate measurement timing.

RF Test Platforms

Provide hardware-based timing signals.

Motion Systems

Generate deterministic synchronization signals.

Compared with standard digital I/O modules, the NI-9402 offers superior timing precision.

Signal Integrity Advantages

The NI-9402 uses SMB connectors and LVTTL signaling to support high-speed applications.

Benefits include:

• Improved signal integrity
• Reduced noise susceptibility
• High-frequency operation
• Reliable timing performance
• Accurate edge detection

These characteristics are important in:

• High-speed test systems
• FPGA development
• Digital communications
• Scientific instrumentation

The module is optimized for environments where digital signal quality directly impacts system performance.

CompactRIO and Embedded Integration

The NI-9402 supports:

• CompactRIO Controllers
• Single-Board RIO Platforms
• FPGA Embedded Systems
• Advanced Automation Platforms

Supported software includes:

• LabVIEW FPGA
• LabVIEW Real-Time
• NI-RIO Driver
• C/C++
• Python
• .NET

Engineers can rapidly develop custom hardware-timed digital systems using the NI FPGA ecosystem.

Rugged Industrial Design

The NI-9402 is built for demanding environments.

Industrial specifications include:

• Operating temperature: -40 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Shock resistance: 50 g
• Vibration resistance: 5 g RMS
• Industrial EMC compliance

Suitable deployment environments include:

• Industrial automation
• Semiconductor facilities
• Research laboratories
• Aerospace testing
• Defense systems
• Embedded control platforms

Application-Oriented Use Cases

FPGA Development

Implement custom hardware-timed digital interfaces.

Automated Test Equipment

Generate and capture digital signals with deterministic timing.

Semiconductor Testing

Perform validation and characterization of electronic devices.

Scientific Instrumentation

Create specialized synchronization and control systems.

Comparison with Similar Modules

Compared with the NI-9401, the NI-9402 focuses on signal integrity and high-speed LVTTL communication rather than channel count. Compared with the NI-9403, it provides fewer channels but significantly better performance for FPGA-based timing, synchronization, and digital protocol applications.

Why Engineers Choose the NI-9402

Engineers select the NI-9402 when they need:

• High-speed digital signaling
• FPGA-based protocol development
• Precise timing control
• Hardware synchronization
• Semiconductor testing capability
• Deterministic digital communication
• CompactRIO FPGA integration

It is particularly valuable in applications where digital timing accuracy is more important than channel density.

Conclusion

The NI-9402 is a specialized high-speed bidirectional digital I/O module designed for CompactRIO and FPGA-based systems requiring precise digital communication and deterministic timing.

Its combination of:

• High-speed LVTTL digital I/O
• FPGA direct connectivity
• Deterministic hardware timing
• Excellent signal integrity
• Custom protocol capability
• Compact embedded design
• Rugged industrial reliability

makes it an ideal solution for FPGA development, semiconductor testing, automated test equipment, machine synchronization, scientific instrumentation, and advanced embedded control applications.
