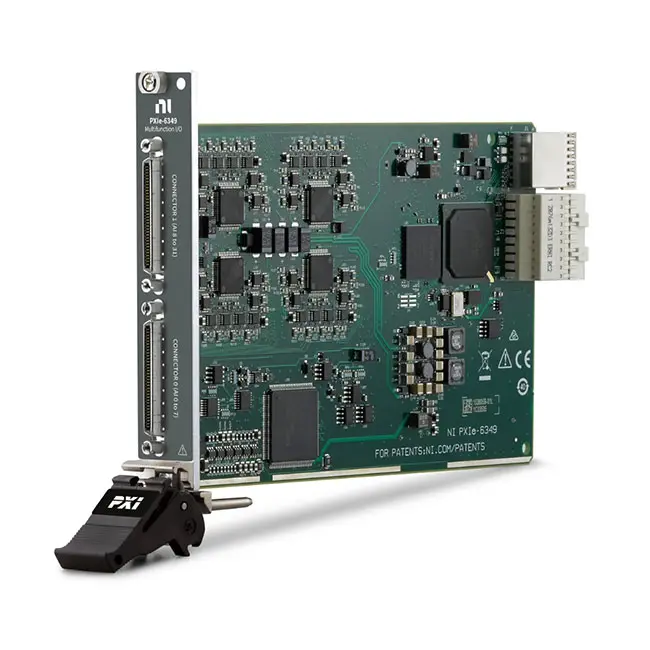

PXIe-6349

The PXIe-6349 offers analog I/O, digital I/O, and four 32-bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe-6349 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

Part Number(s): 785808-01

Applications and Use Cases of PXIe-6349

The PXIe-6349 Multifunction I/O Module is a multifunction data acquisition (DAQ) module for PXI Express systems. It integrates аналоговый вход, аналоговый выход, цифровой ввод-вывод и функции счетчика/таймера into a single compact module, making it an ideal solution for versatile test, measurement, automation, and control applications.

1. General-Purpose Data Acquisition
PXIe-6349 is widely used for acquiring analog and digital signals from sensors, instruments, and electronic devices in laboratory, industrial, and engineering environments.

2. Датчик и измерение сигнала
It is suitable for measuring various physical parameters such as voltage, current, temperature, pressure, displacement, and vibration, making it ideal for monitoring and analysis systems.

3. Промышленная автоматизация и управление технологическими процессами
With integrated analog and digital I/O, PXIe-6349 is commonly used for process monitoring, actuator control, system feedback, and closed-loop testing in industrial automation.

4. Цифровой ввод-вывод и тестирование встраиваемых систем
Its digital I/O capability makes it useful for testing logic circuits, embedded systems, relays, switches, and control interfaces in both development and production environments.

5. Счетчики/Таймеры и приложения для обнаружения движения
Встроенные функции счетчика/таймера поддерживают измерение с помощью энкодера, генерацию импульсов, подсчет событий, измерение частоты и тестирование, связанное с движением.

6. Аппаратно-программная имитация (HIL)
PXIe-6349 is often used in HIL simulation systems where analog and digital signals must be generated and acquired simultaneously to simulate real-world operating conditions.

7. Исследования, разработка и прототипирование
It is widely adopted in R&D laboratories, universities, and engineering teams for prototype development, validation, and experimental testing.
