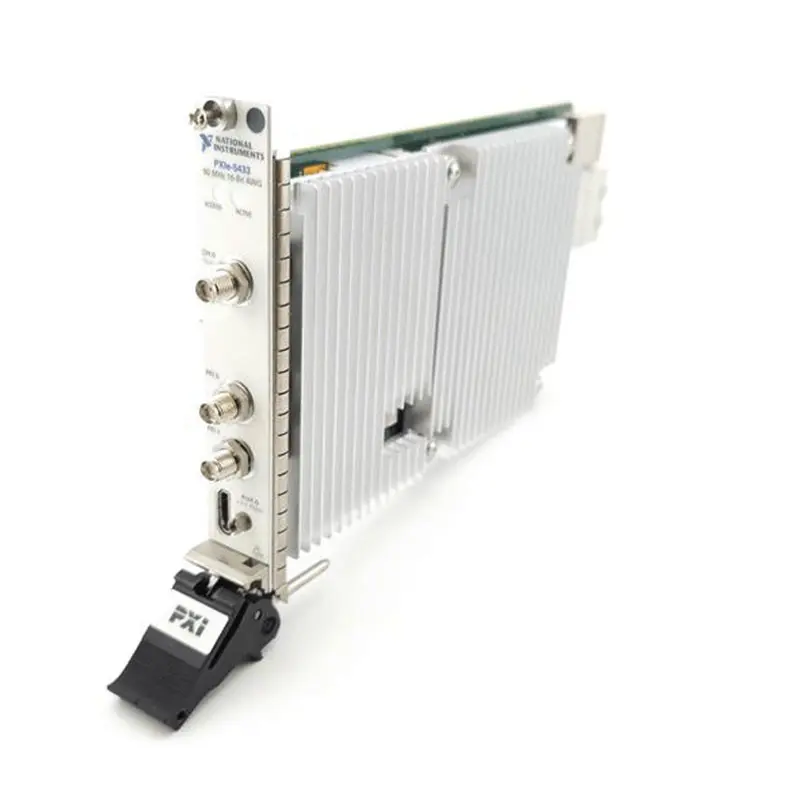

PXIe-5433

The PXIe-5433 is an 80 MHz arbitrary waveform generator capable of generating user-defined, arbitrary waveforms and standard functions including sine, square, triangle, and ramp. This arbitrary waveform generator can generate signals from -12 V to +12 V and uses a fractional resampling method to precisely generate waveforms. The PXIe-5433 also features advanced synchronization and generation features like waveform scripting and streaming.

Applications and Use Cases of PXIe-5433

The PXIe-5433 Arbitrary Waveform Generator is a PXI Express high-performance arbitrary waveform generator (AWG) предназначен для precision signal generation, wideband waveform output, and advanced system stimulation. Оно предлагает high sampling rates, excellent waveform fidelity, and flexible triggering, что делает его идеальным для demanding test and measurement applications.

1. High-Fidelity Arbitrary Waveform Generation
PXIe-5433 can generate complex, user-defined waveforms with high accuracy, enabling simulation of real-world signals.

2. Wideband Signal Generation
Supports high-speed waveform output for applications requiring wide bandwidth and fast signal transitions.

3. Communication System Testing
Used to generate modulated signals for testing wireless communication systems such as LTE, 5G, and custom protocols.

4. Тестирование возбуждения и отклика системы
Provides precise stimulus signals to analyze DUT behavior under controlled conditions.

5. Автоматизированное испытательное оборудование (АИО)
Integrated into advanced ATE systems for high-speed, high-precision signal generation and device validation.

6. Research & Advanced Prototyping
Used in laboratories for signal processing research, waveform design, and system development.

7. Промышленные и производственные испытания
Applied in manufacturing environments for consistent, repeatable signal generation in automated testing processes.
