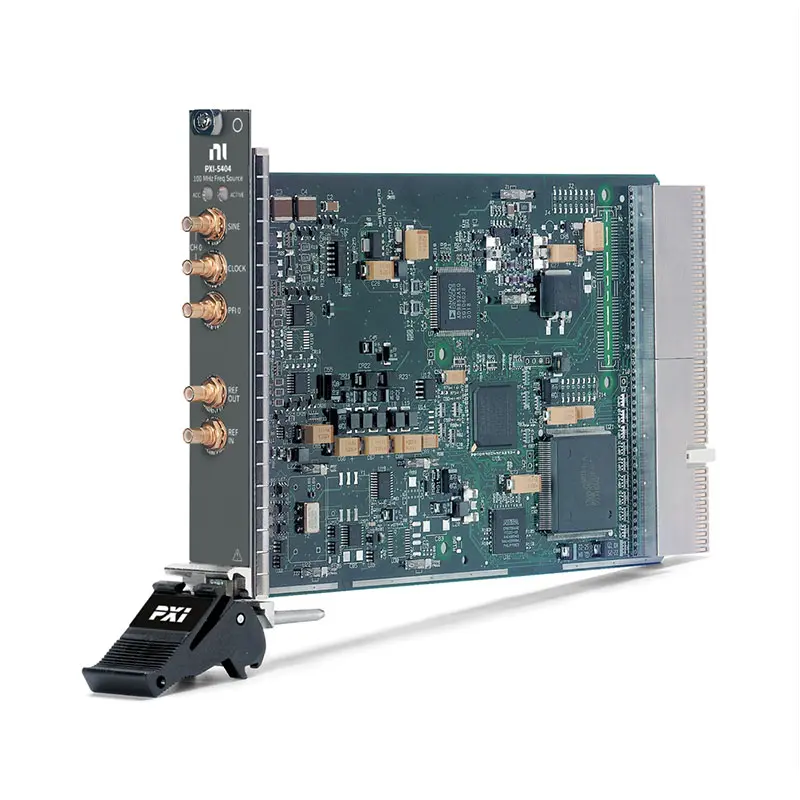

Земля ПХИ-5404 высокопроизводительный Arbitrary Waveform Generator (AWG) разработанный Национальные инструменты for automated test equipment (ATE), electronic design verification, sensor simulation, and laboratory signal generation.
The PXI-5404 enables engineers to generate standard function waveforms as well as custom arbitrary waveforms with high accuracy and repeatability. Its PXI architecture allows seamless synchronization with digitizers, oscilloscopes, switch modules, and RF instruments, making it ideal for fully automated test systems.
Типичные применения включают:
- Автоматизированное испытательное оборудование (АИО)
- Electronic circuit validation
- Sensor simulation
- Analog and mixed-signal testing
- Component characterization
- Laboratory research
- Промышленная автоматизация
- Educational laboratories
High-Speed Waveform Generation Architecture
The PXI-5404 is designed for flexible signal generation.
Ключевые характеристики:
| Спецификация | Ценность |
|---|---|
| Output Channels | 1 |
| Waveform Type | Arbitrary & Standard Functions |
| Разрешение | 16-битный |
| Maximum Update Rate | Up to 100 MS/s |
| Output Impedance | 50 Ω |
| Синхронизация | PXI Trigger & Reference Clock |
| Interface | PXI |
| Поддержка программного обеспечения | NI-FGEN |
This architecture provides stable and accurate waveform generation for a wide variety of applications.
Arbitrary Waveform Generation
The primary strength of the PXI-5404 is its ability to generate custom waveforms.
Supported waveforms include:
- Sine
- Square
- Triangle
- Ramp
- Pulse
- DC
- User-defined arbitrary waveforms
Преимущества:
Custom Signal Simulation
Generate application-specific waveforms.
Repeatable Testing
Ensure consistent DUT stimulation.
Complex Analog Signals
Support advanced electronic validation.
Flexible Programming
Create waveforms using software tools.
This flexibility makes the PXI-5404 suitable for both development and production testing.
High-Speed Signal Output
With an update rate of up to 100 MS/s, the PXI-5404 can generate dynamic analog signals for many applications.
Typical uses include:
Analog Circuit Testing
Stimulate amplifiers, filters, and converters.
Проверка смешанных сигналов
Drive analog inputs for digital systems.
Sensor Emulation
Simulate temperature, pressure, or position sensors.
Функциональное тестирование
Provide known reference signals for DUT testing.
Its high-speed output improves test efficiency and accuracy.
PXI Synchronization
The PXI-5404 fully supports PXI timing resources.
Преимущества:
Hardware Triggering
Precise waveform synchronization.
Shared Reference Clock
Maintain timing accuracy across instruments.
Multi-Instrument Coordination
Operate with digitizers, DMMs, and switch modules.
Automated Sequencing
Support deterministic production testing.
This makes it ideal for complex PXI test systems.
Automated Test Applications
The PXI-5404 is widely used in automated measurement environments.
Области применения включают:
Electronic Manufacturing
Functional testing of electronic assemblies.
Валидация полупроводников
Stimulate analog ICs and mixed-signal devices.
Аэрокосмическая и оборонная промышленность
Generate precision test signals.
Промышленная автоматизация
Simulate field sensor outputs.
Its programmable waveform capability reduces dependence on standalone function generators.
Software Integration
The PXI-5404 supports:
- NI-FGEN
- ЛабВью
- Тестовая стойка
- Питон
- C/C++
- .NET
Преимущества:
- Rapid waveform development
- Automated test sequencing
- Custom waveform libraries
- Easy integration with PXI systems
This shortens development time and improves automation efficiency.
Comparison with Similar NI Waveform Generators
| Модель | Основное различие | Наилучшее использование |
|---|---|---|
| PXI-5402 | Lower update rate | General waveform generation |
| ПХИ-5404 | 16-bit, 100 MS/s | Precision analog testing |
| PXIe-5413 | PXI Express, higher performance | High-speed automated systems |
| PXIe-5423 | Higher bandwidth | Advanced signal generation |
Compared with the PXI-5402, the PXI-5404 offers improved waveform quality and update performance. Compared with PXIe-5413, it is based on the PXI platform but remains a reliable solution for many automated test applications.
Why Engineers Choose PXI-5404
Engineers choose the PXI-5404 for:
- High-quality arbitrary waveform generation
- 16-bit output resolution
- 100 MS/s update rate
- PXI synchronization
- Automated testing support
- Analog and mixed-signal validation
- Excellent software integration
It is a trusted waveform generator for both laboratory and production environments.
Заключение
Земля ПХИ-5404 универсальный arbitrary waveform generator that delivers precise and programmable signal generation for automated test systems.
Его сочетание:
- 16-bit waveform resolution
- Up to 100 MS/s update rate
- Standard and arbitrary waveform support
- PXI synchronization
- NI-FGEN software integration
- Reliable signal quality
- Modular PXI scalability
makes it an excellent solution for electronic validation, semiconductor testing, sensor simulation, industrial automation, and laboratory research.
