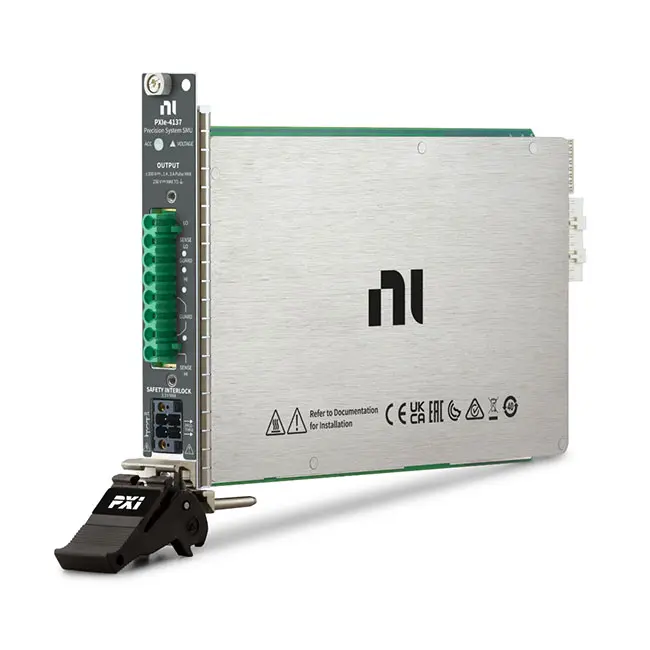

Земля NI PXIe-4137 is a high-precision, single-channel PXI Source Measure Unit (SMU) designed for sourcing and measuring voltage and current in semiconductor characterization, automated production test and laboratory applications.
It supports a voltage range of ±200 V, continuous current up to ±1 A and pulsed current up to ±3 A. With four-quadrant operation, 100 fA current sensitivity, high-speed acquisition and NI SourceAdapt technology, the PXIe-4137 combines precision measurement with programmable source response.
Key Features of the NI PXIe-4137
- Single-channel precision PXI Source Measure Unit
- ±200 V programmable voltage range
- ±1 A continuous DC current
- ±3 A extended-range pulsed current
- Up to 40 W DC source power, depending on configuration
- Up to 480 W pulsed power
- Four-quadrant source and sink operation
- 100 fA current sensitivity
- High-speed measurements up to 1.8 MS/s
- NI SourceAdapt programmable transient response
- Hardware-timed source sequencing
- Four-wire remote sensing
- One-slot 3U PXI Express form factor
PXIe-4137 Technical Specifications
| Product Model | PXIe-4137 |
|---|---|
| Product Type | Precision System PXI Source Measure Unit |
| Part Numbers | 783761-01 and 783761-02 |
| Number of SMU Channels | 1 |
| Operating Quadrants | Four-quadrant source and sink operation |
| Voltage Range | -200 V to +200 V |
| DC Current Range | -1 A to +1 A |
| Pulsed Current Range | -3 A to +3 A |
| Maximum DC Source Power | 20 W or 40 W, depending on configuration |
| Maximum DC Sink Power | 12 W or 40 W, depending on configuration |
| Maximum Pulsed Power | Up to 480 W |
| Current Sensitivity | 100 fA |
| Maximum Acquisition Rate | Up to 1.8 MS/s |
| Transient Response Control | NI SourceAdapt technology |
| Remote Sense | Four-wire remote sensing |
| Шинный интерфейс | PXI Express |
| Form Factor | 3U, one-slot PXI Express module |
| Dimensions | 2.0 cm × 13.0 cm × 21.6 cm |
| Weight | Approximately 419 g |
| Operating Temperature | 0°C to 55°C |
| Maximum Altitude | 2,000 m |
PXIe-4137 Part Numbers and Power Configurations
| Part Number | Конфигурация | Maximum DC Source Power | Maximum DC Sink Power | Product Status |
|---|---|---|---|---|
| 783761-01 | PXIe-4137 200 V System SMU with SourceAdapt | 20 W | 12 W | Active |
| 783761-02 | PXIe-4137 40 W System SMU with SourceAdapt | 40 W | 40 W | Active |
Both configurations provide ±200 V, ±1 A DC, ±3 A pulsed current, 100 fA sensitivity and SourceAdapt technology. Confirm the required DC source and sink power before selecting a part number.
Four-Quadrant Source and Measurement Operation
The PXIe-4137 can operate as both a source and an electronic load. It can source positive or negative voltage and source or sink current, providing four-quadrant operation for detailed current-voltage characterization.
This functionality allows the module to simulate batteries, power supplies and active loads while simultaneously measuring the electrical response of the device under test.
100 fA Low-Current Measurement Sensitivity
With current sensitivity down to 100 fA, the PXIe-4137 can measure very small leakage, standby and quiescent currents. This capability is useful when characterizing semiconductor devices that operate across a wide dynamic current range.
For the best low-current performance, use proper shielding, guarding, clean connectors, suitable cabling and an appropriate measurement aperture. Environmental noise, fixture contamination and cable leakage can affect femtoamp-level measurements.
±200 V and High-Power Output Capability
The ±200 V output range supports high-voltage semiconductor components, optical devices, protection devices and board-level circuits. The module can continuously source or measure up to ±1 A and generate pulsed currents up to ±3 A within its supported operating envelope.
Part number 783761-02 provides up to 40 W of continuous DC source and sink power. The extended pulsed operating region supports short-duration device tests requiring substantially higher instantaneous power.
High-Speed Measurements and Sequencing
The PXIe-4137 supports high-speed acquisitions at rates up to 1.8 MS/s. This allows engineers to capture transient current consumption, power-up behavior, pulsed device response and other dynamic characteristics that conventional precision measurements may miss.
Its hardware-timed sequencing engine can execute voltage or current sweeps without continuous software intervention. Multiple SMUs and other PXI instruments can be synchronized through PXI Express timing and trigger resources.
NI SourceAdapt Technology
SourceAdapt technology allows engineers to customize the PXIe-4137 control-loop response for the electrical characteristics of the DUT, test fixture and cabling.
Adjusting transient response can improve settling time and stability when testing capacitive, inductive or rapidly changing loads. This is particularly valuable for semiconductor devices whose load characteristics vary significantly between operating states.
Four-Wire Remote Sensing
Four-wire remote sensing compensates for voltage drops across output cables and fixture connections. Separate sense connections measure voltage directly at the DUT, allowing the SMU to regulate the programmed voltage more accurately at the test point.
Remote sensing is recommended for higher-current measurements, long test cables and applications where connection resistance could materially affect voltage accuracy.
Typical PXIe-4137 Applications
- Semiconductor current-voltage characterization
- IC, PMIC and RFIC testing
- Leakage and quiescent-current measurement
- High-voltage device characterization
- LED and laser diode testing
- Optical transceiver testing
- Power-management circuit validation
- Board-level functional testing
- Automated semiconductor production test
- Reliability and life-cycle testing
- Laboratory research and device characterization
Software and Driver Support
The PXIe-4137 is controlled using the NI-DCPower instrument driver. Engineers can configure voltage and current source modes, output limits, measurement apertures, source delays, triggering, sequencing and SourceAdapt settings.
Compatible software environments include NI LabVIEW, InstrumentStudio, TestStand, LabWindows/CVI, C/C++, .NET and supported Python workflows. Verify driver, operating-system and application-software compatibility before integrating the module into an existing PXI system.
PXI Chassis and System Integration
The PXIe-4137 occupies one PXI Express peripheral slot and requires a compatible PXI Express chassis and controller. The chassis must provide sufficient slot power and cooling for the selected power configuration.
System planning should also include the correct connector kit, backshell, high-voltage wiring, test fixture, interlocks and DUT protection. Review voltage, current, power and environmental limits before operating the module.
PXIe-4137 Troubleshooting
Why does the PXIe-4137 enter compliance?
The DUT may be drawing more current or voltage than the programmed limit allows. Confirm the compliance settings, selected range, wiring and expected DUT behavior before increasing a limit.
Why are low-current measurements unstable?
Use guarded and shielded connections, clean the fixture and connectors, increase the measurement aperture and reduce nearby electrical interference. Cable leakage and contaminated insulation can significantly affect femtoamp-level measurements.
Why does the output oscillate or settle slowly?
The default source response may not be optimized for the DUT capacitance, inductance or test-cable characteristics. Adjust the SourceAdapt settings to improve stability and settling performance.
Why is the voltage at the DUT lower than the programmed value?
Check whether the SMU is operating in current compliance and inspect the resistance of the output wiring. Use four-wire remote sensing to compensate for voltage drops between the module and DUT.
Why is the full output power unavailable?
Verify the PXIe-4137 part number, chassis cooling, operating region and configured voltage-current combination. The 783761-01 and 783761-02 versions have different continuous source and sink power ratings.
PXIe-4137 Comparison with Similar PXI SMUs
| Модель | Каналы | Voltage Range | DC Current | Current Sensitivity | SourceAdapt |
|---|---|---|---|---|---|
| PXIe-4137 | 1 | ±200 V | ±1 A | 100 fA | Да |
| PXIe-4136 | 1 | ±200 V | ±1 A | 1 pA | No |
| PXIe-4138 | 1 | ±60 V | ±3 A | 1 pA | No |
| PXIe-4147 | 4 | ±8 V | ±3 A | 100 fA | Да |
Recommended Related Products
- NI PXIe-4136 System SMU – provides the same ±200 V and ±1 A DC ranges for applications that do not require 100 fA sensitivity or SourceAdapt.
- NI PXIe-4138 System SMU – recommended for applications requiring up to ±3 A continuous current over a lower ±60 V range.
- NI PXIe-4147 Precision SMU – provides four ±8 V, ±3 A channels for high-pin-count and multichannel semiconductor testing.
- NI PXIe-6571 Digital Pattern Instrument – adds digital pattern generation and comparison to semiconductor test systems.
- NI PXI and PXI Express Modules – browse additional modules for building an integrated automated test platform.
How to Select the Correct PXIe-4137 Configuration
Select part number 783761-01 when the application requires ±200 V operation with up to 20 W source power and 12 W sink power. Choose 783761-02 when the DUT requires up to 40 W of continuous source or sink power.
Before ordering, confirm the required voltage, continuous and pulsed current, source and sink power, low-current sensitivity, chassis compatibility, cooling capacity and connection accessories.
Why Choose the NI PXIe-4137?
The PXIe-4137 combines high voltage, high power, femtoamp-level current sensitivity and high-speed acquisition in a single-slot PXI Express module. SourceAdapt technology and hardware-timed sequencing make it suitable for both detailed laboratory characterization and high-throughput automated production testing.
Frequently Asked Questions
What is the voltage range of the PXIe-4137?
The PXIe-4137 can source and measure voltage from -200 V to +200 V.
What is its maximum current?
It supports up to ±1 A of continuous DC current and up to ±3 A of pulsed current within the specified operating envelope.
What is the current sensitivity?
The PXIe-4137 provides current sensitivity down to 100 fA for precision leakage and low-current measurements.
What is the maximum sampling rate?
The module supports high-speed acquisitions at rates up to 1.8 MS/s.
Does the PXIe-4137 support SourceAdapt?
Yes. SourceAdapt allows the SMU transient response to be adjusted for improved speed and stability with different DUT loads.
What is the difference between 783761-01 and 783761-02?
Part number 783761-01 provides up to 20 W source power and 12 W sink power. Part number 783761-02 is the higher-power configuration and provides up to 40 W of DC source and sink power.
Can the PXIe-4137 operate without a PXI chassis?
No. It requires a compatible PXI Express chassis, controller, NI-DCPower driver and appropriate connection accessories.
Is the PXIe-4137 an active NI product?
Yes. Both listed PXIe-4137 configurations are currently classified by NI as active products.
