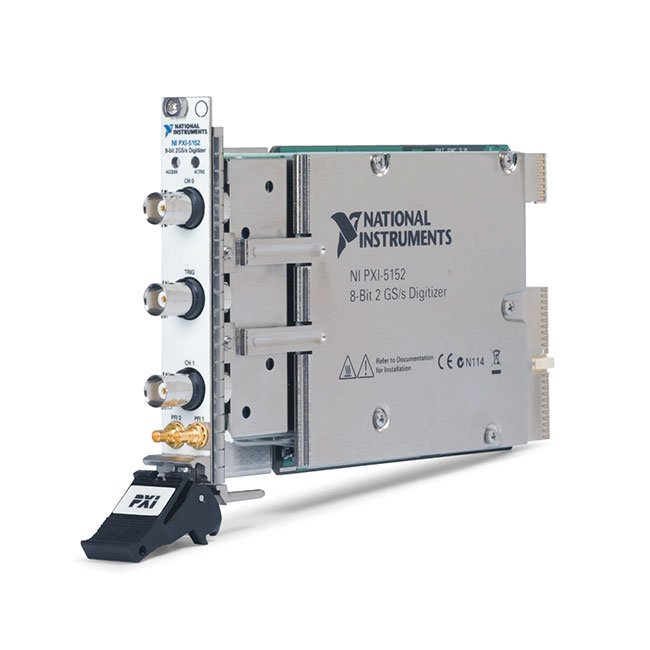

PXI-5152 2 GS/s 300 MHz 8-Bit PXI Oscilloscope
Земля NI PXI-5152 is a high-speed two-channel PXI oscilloscope and waveform digitizer designed for communications testing, fast transient acquisition, automated electronic validation and scientific measurements. It provides 8-bit vertical resolution, analog bandwidth up to 300 MHz and simultaneous real-time sampling at up to 1 GS/s on both channels.
When one channel is enabled, time-interleaved sampling increases the real-time sampling rate to 2 GS/s. For stable repetitive signals, random-interleaved sampling provides effective rates up to 20 GS/s. The PXI-5152 also offers selectable 50 Ω or 1 MΩ inputs, 100 mVpp to 10 Vpp ranges, advanced triggering and deep onboard memory.
Key Features of the PXI-5152
- Two simultaneously sampled analog input channels
- 8-bit vertical resolution
- 1 GS/s real-time sampling on both channels
- 2 GS/s real-time sampling in single-channel TIS mode
- Up to 20 GS/s random-interleaved sampling for repetitive signals
- 300 MHz analog input bandwidth
- Input ranges from 100 mVpp to 10 Vpp
- 50 Ω or 1 MΩ selectable input impedance
- AC, DC and ground coupling
- Programmable vertical offset
- Software-selectable 20 MHz noise filter
- 8 MB, 64 MB or 256 MB memory per channel
- Single-record and multiple-record acquisition
- Pretrigger and post-trigger waveform capture
- Edge, window, hysteresis and digital triggering
- External trigger and programmable function I/O
- Channel-to-channel skew below 100 ps
- PXI Star Trigger and backplane trigger support
- NI-TClk multimodule synchronization
- Built-in self-calibration
- NI-SCOPE software support
PXI-5152 Technical Specifications
| Product Model | PXI-5152 |
|---|---|
| Product Type | High-speed PXI oscilloscope and digitizer |
| Analog Input Channels | 2 |
| Vertical Resolution | 8 bits |
| Two-Channel Real-Time Sample Rate | Up to 1 GS/s per channel, simultaneously sampled |
| Single-Channel Real-Time Sample Rate | 2 GS/s using time-interleaved sampling |
| Random-Interleaved Sample Rate | 2 GS/s to 20 GS/s for repetitive signals |
| Maximum Analog Bandwidth | 300 MHz on most input ranges |
| 100 mV Range Bandwidth | Reduced bandwidth compared with larger ranges |
| Input Type | Referenced single-ended |
| Input Impedance | 50 Ω or 1 MΩ |
| 1 MΩ Input Capacitance | Approximately 22 pF |
| Input Voltage Ranges | 100 mVpp, 200 mVpp, 400 mVpp, 1 Vpp, 2 Vpp, 4 Vpp and 10 Vpp |
| Input Coupling | AC, DC or ground |
| AC-Coupling Cutoff, 1 MΩ | Approximately 12 Hz |
| AC-Coupling Cutoff, 50 Ω | Approximately 106 kHz |
| Maximum 50 Ω Input | 7 Vrms with peaks not exceeding 10 V |
| Maximum 1 MΩ Input | Peak voltage not exceeding 42 V |
| Bandwidth-Limit Filter | 20 MHz noise filter |
| Typical Effective Number of Bits | Up to approximately 7.3 bits with noise filter enabled |
| Channel-to-Channel Skew | Less than 100 ps |
| Onboard Memory Options | 8 MB, 64 MB or 256 MB per channel |
| Minimum Record Length | 1 sample |
| Maximum Number of Records | Up to 100,000, depending on memory configuration |
| Analog Trigger Types | Edge, window and hysteresis |
| Digital Trigger Sources | PXI trigger lines, PXI Star Trigger and front-panel PFI |
| Typical Trigger Jitter | 10 ps RMS |
| Analog Input Connectors | 2 × BNC |
| External Trigger Connector | 1 × BNC |
| PFI Connectors | 2 × SMB |
| Self-Calibration | Gain, offset, triggering and timing calibration |
| External Calibration Interval | 2 years |
| Recommended Warm-Up Time | 15 minutes |
| Software Driver | NI-SCOPE |
| Шинный интерфейс | PXI; compatible with supported PXI Express hybrid slots |
| Module Format | 3U PXI module |
| Maximum Power Consumption | Approximately 21.65 W |
| Operating Temperature | 0°C to 55°C |
PXI-5152 Part Numbers and Memory Options
| Product Configuration | Part Number | Onboard Memory |
|---|---|---|
| PXI-5152 Standard Memory | 779772-01 | 8 MB per channel |
| PXI-5152 Extended Memory | 779772-02 | 64 MB per channel |
| PXI-5152 Deep Memory | 779772-03 | 256 MB per channel |
| 50 Ω BNC Cable | Configuration dependent | Coaxial cable for high-speed impedance-matched measurements |
| Passive Oscilloscope Probe | Configuration dependent | Probe for high-impedance general-purpose measurements |
| SMB Trigger Cable | Configuration dependent | Cable for PFI triggering and external timing connections |
The three PXI-5152 versions provide the same principal channel count, sampling rate, resolution and bandwidth. Their primary difference is the amount of onboard acquisition memory installed for each channel.
Dual 1 GS/s Simultaneous Inputs
With both channels enabled, each input samples at up to 1 GS/s. The simultaneous architecture preserves phase and timing relationships between the two measured signals.
This is useful for comparing device input and output signals, measuring propagation delay, analyzing differential timing and capturing related transient events.
2 GS/s Single-Channel Sampling
When only one channel is required, the PXI-5152 combines its ADC resources in time-interleaved sampling mode to provide a real-time rate of 2 GS/s.
TIS mode is appropriate for nonrepetitive high-speed events because it captures the waveform in a single occurrence. Confirm the selected channel and mode in NI-SCOPE before configuring a 2 GS/s acquisition.
20 GS/s Random-Interleaved Sampling
For stable repetitive signals, random-interleaved sampling provides effective sample rates from 2 GS/s to 20 GS/s. The module combines samples from repeated waveform cycles to create finer time spacing.
RIS should not be used for single-shot, modulated or changing events because it assumes that successive waveform repetitions are substantially identical.
300 MHz Analog Bandwidth
The PXI-5152 provides at least 300 MHz bandwidth on most input ranges, with higher typical bandwidth on the 50 Ω signal path. This supports high-speed digital signals, communications waveforms, pulses and fast electronic transients.
The smallest 100 mVpp range has reduced bandwidth. Check the range-specific specification when both maximum sensitivity and maximum frequency response are required.
8-Bit Vertical Resolution
The ADC provides 256 theoretical amplitude levels across the selected range. Its architecture prioritizes high-speed waveform capture and precise timing rather than very-high-resolution DC measurement.
Selecting the smallest range that safely contains the waveform improves amplitude sensitivity. Allow margin for noise, DC offset, overshoot and ringing.
Input Ranges from 100 mVpp to 10 Vpp
The PXI-5152 offers seven ranges from 100 mVpp to 10 Vpp. Each channel can be configured independently according to its signal amplitude.
Programmable offset allows a smaller input range to be positioned around a nonzero voltage, improving the visibility of ripple or transient behavior on a DC level.
50 Ω Input Impedance
The 50 Ω path is optimized for impedance-matched signal generators, RF-style sources and high-speed coaxial measurement systems. Matching the source, cable and digitizer reduces reflections.
Observe the lower overload limits of the terminated input. Excessive voltage can activate protection or permanently damage the internal termination.
1 MΩ Input Impedance
The 1 MΩ path reduces loading on high-impedance circuits and supports conventional passive oscilloscope probes. Its approximately 22 pF input capacitance affects loading at higher frequencies.
Use a compensated probe with a short ground connection to minimize ringing, pickup and distortion.
AC, DC and Ground Coupling
DC coupling preserves the complete waveform, including its DC level. AC coupling blocks the DC component and helps measure ripple or noise on top of a larger DC voltage.
The low-frequency cutoff is approximately 12 Hz in 1 MΩ mode and significantly higher in 50 Ω mode. Ground coupling provides an internal baseline reference.
20 MHz Noise Filter
A software-selectable 20 MHz bandwidth filter reduces broadband noise when high-frequency content is not required. It can improve effective resolution and measurement stability for lower-frequency signals.
Disable the filter when capturing fast edges or signal components above 20 MHz.
Deep Onboard Memory
The PXI-5152 is available with 8 MB, 64 MB or 256 MB of memory per channel. Deep memory permits longer waveform records at high sampling rates.
In 2 GS/s single-channel TIS mode, the memory is used by the active channel. In conventional real-time or RIS operation, memory is available independently to the enabled channels.
Multiple-Record Acquisition
Multiple-record mode captures separate waveform segments associated with individual trigger events. Hardware rearming prepares the digitizer rapidly for each subsequent event.
The 64 MB and 256 MB configurations can store up to 100,000 records under supported record-length conditions.
Pretrigger and Post-Trigger Acquisition
Pretrigger data shows signal behavior before the trigger condition, while post-trigger samples capture what happens afterward. The trigger can be positioned anywhere within the supported record.
This is useful for diagnosing intermittent faults and identifying events that occurred immediately before a threshold crossing or failure.
Advanced Analog Triggering
Edge triggering starts an acquisition when a signal crosses a selected voltage level. Window triggering detects when a signal enters or exits a defined band, while hysteresis improves stability for noisy transitions.
The external trigger input provides AC or DC coupling and a high-impedance connection for external trigger signals.
Digital Triggering and PFI
Digital trigger sources include PXI trigger lines, the PXI Star Trigger and front-panel PFI connections. The two PFI connectors can be configured for trigger input, event output and other timing functions.
PFI outputs can indicate the start or end of an acquisition, end of a record or another supported instrument event.
Low Trigger Jitter
Typical trigger jitter is approximately 10 ps RMS, with a specified maximum of 20 ps RMS under supported conditions. Low jitter improves the repeatability of high-speed edge and timing measurements.
Total system timing uncertainty also includes sample-clock jitter, signal noise, trigger slew rate and synchronization error.
PXI and NI-TClk Synchronization
The PXI-5152 can use PXI trigger lines, the Star Trigger and the PXI reference clock for coordination with other modules. NI-TClk technology aligns compatible instruments for phase-coherent acquisition.
Multiple PXI-5152 modules can be combined to create higher-channel-count systems while maintaining subnanosecond timing relationships.
Built-In Self-Calibration
Software-controlled self-calibration compensates for gain, offset, triggering and timing errors at the current operating temperature. A 15-minute warm-up period is recommended.
External calibration adjusts the internal timing and voltage references. NI recommends a two-year external calibration interval.
Communications Testing
The 300 MHz bandwidth and 50 Ω input path support baseband, intermediate-frequency and communications waveform acquisition. Software can calculate spectral content, power, timing and modulation-related parameters.
For measurements requiring higher dynamic range or onboard digital downconversion, consider a dedicated communications digitizer such as the PXI-5142 or PXIe-5622.
High-Speed Digital Testing
The PXI-5152 can capture clock signals, pulse trains and other digital waveforms for rise-time, fall-time, overshoot, ringing and propagation-delay analysis.
Use controlled-impedance connections and appropriate probes because the measurement fixture can significantly affect fast signal edges.
Radar and Pulsed-Signal Acquisition
Deep memory, multiple-record acquisition and rapid trigger rearming make the PXI-5152 useful for capturing radar, sonar and other pulsed events.
Instead of storing inactive time between pulses, multiple-record mode retains only the waveform region surrounding each trigger.
Power Electronics Testing
The module can acquire gate-drive, control, isolated voltage-probe and current-sensor signals from converters, inverters and motor-control systems.
Because the inputs are referenced to chassis ground, appropriate differential probes or isolated transducers are required for floating or high-voltage measurements.
Scientific and Research Measurements
The PXI-5152 can acquire detector outputs, optical pulses, ultrasonic waveforms and other fast experimental signals. Its deep memory supports long records or large numbers of events.
External timing inputs can synchronize the acquisition with a laser, pulser, mechanical system or other experimental hardware.
Automated Production Testing
NI-SCOPE enables software-defined waveform measurements for production systems. Test programs can calculate amplitude, frequency, rise time, pulse width and other parameters automatically.
PXI synchronization coordinates the digitizer with signal generators, switches and digital instruments to improve throughput and repeatability.
NI-SCOPE Software Support
The PXI-5152 is controlled through the IVI-compliant NI-SCOPE driver. NI-SCOPE provides functions for configuring ranges, coupling, impedance, sampling, triggering, memory and synchronization.
The driver supports LabVIEW, LabWindows/CVI, Measurement Studio and compatible C, C++ and .NET environments. The NI-SCOPE soft front panel provides interactive control and waveform display.
Typical PXI-5152 Applications
- High-speed transient acquisition
- Automated oscilloscope measurements
- Communications waveform testing
- High-speed digital validation
- Pulse and timing analysis
- Radar and sonar testing
- Power electronics measurements
- Aerospace and defense validation
- Scientific research
- Ultrasonic signal acquisition
- Consumer electronics testing
- Production functional testing
- Multiple-record event capture
- Synchronized mixed-signal testing
- High-channel-count PXI acquisition systems
PXI-5152 Troubleshooting
The PXI-5152 is not detected in NI MAX
Confirm that the module is fully installed in a compatible PXI or PXI Express hybrid slot. Check chassis power, controller communication and NI-SCOPE installation, then restart NI Measurement & Automation Explorer.
The maximum rate is only 1 GS/s
With both channels enabled, the maximum rate is 1 GS/s per channel. Disable the unused channel and enable time-interleaved sampling to acquire one channel at 2 GS/s.
The acquired waveform is clipped
Select a larger input range or adjust the vertical offset. Verify that the complete signal, including DC offset, noise and overshoot, remains within the configured range.
The measured amplitude is incorrect
Check input impedance and source termination. A generator calibrated for a 50 Ω load can produce approximately twice its indicated open-circuit voltage when connected to a 1 MΩ input.
The signal contains reflections
Use 50 Ω coaxial cables and matching termination for high-frequency sources. Remove unterminated branches and minimize adapters or fixture discontinuities.
RIS produces an unstable waveform
Random-interleaved sampling requires a stable repetitive signal. Use 1 GS/s dual-channel or 2 GS/s single-channel real-time acquisition for nonrepetitive events.
The trigger is unstable
Review the trigger source, level, slope, coupling and hysteresis. Confirm that the trigger signal crosses the threshold with sufficient slew rate.
The 100 mV range does not reach 300 MHz
The smallest input range has reduced analog bandwidth. Select a larger range or add an appropriate external low-noise amplifier when both sensitivity and bandwidth are required.
Multiple modules are not synchronized
Confirm that all modules share the same reference clock and trigger source. Configure the NI-TClk group, clock master and trigger routing correctly.
PXI-5152 Comparison with Similar PXI Oscilloscopes
| Модель | Primary Configuration | Best Suited For |
|---|---|---|
| PXI-5114 | 2 channels, 8-bit, 250 MS/s, 125 MHz | General-purpose high-speed PXI waveform acquisition |
| PXI-5124 | 2 channels, 12-bit, 200 MS/s, 150 MHz | Improved amplitude resolution with moderate bandwidth |
| PXI-5142 | 2 channels, 14-bit, 100 MS/s, 100 MHz with onboard DDC | Communications and complex I/Q measurements |
| PXI-5152 | 2 channels, 8-bit, 1 GS/s dual-channel or 2 GS/s single-channel, 300 MHz | Fast transient, pulse and communications waveform capture |
| PXI-5153 | 2 channels, 8-bit, higher bandwidth and sampling capability | Faster signals requiring additional bandwidth |
| PXIe-5160 | 2 channels, 10-bit, 2.5 GS/s, 500 MHz | Modern PXI Express systems requiring higher resolution and bandwidth |
PXI-5152 vs PXI-5124
The PXI-5152 provides substantially higher sampling speed and bandwidth, with 1 GS/s per channel, 2 GS/s in single-channel mode and 300 MHz bandwidth. The PXI-5124 provides higher 12-bit resolution but is limited to 200 MS/s and 150 MHz.
Choose the PXI-5152 for faster transient and timing measurements. Select the PXI-5124 when amplitude resolution is more important than maximum speed.
PXI-5152 vs PXI-5142
The PXI-5152 offers higher sampling speed and bandwidth with 8-bit resolution. The PXI-5142 provides 14-bit resolution, 100 MS/s sampling and onboard digital downconversion.
Select the PXI-5152 for broadband waveform and pulse acquisition. Choose the PXI-5142 for narrowband communications, high-dynamic-range and complex I/Q measurements.
PXI-5152 vs PXIe-5160
The PXIe-5160 provides 10-bit resolution, 2.5 GS/s simultaneous sampling and approximately 500 MHz bandwidth through a PXI Express interface. The PXI-5152 provides 8-bit resolution and 300 MHz bandwidth through a conventional PXI interface.
Choose the PXI-5152 for maintaining existing PXI systems. Consider the PXIe-5160 for newer systems requiring improved resolution, bandwidth and backplane throughput.
Recommended Related Products
- PXI-5114 250 MS/s PXI Oscilloscope
- PXI-5124 12-Bit 200 MS/s Digitizer
- PXI-5142 14-Bit Communications Digitizer
- PXI-5153 High-Speed PXI Oscilloscope
- PXI-5154 High-Speed PXI Oscilloscope
- PXIe-5160 2.5 GS/s PXI Express Oscilloscope
- PXIe-5162 High-Speed PXI Express Oscilloscope
- View More NI PXI Oscilloscopes and Digitizers
Selecting the Right PXI Oscilloscope
Choose the PXI-5152 when the application requires two 1 GS/s channels, 2 GS/s single-channel capture, 300 MHz bandwidth and deep acquisition memory. It is well suited for timing, pulse, communications and fast transient measurements.
Select a 12-bit or 14-bit digitizer when amplitude resolution and dynamic range are more important. Consider a newer PXI Express oscilloscope when additional bandwidth, resolution or sustained streaming performance is required.
Choose the 8 MB version for shorter records, the 64 MB version for medium-length acquisitions and the 256 MB version for long captures or large multiple-record tests.
Why Choose the PXI-5152?
- Provides two simultaneous 1 GS/s input channels
- Supports 2 GS/s single-channel real-time sampling
- Offers 20 GS/s RIS for repetitive signals
- Provides up to 300 MHz analog bandwidth
- Supports 50 Ω and 1 MΩ signal sources
- Offers input ranges from 100 mVpp to 10 Vpp
- Provides up to 256 MB memory per channel
- Supports low-jitter analog and digital triggering
- Provides PXI and NI-TClk synchronization
- Integrates with NI-SCOPE and LabVIEW
Frequently Asked Questions
What is the PXI-5152?
The PXI-5152 is a two-channel, 8-bit PXI oscilloscope with 300 MHz bandwidth, 1 GS/s simultaneous sampling per channel and 2 GS/s single-channel real-time sampling.
Can both channels sample at 2 GS/s?
No. With both channels enabled, the maximum rate is 1 GS/s per channel. The 2 GS/s real-time rate is available in single-channel time-interleaved mode.
What is the maximum equivalent-time sampling rate?
Random-interleaved sampling provides effective rates up to 20 GS/s for stable repetitive signals.
What is the analog bandwidth?
The maximum analog bandwidth is 300 MHz on most input ranges. The 100 mVpp range has reduced bandwidth.
What input ranges are available?
The module provides full-scale input ranges from 100 mVpp to 10 Vpp.
Which input impedances are supported?
Each channel supports software-selectable 50 Ω or 1 MΩ input impedance.
Which part number has 8 MB per channel?
Part number 779772-01 provides 8 MB of onboard memory per channel.
Which part number has 64 MB per channel?
Part number 779772-02 provides 64 MB of onboard memory per channel.
Which part number has 256 MB per channel?
Part number 779772-03 provides 256 MB of onboard memory per channel.
Can multiple PXI-5152 modules be synchronized?
Yes. Multiple compatible modules can share PXI clocks and triggers through NI-TClk synchronization.
Which driver controls the PXI-5152?
The PXI-5152 is controlled through the NI-SCOPE instrument driver.
Can the PXI-5152 operate in a PXI Express chassis?
Yes. It can operate in a compatible PXI Express hybrid peripheral slot, but not in a PXI Express-only slot without the hybrid connector.
Request a Quote for the PXI-5152
Contact us for current availability, memory configuration, product condition, calibration status, lead time and project pricing for the PXI-5152 2 GS/s 300 MHz 8-Bit PXI Oscilloscope. We can also help identify compatible probes, BNC cables, PXI chassis, controllers and related high-speed digitizers.
