PCI-8513

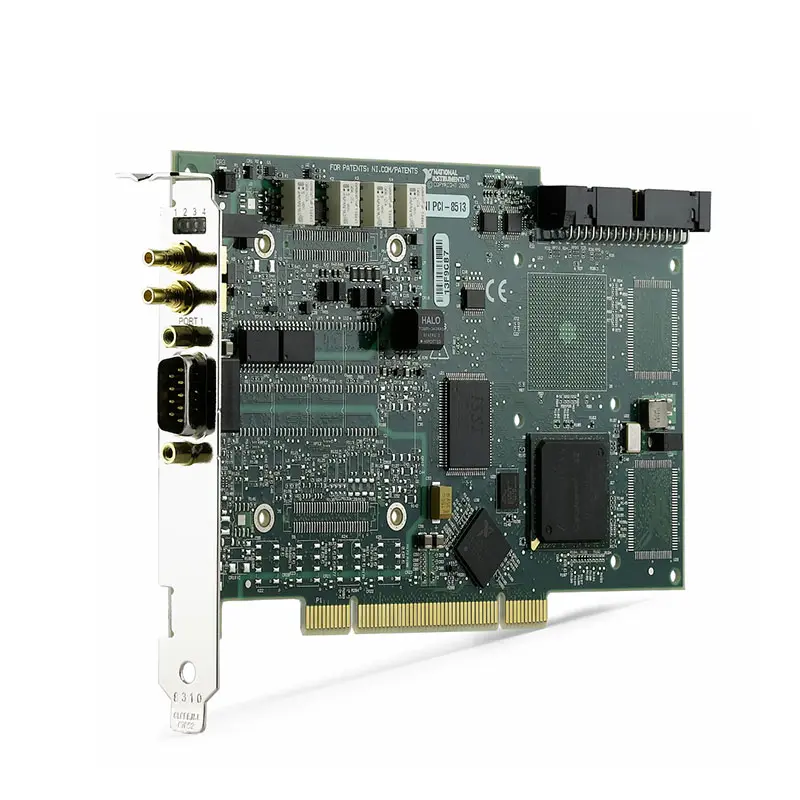

Земля PCI-8513 является PCI CAN Interface Device от Национальные инструменты, designed for CAN communication, automotive network testing, hardware-in-the-loop simulation, rapid control prototyping, and industrial automation systems. As a software-selectable CAN / CAN FD interface, the NI PCI-8513 works with the NI-XNET driver and provides flexible CAN physical layer options for high-speed CAN FD, low-speed/fault-tolerant CAN, single-wire CAN, and external transceiver applications. NI lists the PCI-8513 with part numbers 780684-01 и 780684-02.

Земля NI PCI-8513 is suitable for applications that require real-time and high-speed manipulation of CAN frames and signals. It is commonly used in automotive ECU testing, CAN bus monitoring, device communication, vehicle network validation, hardware-in-the-loop systems, and automation control. With NI-XNET support, engineers can develop CAN communication applications, configure CAN databases, transmit and receive frames, and analyze CAN signals in test and validation environments.

Одно из главных преимуществ PCI-8513 CAN Interface Device is its software-selectable physical layer support. NI-XNET software-selectable CAN interfaces include onboard transceivers for high-speed/FD CAN, low-speed/fault-tolerant CAN, и single-wire CAN, as well as support for external transceivers. This flexibility makes the PCI-8513 useful for users who need to work with different CAN network types without changing hardware.

Земля National Instruments PCI-8513 is available in 1-port or 2-port configurations. The PCI-8513 is designed to handle demanding CAN communication workloads, including the real-time manipulation of hundreds of CAN frames and signals. NI highlights that the device-driven DMA engine allows the onboard processor to move CAN frames and signals between the interface and user program without relying on CPU interrupts, which helps reduce host CPU load and improve system responsiveness.

For hardware connectivity, the PCI-8513 uses a 9-pin male D-SUB connector for CAN bus connection. Technical listings describe the PCI-8513 as supporting transceivers such as TJA1054A, TJA1041, и AU5790, with CAN physical layer options for software-selectable/FD operation. The device also provides trigger and clock line support, which is useful for synchronizing CAN communication with other measurement or control hardware.

Земля NI PCI-8513 is especially useful for test systems that need deterministic CAN communication, accurate timing, and integration with other NI measurement hardware. It can be used with LabVIEW, NI-XNET, and related NI software tools to build CAN monitoring, ECU communication, control validation, and automated test applications. Compared with simpler CAN interfaces, the PCI-8513 provides greater flexibility for systems that need to switch between multiple CAN physical layers or work with CAN FD communication.

В целом, NI PCI-8513 PCI CAN Interface Device is a flexible CAN interface solution for engineers who need CAN FD support, software-selectable physical layers, NI-XNET integration, and reliable real-time CAN communication. With 1- or 2-port configurations, support for high-speed/FD, low-speed/fault-tolerant, and single-wire CAN, onboard transceivers, DMA-based data transfer, and PCI platform compatibility, the PCI-8513 is well suited for automotive testing, HIL simulation, rapid control prototyping, industrial automation, and CAN network validation.
