Product Introduction

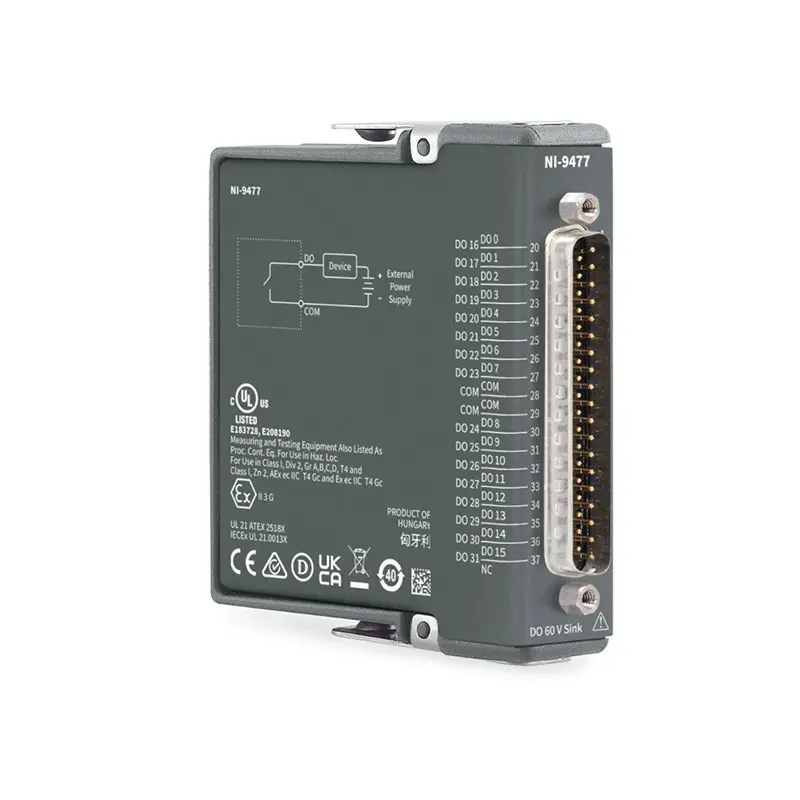

Земля NI-9477 is a 32-channel C Series digital output module designed for industrial control, machine automation, actuator control, and distributed I/O applications. It provides high-density digital output capability with 60 VDC sinking outputs for controlling industrial loads, relays, solenoids, valves, and other field devices.
Designed for CompactDAQ and CompactRIO platforms, the NI-9477 combines robust industrial output performance, channel-to-earth isolation, and flexible deployment options for demanding automation and control systems.
Product Overview
Земля NI-9477 belongs to the NI C Series digital output module family and provides 32 independent digital output channels in a compact form factor. Each channel can drive industrial loads using sinking output logic, making it suitable for interfacing with external power supplies and industrial equipment.
The module supports high-voltage DC output applications with built-in protection features and isolation between field signals and the system chassis. It can be installed in CompactDAQ chassis for data acquisition applications or CompactRIO controllers for deterministic embedded control.
Key Features
32 Digital Output Channels
The NI-9477 provides high-density digital output capability for industrial automation systems.
- 32 independent digital output channels
- Single-channel control capability
- High-density industrial I/O
- Suitable for relay and actuator control
- Compact C Series design
Advantage: Reduces hardware requirements by controlling multiple field devices from one module.
60 VDC Sinking Outputs
The module provides high-voltage sinking outputs for industrial equipment control.
- 60 VDC maximum output voltage
- Sinking output configuration
- Compatible with industrial loads
- External supply powered outputs
- Reliable switching performance
Advantage: Supports direct connection to many industrial devices without additional output interfaces.
High Current Drive Capability
The NI-9477 provides sufficient output current for controlling industrial loads.
- Up to 1 A per channel
- Multiple channel operation
- Industrial actuator control
- Relay and solenoid switching
- Motor control applications
Advantage: Allows direct control of higher-power industrial devices.
Channel-to-Earth Isolation
Electrical isolation improves system reliability and protects measurement hardware.
- Изоляция канала от земли
- Improved noise immunity
- Reduced ground loop problems
- Protection from field wiring conditions
- Industrial environment compatibility
Advantage: Provides safer and more reliable operation in industrial installations.
Industrial Protection Features
The NI-9477 includes protection functions for reliable field operation.
- Защита от перенапряжения
- Short-circuit protection
- Thermal protection
- Reverse voltage protection
- Industrial-grade design
Advantage: Improves system uptime and reduces risk of output damage.
Compact C Series Architecture
The NI-9477 integrates into modular CompactDAQ and CompactRIO systems.
- C Series modular format
- Hot-swappable capability in CompactDAQ
- Flexible chassis expansion
- Mixed I/O system support
- Industrial deployment ready
Advantage: Enables customized automation systems combining digital, analog, communication, and control modules.
Technical Specifications
| Параметр | Описание |
|---|---|
| Product Type | C Series Digital Output Module |
| Number of Channels | 32 Цифровых выхода |
| Тип вывода | Sinking Digital Output |
| Maximum Output Voltage | 60 В постоянного тока |
| Maximum Current per Channel | 1 A |
| Output Logic | Active Drive Low |
| Изоляция | Channel-to-Earth Isolation |
| Output Protection | Overvoltage, Overcurrent, Thermal Protection |
| Supported Platforms | CompactDAQ and CompactRIO |
| Тип разъема | Весенний терминал |
| Driver | НИ-DAQmx |
| Programming Support | LabVIEW, FlexLogger, Python, C/C++, C#, .NET |
Software Ecosystem
The NI-9477 integrates with NI software platforms for industrial automation, control, and testing applications.
- NI-DAQmx: Provides digital output configuration, timing, and programming functions.
- LabVIEW: Enables graphical control and automation application development.
- FlexLogger: Supports configuration-based monitoring and control applications.
- NI MAX: Provides hardware configuration and diagnostics.
- Python, C/C++, C#, .NET: Supports custom industrial control software development.
Industries
- Промышленная автоматизация
- Factory Equipment Control
- Machine Building
- Automotive Manufacturing
- Энергетические системы
- Process Control
- Робототехника
- Исследовательские лаборатории
Applications
Industrial Machine Control
The NI-9477 provides reliable digital output control for automated machinery.
- Valve control
- Relay switching
- Actuator control
- Machine sequencing
Automated Test Equipment
Digital outputs can control fixtures and external devices during automated testing.
- Test fixture control
- Equipment triggering
- Production automation
- Functional testing
Автоматизация процессов
The module supports industrial process control applications.
- Pump control
- Solenoid operation
- Alarm outputs
- Industrial interlocks
Встроенные системы управления
Combined with CompactRIO controllers, the NI-9477 supports deterministic embedded control.
- Управление машиной в реальном времени
- Distributed I/O systems
- Remote automation
- Industrial monitoring
Comparison with Similar Products
| Модель | Основное различие | Best Application |
|---|---|---|
| NI-9477 | 32-channel 60 VDC sinking digital output module with high current capability. | Industrial actuator and load control |
| НИ-9478 | High-performance digital output module designed for industrial switching applications. | Distributed industrial control |
| NI-9472 | 8-channel sourcing digital output module for industrial control applications. | Compact actuator control |
| NI-9474 | 32-channel sourcing digital output module for high-density control systems. | High-channel digital control |
Recommended Related Products
| NI cRIO-9056 | CompactRIO controller supporting C Series digital output modules. |
| NI cDAQ-9185 | Ethernet CompactDAQ chassis for distributed industrial I/O systems. |
| НИ-9478 | Digital output module for industrial automation and control applications. |
| NI-9881 | CAN communication module for CompactRIO industrial networks. |
Why Choose NI-9477?
- 32-channel digital output capability
- 60 VDC sinking output support
- High current drive capability
- Изоляция канала от земли
- Industrial protection features
- Compact C Series architecture
- Compatible with CompactDAQ and CompactRIO
- Ideal for actuator and machine control
- Supported by NI-DAQmx and LabVIEW
Frequently Asked Questions
What type of outputs does NI-9477 provide?
The NI-9477 provides 32 sinking digital output channels with support for up to 60 VDC industrial loads.
Can NI-9477 control industrial devices directly?
Yes. The module is designed for controlling industrial loads such as relays, solenoids, valves, and actuators when used with appropriate external power supplies.
Which systems support NI-9477?
The NI-9477 is compatible with CompactDAQ and CompactRIO platforms and works with NI-DAQmx and NI software environments.
Заключение
Земля NI-9477 32-channel C Series digital output module provides high-density industrial control capability with 60 VDC sinking outputs, isolation, protection features, and CompactDAQ/CompactRIO compatibility. It is an ideal solution for machine automation, actuator control, industrial testing, and embedded control applications requiring reliable digital output performance.
