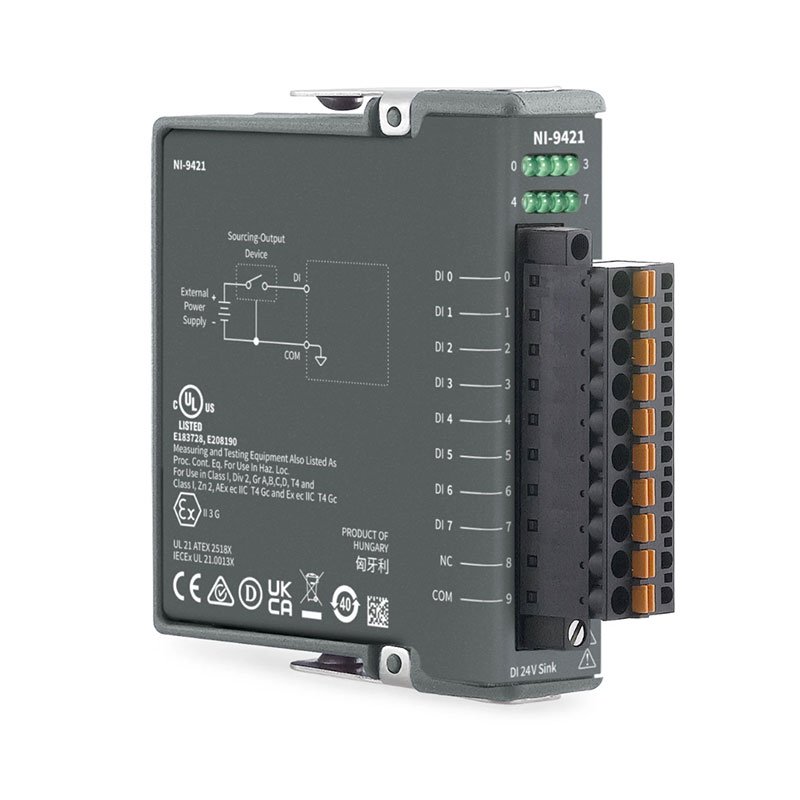

NI-9421 8-Channel 24 V Sinking Digital Input Module
Земля NI-9421 is an eight-channel C Series digital input module designed to monitor 12 V and 24 V industrial logic signals. It connects directly to switches, proximity sensors, transducers and controller outputs commonly found in automation and machine-monitoring systems.
Each channel uses a sinking-input architecture and includes a front-panel status indicator. A maximum input delay of 100 µs provides noise rejection while remaining fast enough for general industrial state monitoring and event detection.
Key Features of the NI-9421
- Eight digital input channels
- Sinking-input architecture
- Compatible with 12 V and 24 V logic
- 11 V to 30 V defined ON state
- 5 V or lower defined OFF state
- 100 µs maximum input delay
- 10 kHz maximum clock rate
- 7 mA maximum internally limited input current
- Individual channel-status LEDs
- Channel-to-earth-ground isolation
- Screw-terminal, spring-terminal and D-Sub versions
- -40°C to 70°C operating range
- Compatible with CompactDAQ and CompactRIO
NI-9421 Technical Specifications
| Product Model | NI-9421 |
|---|---|
| Product Type | Цифровой входной модуль серии C |
| Number of Channels | 8 digital inputs |
| Input Type | Sinking |
| Supported Logic Levels | 12 V and 24 V industrial logic |
| OFF-State Voltage | 5 V or lower |
| ON-State Voltage | 11 V to 30 V |
| Maximum Input Current | 7 mA, internally limited |
| Maximum Input Voltage | 40 V overvoltage protection |
| Reverse-Biased Voltage | -30 V maximum |
| Maximum Input Delay | 100 µs |
| Maximum Clock Rate | 10 kHz |
| Channel-to-Channel Isolation | Ничего |
| Channel-to-Earth Isolation | Connector-version dependent |
| Operating Temperature | -40°C to 70°C |
| Ingress Protection | IP40 |
Sinking Digital Input Architecture
A sinking input detects current supplied by an external sourcing device. The connected field sensor or controller output must provide the positive voltage that drives the NI-9421 input into its ON state.
Before wiring, confirm whether the sensor uses a sourcing or sinking output. A sinking-output sensor generally requires a different input architecture or additional interface circuitry.
Industrial Logic Thresholds
The module identifies an input at 5 V or lower as OFF and an input from 11 V to 30 V as ON. Voltages between these regions are not valid guaranteed logic states and should be avoided during normal operation.
Input Filtering
The 100 µs input delay filters short transients and contact noise. It is suitable for industrial switches and sensors but should not be selected for signals that require substantially faster edge detection.
NI-9421 Part Number and Accessories
| Part Number | Версия |
|---|---|
| 779136-01 | D-Sub version |
| 779136-02 | Conformal-coated D-Sub version |
| 779002-01 | Screw-terminal version |
| 783734-01 | Spring-terminal version with NI-9980 plug |
| 192568-01 | SH25F-25M shielded D-Sub cable, 1 m |
| NI-9980 | 10-position spring-terminal plug |
The safety isolation rating differs between terminal and D-Sub versions. Confirm the connector, environmental coating and measurement-category requirements before selecting an ordering number.
NI-9421 Applications
- Proximity sensor monitoring
- Limit-switch detection
- Pushbutton and selector-switch monitoring
- PLC output monitoring
- Machine-state acquisition
- Alarm and interlock monitoring
- Valve-position feedback
- Production-line counting
- Industrial test fixtures
- CompactRIO control systems
Machine-State Monitoring
The NI-9421 can monitor door switches, limit sensors, contactors and other discrete status signals. Channel LEDs provide immediate confirmation of the commanded logic state during setup and maintenance.
CompactRIO Control
In a CompactRIO system, input states can be processed by a real-time controller or supported FPGA interface. Response timing depends on the selected software mode and chassis.
NI-9421 Installation Workflow
Step 1: Confirm the Signal Type
Verify that the field device supplies a compatible sourcing output between 11 V and 30 V when active.
Step 2: Install the Module
Power down the system as required and insert the NI-9421 into a supported CompactDAQ or CompactRIO slot.
Step 3: Connect COM
Connect the field-supply reference to COM and connect the individual sensor outputs to DI0 through DI7.
Step 4: Configure the Software
Create the digital input channels using NI-DAQmx or the applicable CompactRIO programming interface.
Step 5: Verify Every Input
Activate each field device individually and confirm that the channel LED and software state change together.
NI-9421 Troubleshooting
An input always remains OFF
Measure the voltage between DI and COM. Confirm that the active signal reaches at least 11 V and that the sensor has the correct sourcing-output type.
An input always remains ON
Check for leakage current, incorrect wiring or a short to the positive supply. Verify that the inactive voltage falls to 5 V or lower.
The input changes unexpectedly
Inspect grounding, cable shielding and routing near motors or contactors. A floating COM connection can cause unreliable detection.
Fast pulses are missed
The NI-9421 has a 100 µs maximum input delay and a 10 kHz maximum clock specification. Use a faster module such as the NI-9423 when shorter pulses must be detected.
NI-9421 Comparison
| Модель | Конфигурация | Best Suited For |
|---|---|---|
| NI-9421 | 8 sinking inputs, 100 µs | General 24 V industrial monitoring |
| NI-9423 | 8 high-speed sinking inputs | Faster pulse and event detection |
| NI-9425 | 32 sinking inputs | Higher channel-density systems |
| NI-9437 | 8 high-voltage sinking inputs | 24 VDC to 250 VDC monitoring |
| NI-9472 | 8 sourcing outputs | Controlling rather than monitoring field devices |
NI-9421 Frequently Asked Questions
How many inputs does the NI-9421 provide?
It provides eight sinking digital input channels.
What voltage represents an ON state?
An input voltage from 11 V to 30 V is recognized as ON.
Are the channels isolated from one another?
No. The channels share the COM reference, but the input bank is isolated from earth ground according to the connector version.
Can it read a dry contact?
Yes, when the dry contact is wired with a compatible external DC supply to apply the required voltage to the input.
Which connectors are available?
D-Sub, screw-terminal and spring-terminal versions are available.
