Product Introduction

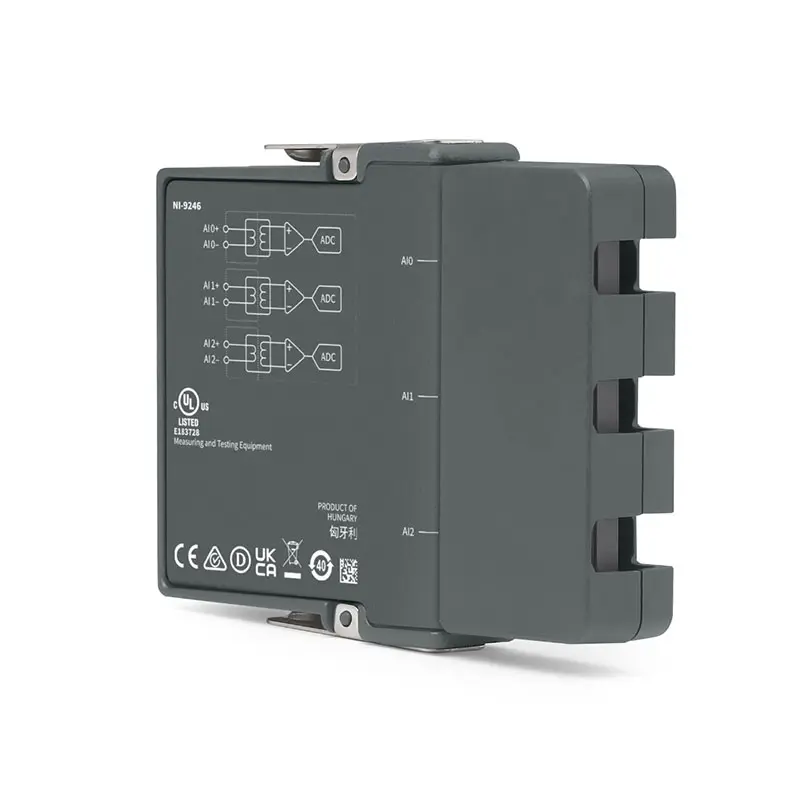

Земля NI-9246 is a C Series current input module designed for high-accuracy AC current measurement, power monitoring, energy analysis, and electrical test applications. It provides three simultaneously sampled current input channels for direct measurement of high-current signals in CompactRIO and CompactDAQ systems.
Featuring 24-bit resolution, up to 20 A RMS current measurement, simultaneous sampling, and channel-to-earth isolation, the NI-9246 provides a robust measurement solution for three-phase power systems, industrial equipment monitoring, power quality analysis, and electrical validation.
Product Overview
Земля NI-9246 belongs to the NI C Series current measurement module family and is optimized for direct current measurements in electrical power applications.
The three-channel architecture makes the NI-9246 particularly suitable for three-phase electrical systems. Its simultaneous sampling capability allows engineers to maintain accurate timing relationships among multiple current channels when performing power and energy calculations.
Combined with CompactRIO or CompactDAQ hardware and NI measurement software, the NI-9246 can be integrated into scalable systems for power monitoring, electrical equipment validation, energy research, and industrial data acquisition.
Key Features
3-Channel Current Measurement
The NI-9246 provides three current input channels designed for electrical and power measurement applications.
- 3 current input channels
- Direct current measurement
- Three-phase system monitoring
- Multi-channel electrical acquisition
- Power and energy measurements
Advantage: The three-channel configuration is well suited for monitoring current in three-phase electrical systems.
20 A RMS Current Input
The NI-9246 supports direct measurement of current signals up to 20 A RMS.
- Up to 20 A RMS measurement
- Direct high-current acquisition
- Industrial load monitoring
- Motor current measurement
- Power system testing
Advantage: Allows direct current measurement in many applications without requiring external current-to-voltage signal conditioning.
24-Bit High-Resolution Measurement
The NI-9246 uses 24-bit analog-to-digital conversion for accurate electrical measurements.
- 24-битное разрешение АЦП
- High measurement precision
- Detailed current waveform acquisition
- Stable measurement performance
- High-quality electrical data
Advantage: Provides the measurement resolution required for detailed power and energy analysis.
Simultaneous Sampling
The NI-9246 simultaneously acquires signals across its current measurement channels.
- Simultaneous channel sampling
- Synchronized current acquisition
- Accurate phase relationships
- Three-phase waveform measurement
- Power analysis support
Advantage: Preserves timing relationships between channels for accurate multi-phase electrical measurements.
Electrical Isolation
The NI-9246 incorporates isolation designed for demanding electrical measurement environments.
- Изоляция канала от земли
- Improved measurement safety
- Industrial system protection
- Reduced ground-related interference
- Reliable electrical measurements
Advantage: Helps protect the measurement system while improving reliability in electrically demanding applications.
C Series Modular Architecture
The NI-9246 uses the modular NI C Series platform for flexible system integration.
- CompactRIO compatibility
- CompactDAQ compatibility
- Modular I/O architecture
- Scalable measurement systems
- Flexible system configuration
Advantage: Enables the current measurement module to be combined with voltage, temperature, digital I/O, and other C Series modules in one system.
NI Software Integration
The NI-9246 integrates with NI software and driver environments for configuration, acquisition, analysis, and automation.
- NI-DAQmx support with compatible hardware
- Интеграция LabVIEW
- NI MAX configuration
- Automated data acquisition
- Custom measurement application development
Advantage: Simplifies the development of power monitoring and electrical test applications.
Technical Specifications
| Параметр | Описание |
|---|---|
| Product Type | C Series Current Input Module |
| Input Channels | 3 Current Input Channels |
| Диапазон измерения | Up to 20 A RMS |
| Разрешение | 24-бит |
| Sampling | Simultaneous Sampling |
| Тип измерения | Current Measurement |
| Изоляция | Channel-to-Earth Isolation |
| Platform | NI C Series |
| System Compatibility | CompactRIO and CompactDAQ |
| Primary Applications | Power Monitoring, Energy Measurement, Electrical Testing |
Software Ecosystem
The NI-9246 can be integrated with NI software platforms to create automated electrical measurement and monitoring systems.
- NI-DAQmx: Provides configuration and data acquisition support when used with compatible CompactDAQ and CompactRIO hardware.
- LabVIEW: Enables development of custom current measurement, power monitoring, and automated test applications.
- NI MAX: Supports compatible hardware configuration, testing, and diagnostics.
- NI CompactRIO: Enables real-time and FPGA-based measurement and control applications.
- NI CompactDAQ: Provides modular PC-based data acquisition for laboratory and automated measurement systems.
Industries
- Power and Energy
- Промышленная автоматизация
- Electrical Equipment Manufacturing
- Automotive and EV Testing
- Renewable Energy
- Аэрокосмическая и оборонная промышленность
- Исследовательские лаборатории
- Power Electronics
Applications
Three-Phase Power Measurement
The three current channels of the NI-9246 make it suitable for measuring current in three-phase electrical systems.
- Three-phase current monitoring
- Power system characterization
- Industrial electrical analysis
- Energy consumption measurement
Motor and Drive Testing
The NI-9246 can acquire current waveforms from motors, drives, and other industrial electrical equipment.
- Motor current monitoring
- Drive system validation
- Electrical load testing
- Диагностика оборудования
Power Electronics Validation
The module can be integrated into automated test systems for electrical and power electronics development.
- Inverter testing
- Power converter validation
- UPS testing
- Electrical component characterization
Energy Monitoring
The NI-9246 provides current measurement capability for distributed and continuous energy monitoring systems.
- Energy consumption monitoring
- Industrial power monitoring
- Renewable energy systems
- Electrical system diagnostics
Automotive and EV Testing
The NI-9246 can be used in automotive electrical and electric vehicle test platforms requiring synchronized current measurements.
- EV component testing
- Electrical subsystem validation
- Power consumption measurement
- Automotive power electronics testing
Comparison with Similar C Series Modules
| Модель | Основное различие | Best Application |
|---|---|---|
| NI-9246 | 3-channel current input module supporting direct measurements up to 20 A RMS. | Three-phase power and high-current measurement |
| NI-9247 | C Series current input module designed for current transformer-based electrical measurements. | Power monitoring with external current transformers |
| NI-9225 | High-voltage C Series analog input module designed for direct voltage measurements. | Power and electrical voltage measurement |
| NI-9239 | 24-bit analog input module designed for high-accuracy voltage acquisition. | Precision voltage measurement |
Recommended Related Products
| NI-9225 | High-voltage analog input module that can complement the NI-9246 in power measurement systems requiring synchronized voltage and current acquisition. |
| NI-9247 | Current input module for electrical measurement applications using current transformers. |
| NI-9239 | High-resolution voltage input module for precision electrical and industrial measurements. |
| NI cRIO-9039 | CompactRIO controller for real-time industrial measurement, monitoring, and control systems. |
Why Choose NI-9246?
- 3-channel direct current measurement
- Up to 20 A RMS input capability
- 24-bit measurement resolution
- Simultaneous sampling architecture
- Suitable for three-phase electrical systems
- Electrical isolation for demanding applications
- CompactRIO and CompactDAQ integration
- Ideal for power, energy, and electrical test systems
Frequently Asked Questions
What is the NI-9246 used for?
The NI-9246 is primarily used for AC current measurement, three-phase power monitoring, energy analysis, motor and drive testing, power electronics validation, and industrial electrical monitoring.
What is the current measurement range of the NI-9246?
The NI-9246 supports direct current measurements up to 20 A RMS, making it suitable for many industrial power and electrical test applications.
How many input channels does the NI-9246 have?
The NI-9246 provides three current input channels, making it particularly useful for three-phase electrical measurement systems.
Does the NI-9246 provide simultaneous sampling?
Yes. The NI-9246 provides simultaneous sampling across its current input channels, helping maintain accurate phase relationships for multi-channel power measurements.
What is the difference between NI-9246 and NI-9247?
The NI-9246 is designed for direct high-current measurements up to 20 A RMS, while the NI-9247 is intended for electrical current measurements using compatible current transformer configurations. The appropriate module depends on the current level, sensor architecture, and measurement system design.
Can NI-9246 and NI-9225 be used together?
Yes. In compatible C Series systems, the NI-9246 can provide current measurements while the NI-9225 provides high-voltage measurements. This combination is useful when building power and energy measurement systems that require both voltage and current acquisition.
Заключение
Земля NI-9246 C Series current input module provides a high-performance solution for three-phase power measurement, energy monitoring, electrical equipment testing, and industrial data acquisition. With three current input channels, up to 20 A RMS direct measurement, 24-bit resolution, simultaneous sampling, and C Series integration, it is well suited for demanding power and electrical measurement systems.
