Product Introduction

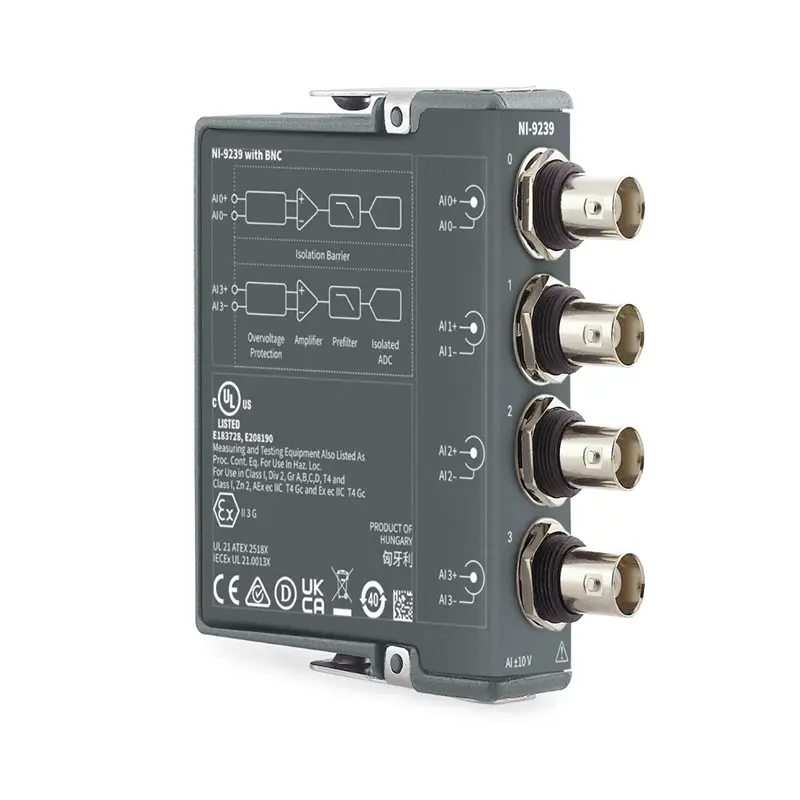

Земля NI-9239 is a high-performance C Series analog input module designed for precision voltage measurement, industrial data acquisition, and dynamic signal monitoring applications. It provides four differential analog input channels for accurate measurement of voltage signals in CompactRIO and CompactDAQ systems.
Featuring 24-bit analog-to-digital conversion, high-resolution measurement capability, ±10 V input range, and NI-DAQmx software support, the NI-9239 provides a reliable solution for industrial automation, electronic validation, laboratory testing, and embedded measurement applications.
Product Overview
Земля NI-9239 belongs to the NI C Series analog input module family and is designed for applications requiring high-accuracy analog voltage acquisition.
Unlike standard analog input modules, the NI-9239 provides high-resolution measurement performance suitable for applications where signal accuracy and measurement stability are critical.
With differential analog inputs, C Series modular architecture, and NI software ecosystem integration, the NI-9239 is suitable for industrial monitoring, automated test systems, research platforms, and precision measurement applications.
Key Features
4-Channel Differential Analog Input
The NI-9239 provides four differential analog input channels for accurate voltage measurement.
- 4 differential analog input channels
- Voltage signal acquisition
- Improved noise rejection
- High-accuracy measurement
- Flexible sensor connectivity
Advantage: Provides reliable measurement performance in industrial environments with electrical noise.
24-Bit High-Resolution ADC
The NI-9239 uses high-resolution analog conversion technology for precision signal measurement.
- 24-битное разрешение АЦП
- High signal accuracy
- Low-noise acquisition
- Detailed waveform measurement
- Stable measurement results
Advantage: Enables precise analysis of low-level analog signals.
±10 V Voltage Measurement Range
The NI-9239 supports standard voltage measurement applications with a wide input range.
- ±10 V input range
- DC voltage measurement
- Sensor signal acquisition
- Electronic testing
- Control feedback measurement
Advantage: Provides compatibility with a wide range of industrial and laboratory signals.
High-Accuracy Data Acquisition
The NI-9239 provides reliable analog measurement for demanding applications.
- Precision signal acquisition
- Stable long-term operation
- Low measurement error
- Repeatable results
- High-quality data recording
Advantage: Suitable for applications requiring accurate and consistent measurement data.
C Series Modular Architecture
The NI-9239 uses NI C Series technology for flexible system integration.
- CompactRIO compatibility
- CompactDAQ compatibility
- Modular I/O expansion
- Hot-swappable module design
- Scalable measurement systems
Advantage: Enables engineers to create customized data acquisition platforms.
NI-DAQmx and LabVIEW Support
The NI-9239 integrates with NI software tools for measurement application development.
- NI-DAQmx driver support
- Интеграция LabVIEW
- Measurement Studio compatibility
- Hardware configuration tools
- Custom application development
Advantage: Simplifies development and deployment of precision measurement systems.
Technical Specifications
| Параметр | Описание |
|---|---|
| Product Type | C Series Analog Input Module |
| Input Channels | 4 Differential Analog Input Channels |
| Разрешение | 24-битный АЦП |
| Input Range | ±10 V |
| Тип сигнала | Voltage Input |
| Platform Compatibility | CompactRIO, CompactDAQ |
| Driver Support | НИ-DAQmx |
| Programming | LabVIEW, C/C++, .NET |
Software Ecosystem
The NI-9239 integrates with NI software platforms for precision measurement, automation, and data acquisition applications.
- NI-DAQmx: Provides hardware drivers, configuration, and acquisition control.
- LabVIEW: Enables graphical programming for measurement and automation applications.
- NI MAX: Supports device configuration and diagnostics.
- Measurement Studio: Supports Windows-based measurement software development.
- C/C++ and .NET: Enables custom application programming.
Industries
- Промышленная автоматизация
- Automotive Testing
- Аэрокосмическая и оборонная промышленность
- Энергетические системы
- Manufacturing
- Исследовательские лаборатории
- Electronic Validation
- Machine Monitoring
Applications
Precision Voltage Measurement
The NI-9239 provides accurate voltage acquisition for measurement and validation systems.
- Electronic testing
- Sensor measurement
- Signal validation
- Laboratory experiments
Industrial Data Acquisition
The NI-9239 supports reliable analog monitoring in industrial environments.
- Equipment monitoring
- Process measurement
- Мониторинг состояния
- Автоматизация производства
Автоматизированные испытательные системы
The NI-9239 can be integrated into automated test platforms requiring high-resolution measurement.
- Device characterization
- Functional testing
- Production validation
- Test system expansion
Embedded Measurement Systems
Combined with CompactRIO controllers, the NI-9239 provides flexible embedded measurement capability.
- Real-time monitoring
- Remote acquisition
- Distributed sensing
- Custom measurement systems
Comparison with Similar Products
| Модель | Основное различие | Best Application |
|---|---|---|
| NI-9239 | 4-channel 24-bit differential analog input module for precision voltage measurement. | High-accuracy voltage acquisition |
| NI-9215 | 4-channel simultaneous sampling voltage input module with 16-bit resolution. | Dynamic signal measurement |
| NI-9228 | 8-channel differential voltage input module for general measurement applications. | Multi-channel voltage acquisition |
| NI-9220 | High-performance voltage input module for industrial measurement. | Advanced data acquisition |
Recommended Related Products
| NI-9228 | Differential analog input module for voltage measurement applications. |
| NI-9215 | Simultaneous sampling analog input module for dynamic measurements. |
| NI-9238 | Dynamic signal acquisition module for IEPE vibration measurement. |
| NI cRIO-9039 | CompactRIO controller for embedded measurement and control applications. |
Why Choose NI-9239?
- 4-channel differential analog input
- 24-bit high-resolution measurement
- ±10 V voltage acquisition
- High-accuracy signal measurement
- CompactRIO and CompactDAQ compatibility
- NI-DAQmx and LabVIEW support
- Suitable for precision testing
- Flexible C Series measurement solution
Frequently Asked Questions
What is NI-9239 used for?
The NI-9239 is used for precision voltage measurement, industrial data acquisition, automated testing, electronic validation, and embedded measurement systems.
Does NI-9239 support CompactRIO?
Yes. The NI-9239 is compatible with NI CompactRIO and CompactDAQ platforms using C Series module architecture.
What is the difference between NI-9239 and NI-9215?
The NI-9239 provides higher 24-bit measurement resolution for precision applications, while the NI-9215 focuses on general-purpose simultaneous voltage acquisition with 16-bit resolution.
Заключение
Земля NI-9239 C Series analog input module provides a high-accuracy solution for precision voltage measurement, industrial monitoring, and automated testing applications. With 24-bit resolution, differential inputs, CompactRIO and CompactDAQ compatibility, and NI software support, it is an ideal choice for demanding analog measurement systems.
