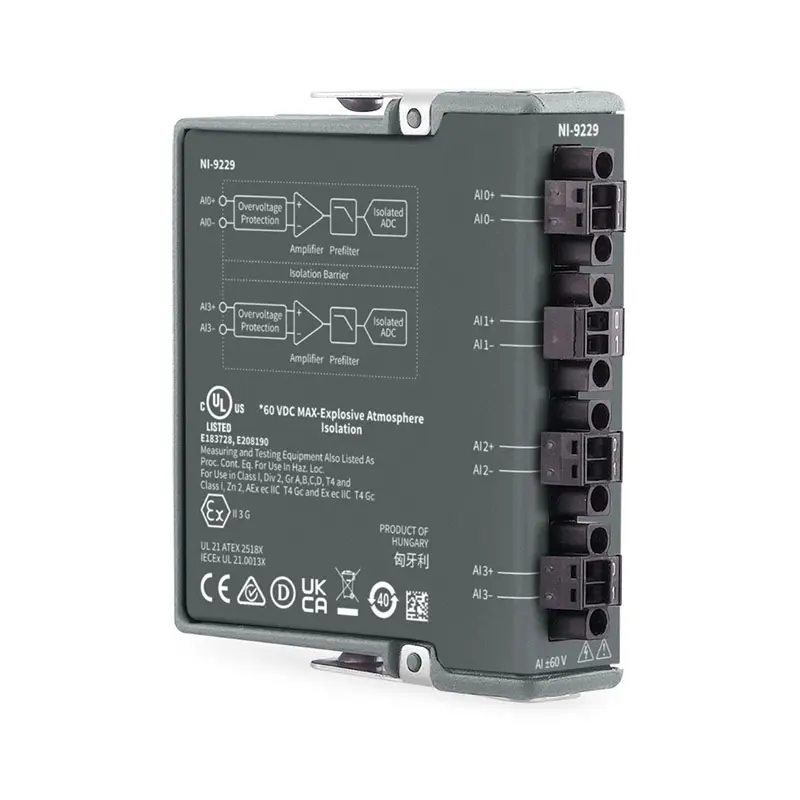

NI-9229

The NI-9229 is a high-precision C Series analog input module developed by National Instruments for CompactRIO and CompactDAQ systems. It is specifically designed for high-voltage measurements, offering 4 simultaneous analog input channels with a ±60 V input range, making it ideal for power monitoring, industrial automation, battery testing, and electrical validation.

Unlike standard low-voltage modules like the NI-9205 or NI-9215, the NI-9229 is optimized for direct measurement of higher voltage signals without external attenuation.

Typical applications include:

• Power quality analysis
• Battery testing
• Inverter validation
• Motor drive testing
• Industrial voltage monitoring
• Renewable energy systems
• Electrical distribution monitoring
• High-voltage signal acquisition

High-Voltage Measurement Architecture

The NI-9229 provides:

• 4 simultaneous analog input channels
• ±60 V input range
• 24-bit ADC resolution
• 50 kS/s per channel sampling rate
• Channel-to-channel isolation
• Channel-to-earth isolation

Key specifications:

This architecture is ideal for high-voltage dynamic waveform capture.

Simultaneous Sampling Advantage

One major advantage of the NI-9229 is its simultaneous sampling architecture.

Benefits:

Accurate Phase Measurements

All channels sample at exactly the same time.

Power Analysis

Measure voltage relationships across multiple phases.

Transient Capture

Capture fast voltage events accurately.

Reduced Timing Skew

Eliminate channel switching delays.

Applications:

• Three-phase power systems
• Motor drives
• Inverter outputs
• Power electronics testing

This makes the NI-9229 highly effective for dynamic electrical systems.

High-Voltage Industrial Applications

The NI-9229 is optimized for industrial and energy systems.

Common uses:

Battery Pack Testing

Monitor cell stacks and pack voltage.

Inverter Testing

Measure DC bus and AC output waveforms.

Motor Control Validation

Capture drive voltages and switching signals.

Power Grid Monitoring

Monitor line voltage and phase relationships.

Renewable Energy

Solar inverter and wind power monitoring.

Its ±60 V range covers many industrial electrical environments directly.

Isolation for Safety and Accuracy

The NI-9229 provides channel-to-channel isolation, which is critical in floating high-voltage systems.

Advantages:

• Better operator safety
• Reduced ground loop errors
• Improved signal integrity
• Independent floating measurements
• More reliable industrial deployment

This makes it highly suitable for:

• Battery systems
• Multi-phase power systems
• Industrial drives
• Floating sensor networks

Isolation is one of its strongest engineering advantages.

Power Electronics Testing

The NI-9229 is widely used in power electronics labs.

Applications include:

DC Bus Monitoring

Measure inverter and converter bus voltage.

Switching Waveforms

Capture transient switching behavior.

Efficiency Analysis

Combine with current modules like NI-9227 for power calculations.

Power Factor Measurement

Analyze voltage phase relationships.

This makes it valuable in EV, renewable energy, and industrial power research.

CompactRIO and CompactDAQ Integration

The NI-9229 supports:

• CompactRIO controllers
• CompactDAQ chassis
• Distributed measurement systems
• Embedded industrial systems

Supported software:

• LabVIEW
• NI-DAQmx
• LabVIEW FPGA
• Python
• C/C++
• .NET

This enables both test automation and embedded control integration.

Comparison with Similar Modules

Compared with the NI-9215, the NI-9229 supports much higher input voltage. Compared with the NI-9242, the NI-9229 is better suited for medium-voltage and isolated industrial testing.

Why Engineers Choose NI-9229

Engineers choose the NI-9229 for:

• High-voltage direct measurement
• Simultaneous sampling
• Power electronics validation
• Battery system testing
• Multi-phase voltage analysis
• Channel isolation
• CompactRIO integration

It is one of the most practical C Series modules for electrical engineers working with power systems.

Conclusion

The NI-9229 is a powerful 4-channel high-voltage analog input module designed for electrical, industrial, and power measurement applications.

Its combination of:

• ±60 V direct input
• 24-bit resolution
• Simultaneous sampling
• Channel-to-channel isolation
• Power analysis capability
• CompactRIO compatibility
• High measurement reliability

makes it an excellent choice for battery testing, inverter validation, power monitoring, renewable energy systems, and industrial electrical measurement.
