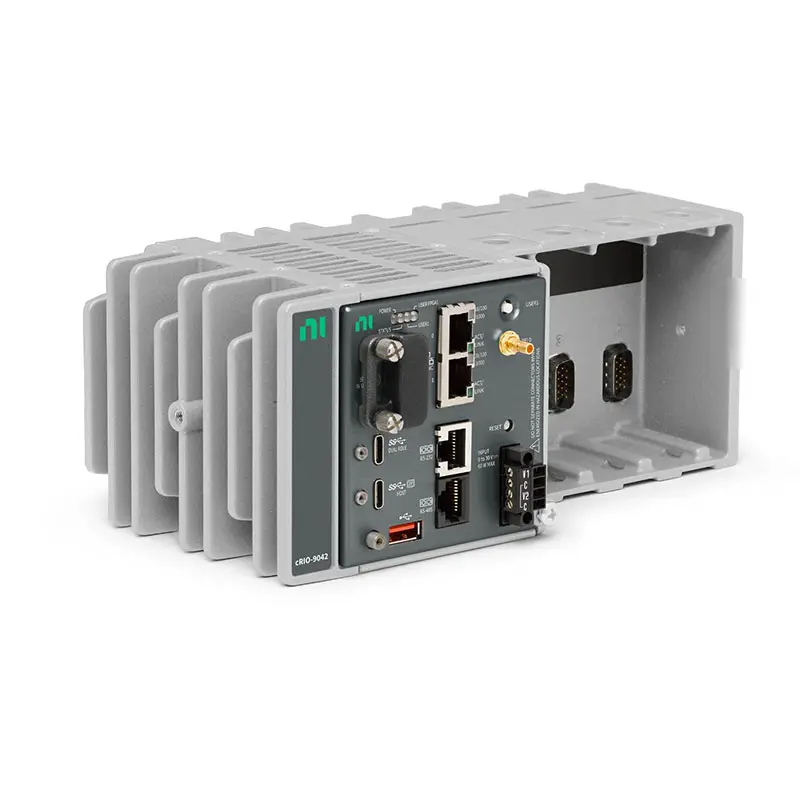

cRIO-9042

The NI cRIO-9042 is a rugged 4-slot CompactRIO embedded controller designed for deterministic industrial control, synchronized distributed systems, embedded monitoring, and FPGA-based automation applications. It combines an Intel Atom quad-core processor, a user-programmable Xilinx Kintex-7 FPGA, and support for Time-Sensitive Networking (TSN) into a compact industrial platform.

Unlike conventional PLC systems that rely mainly on CPU execution, the cRIO-9042 integrates FPGA-level hardware timing and deterministic processing directly into the control architecture. This enables ultra-low-latency control loops, synchronized multi-node systems, custom industrial protocol implementation, and hardware-level signal processing within a single controller platform.

The cRIO-9042 is widely used in:

• Industrial automation systems
• Distributed measurement networks
• Robotics and motion control
• Automotive HIL simulation
• Power and smart grid systems
• Industrial IoT edge computing
• Machine condition monitoring
• Semiconductor and process automation

Processor and FPGA Architecture

The cRIO-9042 is built around an Intel Atom E3940 quad-core processor running the NI Linux Real-Time operating system, delivering deterministic execution behavior for industrial real-time applications. The controller includes:

• Quad-core Intel Atom CPU
• 1.6 GHz base frequency
• 4 GB DDR3L RAM
• 4 GB onboard storage
• Xilinx Kintex-7 70T FPGA

The integrated FPGA enables:

• Hardware-level deterministic timing
• Inline signal processing
• Real-time filtering and FFT processing
• Encoder synchronization
• Motion control acceleration
• Deterministic trigger logic
• High-speed digital processing
• Industrial protocol customization

Compared with software-only industrial controllers, FPGA-based CompactRIO systems provide significantly lower latency and more stable deterministic timing under heavy workloads.

TSN and Distributed Synchronization Capability

One of the most important engineering advantages of the cRIO-9042 is support for TSN (Time-Sensitive Networking) and IEEE synchronization standards. The controller supports:

• IEEE 802.1AS
• IEEE 1588 synchronization
• Deterministic Ethernet communication
• Sub-microsecond synchronization accuracy

This makes the cRIO-9042 highly suitable for:

• Distributed industrial control
• Multi-node synchronized acquisition
• Smart manufacturing systems
• Power grid synchronization
• High-speed distributed test platforms
• Automotive distributed simulation

For engineers building synchronized distributed systems, TSN capability is one of the major advantages over older CompactRIO generations and conventional industrial PLC systems.

Modular C Series Expansion

The cRIO-9042 supports up to 4 NI C Series modules, allowing flexible expansion using:

• Analog input/output
• Digital I/O
• CAN / CAN FD
• LIN communication
• Vibration acquisition
• Temperature measurement
• Motion control
• Industrial communication modules

This architecture allows the cRIO-9042 to operate simultaneously as:

1. A deterministic industrial controller
2. A distributed acquisition system
3. An FPGA-based edge processing node

Unlike fixed-function industrial controllers, engineers can customize the system for application-specific automation and measurement requirements.

Industrial Applications

Robotics and Motion Control

The FPGA architecture enables deterministic synchronization for:

• Servo systems
• Multi-axis robotics
• CNC equipment
• Packaging machinery
• Automated production lines

Condition Monitoring Systems

Using vibration and analog acquisition modules, engineers can build:

• Predictive maintenance systems
• FFT analysis systems
• Bearing diagnostics
• Rotating machinery monitoring
• Industrial health monitoring platforms

Automotive HIL Systems

The cRIO-9042 is widely used for:

• ECU validation
• CAN/LIN communication testing
• Real-time signal simulation
• Automotive distributed testing
• HIL simulation systems

Power and Energy Applications

Typical applications include:

• Power quality monitoring
• Smart grid synchronization
• Protection relay validation
• Distributed energy control
• Real-time energy analytics

Rugged Industrial Design

The cRIO-9042 is designed for harsh industrial environments with:

• Fanless construction
• Operating temperature range from -40 °C to 70 °C
• Shock and vibration resistance
• DIN-rail and panel mounting support
• Industrial EMC compliance

This makes the controller suitable for factory automation, transportation infrastructure, energy systems, and outdoor industrial deployments.

Connectivity and Interfaces

The controller provides:

• 2× Gigabit Ethernet ports
• USB 3.1 Type-C
• USB 2.0 ports
• RS232 serial interface
• RS485 serial interface
• SD card slot
• TSN synchronization support

The USB Type-C interface simplifies:

• Local HMI deployment
• System programming
• Debugging
• Edge device integration

Comparison with Similar CompactRIO Models

Compared with the older cRIO-903x series, the cRIO-9042 offers:

• TSN networking capability
• Improved synchronization performance
• Updated processor architecture
• Modern NI Linux Real-Time support
• Enhanced distributed control performance

Compared with higher-end cRIO-905x systems, the cRIO-9042 provides a more cost-effective balance between FPGA capability, synchronization performance, and industrial deployment flexibility.

Engineering Advantages

From a system engineering perspective, the cRIO-9042 provides:

• Deterministic real-time control
• FPGA hardware acceleration
• TSN synchronized networking
• Industrial-grade reliability
• Flexible modular I/O
• Low-latency distributed processing
• Long-term deployment stability
• Tight integration with LabVIEW and NI ecosystems

These capabilities make it highly suitable for modern distributed industrial automation systems.

Conclusion

The NI cRIO-9042 CompactRIO Controller is a professional embedded real-time platform designed for deterministic industrial automation, synchronized distributed systems, FPGA-based processing, and edge computing applications.

Its combination of:

• Quad-core Intel Atom processing
• Kintex-7 FPGA acceleration
• TSN synchronization
• Modular C Series expansion
• Industrial ruggedness
• LabVIEW integration

makes it an ideal solution for robotics, industrial automation, distributed monitoring, HIL simulation, smart grid systems, and advanced embedded industrial control applications.
