Product Introduction

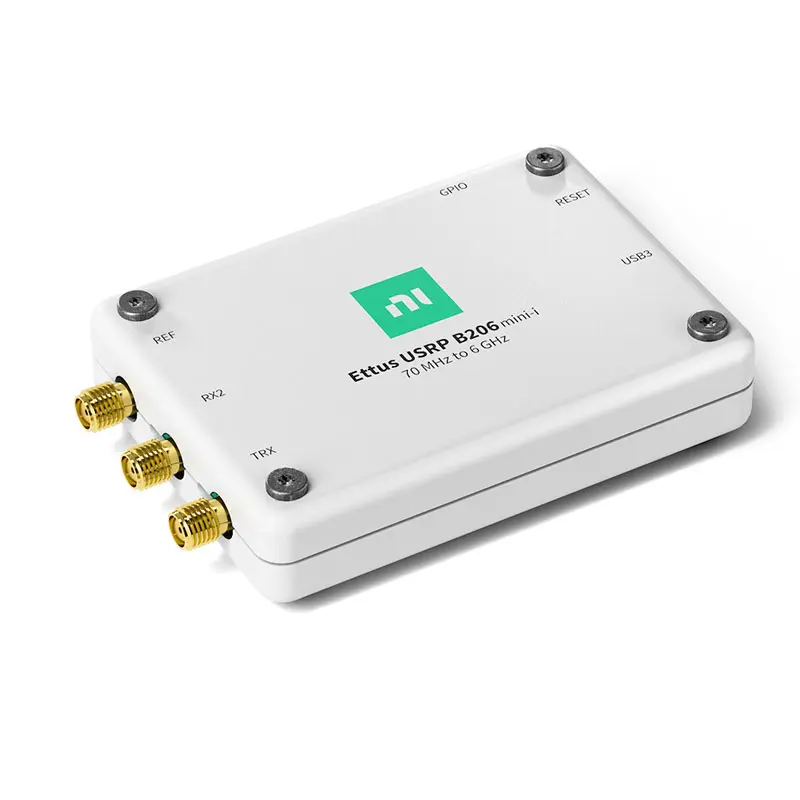

Земля Ettus USRP B206mini-i is a compact software defined radio (SDR) platform designed for embedded wireless systems, portable RF applications, IoT development, wireless communication research, and rapid SDR prototyping.
The USRP B206mini-i combines a wideband RF transceiver, programmable FPGA processing, USB 3.0 connectivity, external synchronization capability, and UHD software support into an ultra-small SDR platform optimized for embedded integration.
Supporting RF operation from 70 MHz to 6 GHz, 1 transmit channel and 1 receive channel, до 56 MHz instantaneous bandwidth, and a miniature board-level design, the B206mini-i provides a powerful SDR solution for applications requiring compact size and flexible RF capability.
Product Overview
Земля Ettus USRP B206mini-i belongs to the Ettus USRP Bus Series and is designed for applications where size, integration flexibility, and low power consumption are critical.
Compared with the USRP B200mini-i, the B206mini-i introduces improved synchronization features and is optimized for applications requiring more accurate timing, frequency stability, and multi-device deployment.
The B206mini-i maintains compatibility with the Ettus UHD software ecosystem, allowing engineers and researchers to develop custom SDR applications using GNU Radio, C++, Python, and FPGA-based processing workflows.
Key Features
70 MHz to 6 GHz RF Frequency Coverage
The USRP B206mini-i provides wide RF frequency coverage for modern wireless and RF applications.
- 70 MHz to 6 GHz RF frequency range
- Wideband RF transceiver architecture
- Software-defined frequency tuning
- Support for multiple wireless bands
- Flexible RF experimentation
Advantage: The wide frequency range supports cellular research, IoT, WLAN, ISM, spectrum monitoring, and custom RF development.
1 TX / 1 RX RF Channel
The USRP B206mini-i provides one transmit channel and one receive channel for compact SDR applications.
- 1 transmit channel
- 1 receive channel
- Full-duplex operation
- Single-antenna applications
- Embedded RF systems
Advantage: The single-channel architecture provides an efficient and economical solution for embedded SDR designs.
Up to 56 MHz Instantaneous Bandwidth
The B206mini-i supports wideband signal processing with up to 56 MHz instantaneous bandwidth.
- Up to 56 MHz bandwidth
- Wideband I/Q streaming
- Signal acquisition
- Waveform generation
- Wireless protocol testing
Advantage: The bandwidth capability enables advanced RF experiments while maintaining a compact hardware footprint.
Ultra-Compact Board-Level SDR Design
The B206mini-i is designed for embedded integration and space-constrained applications.
- Miniature SDR form factor
- Board-level integration
- Low-power design
- Embedded system deployment
- Custom product integration
Advantage: The compact architecture allows integration into UAVs, industrial equipment, IoT devices, and portable communication systems.
Реальное время на основе FPGA
The USRP B206mini-i provides programmable FPGA resources for real-time digital signal processing.
- FPGA-based DSP
- Digital filtering
- Digital upconversion
- Digital downconversion
- Custom FPGA processing
- Low-latency signal processing
Advantage: FPGA acceleration enables efficient real-time RF processing directly on the SDR hardware.
USB 3.0 Connectivity
The B206mini-i uses USB 3.0 connectivity for communication with host computers and embedded systems.
- USB 3.0 interface
- High-speed I/Q streaming
- Simple host integration
- Portable SDR operation
Advantage: USB connectivity simplifies system deployment without requiring additional networking hardware.
Enhanced Synchronization Capability
The USRP B206mini-i supports improved clock and synchronization functions for precision RF applications.
- External reference clock support
- Frequency synchronization
- Multi-device deployment
- Improved RF stability
Advantage: Enhanced synchronization enables applications requiring accurate timing and coordinated SDR operation.
GPSDO Support
The B206mini-i supports GPS-disciplined oscillator options for applications requiring precise frequency and timing references.
- GPSDO capability
- Frequency accuracy improvement
- Timing synchronization
- Распределенные РЧ-системы
UHD and GNU Radio Support
The USRP B206mini-i is supported by the complete Ettus software ecosystem.
- UHD driver support
- GNU Radio integration
- Разработка на C/C++
- Python SDR applications
- Open-source SDR workflows
Technical Specifications
| Параметр | Описание |
|---|---|
| Product Type | Miniature USB Software Defined Radio |
| Модель | Ettus USRP B206mini-i |
| RF Frequency Range | 70 MHz to 6 GHz |
| RF Channels | 1 TX / 1 RX |
| MIMO Capability | 1×1 SISO |
| Мгновенная пропускная способность | Up to 56 MHz |
| Host Interface | USB 3.0 |
| ФПГА | Programmable FPGA Architecture |
| RF Architecture | Integrated RF Transceiver |
| Form Factor | Compact Board-Level SDR |
| Синхронизация | External Reference Clock and GPSDO Support |
| Поддержка программного обеспечения | UHD, GNU Radio, C/C++, Python |
| Primary Applications | Embedded SDR, Wireless Research, Portable RF Systems |
Software Ecosystem
The Ettus USRP B206mini-i supports a complete software-defined radio development environment.
- UHD: Provides hardware drivers and APIs for RF configuration, streaming, synchronization, and device management.
- GNU Radio: Enables graphical SDR application development for communication systems and signal processing.
- C/C++: Supports high-performance SDR software development.
- Python: Enables rapid prototyping and automation.
Industries
- Wireless Communications
- Embedded System Development
- IoT Development
- RF Engineering
- Universities and Research
- Aerospace and Defense Research
- Portable Communication Systems
Applications
Embedded Wireless Systems
The compact architecture of the B206mini-i makes it suitable for integration into embedded communication platforms.
- Embedded RF devices
- Custom wireless systems
- IoT communication platforms
- Edge RF processing
Portable RF Testing
The miniature design allows deployment in portable RF measurement systems.
- Field RF testing
- Mobile spectrum monitoring
- Portable communication systems
- Remote RF analysis
Wireless Communication Prototyping
The B206mini-i provides a flexible platform for developing custom wireless technologies.
- Digital modulation research
- Wireless protocol testing
- Communication algorithm development
- RF experiments
UAV and Mobile Applications
The small size and low power characteristics make the B206mini-i suitable for mobile platforms.
- UAV communication systems
- Mobile SDR platforms
- Remote sensing applications
- Experimental wireless links
Precision RF Applications
Enhanced synchronization capability enables applications requiring improved timing accuracy.
- Distributed SDR systems
- RF localization
- Signal measurement
- Coherent RF experiments
Comparison with Similar USRP Devices
| Модель | Основное различие | Best Application |
|---|---|---|
| USRP B206mini-i | Miniature USB SDR with enhanced synchronization, 70 MHz to 6 GHz coverage, 1 TX/1 RX and 56 MHz bandwidth. | Embedded SDR and precision portable applications |
| USRP B200mini-i | Compact USB SDR focused on general embedded SDR applications. | Small form-factor SDR development |
| USRP B210 | Dual-channel USB SDR with 2 TX/2 RX MIMO capability. | MIMO wireless research |
| USRP E320 | Embedded SDR with integrated processor for standalone operation. | Portable standalone SDR systems |
Recommended Related Products
| Ettus USRP B200mini-i | Compact USB SDR platform for embedded and portable RF applications. |
| Ettus USRP B210 | 2×2 MIMO USB SDR platform for advanced wireless research. |
| Ettus USRP E320 | Portable embedded SDR platform with integrated computing capability. |
Why Choose USRP B206mini-i?
- 70 MHz to 6 GHz RF coverage
- 1 TX / 1 RX channel
- Up to 56 MHz bandwidth
- Ultra-compact SDR form factor
- USB 3.0 connectivity
- FPGA-based real-time processing
- Enhanced synchronization capability
- GPSDO support
- UHD and GNU Radio compatibility
- Ideal for embedded RF integration
Frequently Asked Questions
What is the Ettus USRP B206mini-i?
The USRP B206mini-i is a compact USB software-defined radio platform designed for embedded SDR applications, portable RF systems, and precision wireless research.
What frequency range does the USRP B206mini-i support?
The USRP B206mini-i supports RF operation from 70 MHz to 6 GHz.
How many channels does the USRP B206mini-i provide?
The B206mini-i provides one transmit channel and one receive channel.
What bandwidth does the USRP B206mini-i support?
The USRP B206mini-i supports up to 56 MHz instantaneous bandwidth.
What is the difference between USRP B200mini-i and B206mini-i?
The B206mini-i provides enhanced synchronization capability compared with the B200mini-i, making it more suitable for precision timing, frequency stability, and coordinated SDR applications.
Does the USRP B206mini-i support GNU Radio?
Yes. The B206mini-i is fully supported by UHD and GNU Radio for SDR development and wireless research.
Заключение
Земля Ettus USRP B206mini-i software defined radio is an ultra-compact SDR platform designed for embedded wireless systems, portable RF applications, and precision SDR development. With 70 MHz to 6 GHz RF coverage, 1 TX/1 RX operation, up to 56 MHz bandwidth, USB 3.0 connectivity, FPGA processing, enhanced synchronization capability, and UHD software support, the B206mini-i provides a powerful solution for engineers requiring high-performance SDR capability in a miniature form factor.
