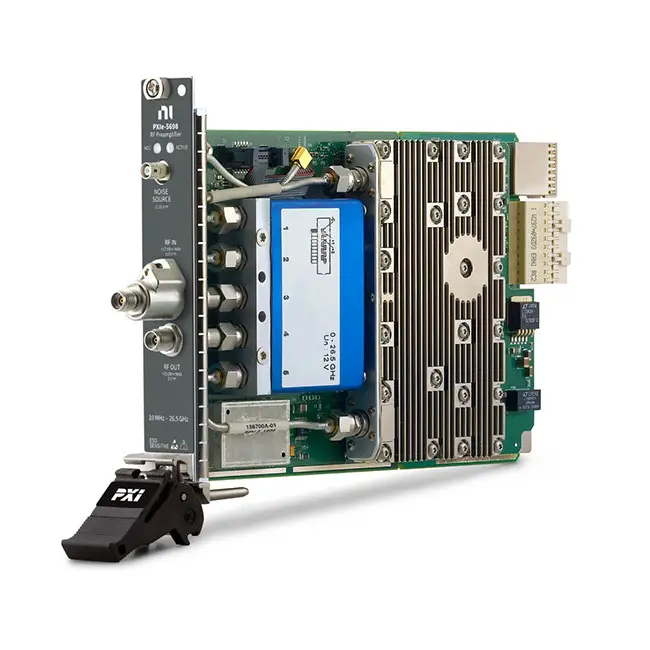

PXIe-5698

The PXIe-5698 is an RF preamplifier in a single-slot PXI Express module. The NI 5698 is designed to extend the testing and monitoring capability of the the PXIe-5668 vector signal analyzer, and it can also function as a stand-alone preamplifier. The PXIe-5698 provides an additional RF signal bypass path that uses a mechanical relay to remove the preamplifier without having to reconnect the system.

Applications and Use Cases of PXIe-5698

The PXIe-5698 RF Preamplifier is a PXI-based low-noise RF preamplifier разработан для boost weak RF signals before analysis. Она предоставляет high gain with low noise figure, making it essential for improving measurement sensitivity in RF test systems.

1. Weak Signal Amplification
PXIe-5698 amplifies low-level RF signals, improving signal visibility for accurate measurement and analysis.

2. Enhanced Receiver Sensitivity
Used in combination with vector signal analyzers to extend sensitivity and detect low-power signals.

3. Spectrum Monitoring & RF Analysis
Improves detection capability in spectrum monitoring applications, especially for weak or distant signals.

4. RF Component Testing
Used when testing devices that output low-power signals, ensuring accurate measurement results.

5. Signal Intelligence (SIGINT) Applications
Applied in signal detection and monitoring systems where capturing weak signals is critical.

6. Автоматизированное испытательное оборудование (АИО)
Integrated into RF ATE systems to enhance measurement accuracy and dynamic range.

7. Научные и лабораторные применения
Used in labs for high-sensitivity RF experiments and signal analysis.
