Product Introduction

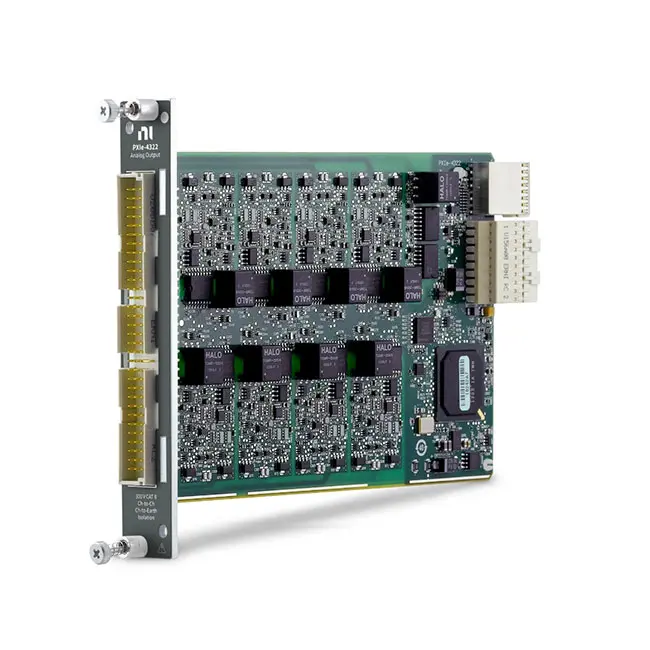

Земля NI PXIe-4322 is an 8-channel, channel-to-channel isolated PXI Express analog output module designed for precision voltage and current generation in automated test, automotive validation, hardware-in-the-loop (HIL), industrial control, and electronic device testing applications.
The PXIe-4322 provides 8 independently isolated analog output channels, 16-битное разрешение, and simultaneous update rates up to 250 kS/s per channel. Each channel can generate either voltage or current signals, providing flexible stimulus and control capability from a single PXI Express module.
The module supports voltage outputs from -16 V to +16 V and current outputs from -20 mA to +20 mA. In current mode, the PXIe-4322 supports four-quadrant operation, allowing it to both source and sink current.
With integrated signal conditioning and channel-to-channel isolation, the PXIe-4322 is particularly suitable for applications where multiple devices or circuits operate at different electrical potentials and require independently controlled analog stimulus signals.
Product Overview
Земля National Instruments PXIe-4322 belongs to the NI SC Express family of PXI Express modules with integrated signal conditioning.
Unlike conventional analog output modules that share a common ground between channels, the PXIe-4322 provides channel-to-channel isolation. This architecture helps prevent unwanted ground-current paths and allows individual output channels to interface with circuits operating at different reference potentials.
The combination of isolated voltage output, isolated current output, simultaneous waveform generation, PXI Express synchronization, and integrated signal conditioning makes the PXIe-4322 a specialized solution for demanding automated test and control systems.
Key Features
8 Isolated Analog Output Channels
The PXIe-4322 provides eight independently controlled analog output channels.
- 8 аналоговых выходных каналов
- Channel-to-channel isolation
- Voltage and current output modes
- Independent channel configuration
- Hardware-timed waveform generation
- Simultaneous dynamic output capability
Advantage: Eight isolated outputs allow multiple devices, actuators, sensors, controllers, or DUT interfaces to be stimulated independently from one PXI Express module.
Channel-to-Channel Isolation
Channel-to-channel isolation is one of the primary technical advantages of the PXIe-4322.
Each output channel is electrically isolated from the other channels, allowing signals to be generated for circuits with different reference potentials.
- Channel-to-channel electrical isolation
- Reduced ground-loop problems
- Independent output references
- Improved system robustness
- Suitable for electrically demanding test systems
Advantage: Isolation is particularly valuable in automotive, industrial, and HIL applications where different DUT circuits may not share the same electrical ground.
16-Bit Analog Output Resolution
The PXIe-4322 provides 16-bit digital-to-analog conversion for precision signal generation.
- 16-битное разрешение ЦАП
- 65,536 theoretical output levels
- Precision voltage generation
- Precision current generation
- Programmable stimulus signals
Advantage: High-resolution output control allows engineers to generate precise analog stimulus and control signals for automated validation and characterization systems.
250 kS/s Maximum Update Rate
The PXIe-4322 supports analog output update rates up to 250 kS/s.
- Up to 250 kS/s analog output update rate
- Simultaneous dynamic outputs
- Hardware-timed generation
- Dynamic waveform generation
- Automated stimulus generation
Advantage: The module can generate dynamic analog waveforms rather than being limited to static DC control values.
±16 V Voltage Output
The PXIe-4322 supports programmable voltage output across a wide bipolar range.
- -16 V to +16 V output range
- Bipolar voltage generation
- Precision programmable output
- Dynamic voltage waveform generation
- DUT stimulus applications
Advantage: The wider voltage capability makes the PXIe-4322 suitable for applications that require output levels beyond those available from many conventional ±10 V DAQ devices.
±20 mA Current Output
In addition to voltage generation, the PXIe-4322 can generate programmable current signals from -20 mA to +20 mA.
- -20 mA to +20 mA output range
- Programmable current generation
- Current sourcing
- Current sinking
- Industrial signal simulation
Advantage: Integrated current output capability eliminates the need for separate external voltage-to-current conversion hardware in many test applications.
Four-Quadrant Current Operation
The PXIe-4322 supports four-quadrant operation when configured for current output.
This means the module can both source and sink current, providing significantly more flexibility than a conventional current source that operates in only one direction.
- Positive current sourcing
- Negative current sourcing
- Current sinking capability
- Bipolar current operation
- Flexible DUT simulation
Advantage: Four-quadrant current operation is useful for automotive ECU testing, sensor simulation, electronic validation, and other applications requiring bidirectional current behavior.
Simultaneous Analog Outputs
The PXIe-4322 is designed to provide accurate simultaneous dynamic voltage and current outputs.
This capability is important when multiple stimulus signals must change at precisely controlled times during automated testing.
- Simultaneous channel updates
- Coordinated waveform generation
- Multichannel stimulus generation
- Deterministic test sequencing
- Synchronized DUT stimulation
Integrated Signal Conditioning
As an NI SC Express module, the PXIe-4322 integrates signal conditioning and digital-to-analog conversion within the same PXI Express device.
- Integrated signal conditioning
- Integrated D/A converters
- Reduced external hardware requirements
- Compact PXI system architecture
- Simplified signal connections
Advantage: Combining signal generation and conditioning in one module can reduce test system size, wiring complexity, and external instrumentation requirements.
Hardware Timing and Triggering
The PXIe-4322 provides hardware timing and triggering resources for deterministic waveform generation.
- Hardware-timed analog output
- Start triggering
- Pause triggering
- PXI trigger resources
- PFI trigger resources
- Синхронизация межмодульных блоков
PXI Express Synchronization
The PXIe-4322 can use PXI Express timing resources to synchronize analog output generation with other instruments in a modular test system.
- PXIe_DSTAR timing resources
- PXI_STAR support
- PXIe_Clk100 reference clock
- PXI trigger lines
- Multi-instrument synchronization
Advantage: PXI Express synchronization allows the PXIe-4322 to operate as part of larger automated test systems containing data acquisition, switching, communication, RF, and other instrumentation.
TB-4322 Terminal Block
The PXIe-4322 is designed for use with the NI TB-4322 front-mount terminal block.
- Dedicated TB-4322 terminal block
- Front-mount connectivity
- Screw-terminal signal connections
- Designed specifically for PXIe-4322
- Simplified field wiring
Advantage: The dedicated terminal block provides convenient access to the module’s isolated voltage and current output channels.
NI-DAQmx Software Support
The PXIe-4322 is supported by NI-DAQmx for configuration, waveform generation, timing, triggering, and synchronization.
- NI-DAQmx driver
- Интеграция LabVIEW
- NI MAX configuration
- FlexLogger compatibility
- TestStand integration
- Разработка на C/C++
- .NET application development
Technical Specifications
| Параметр | Описание |
|---|---|
| Product Type | Channel-to-Channel Isolated PXI Express Analog Output Module |
| Модель | NI PXIe-4322 |
| Part Number | 782878-01 |
| Product Family | NI SC Express |
| Шинный интерфейс | PXI Express |
| Analog Output Channels | 8 |
| Analog Output Resolution | 16 Bit |
| Maximum Analog Update Rate | 250 kS/s |
| Voltage Output Range | -16 V to +16 V |
| Current Output Range | -20 mA to +20 mA |
| Current Operation | Four Quadrant, Source and Sink |
| Изоляция | Channel-to-Channel Isolated |
| Dynamic Output | Supported |
| Simultaneous Output | Supported |
| Integrated Signal Conditioning | Да |
| Hardware Triggering | Supported |
| Recommended Terminal Block | NI TB-4322 |
| Driver | НИ-DAQmx |
| Primary Applications | Automotive Test, HIL, Sensor Simulation, Industrial Control and Automated Validation |
Voltage Output Capabilities
The PXIe-4322 can generate bipolar voltage signals from -16 V to +16 V, providing a wider output range than many conventional multifunction DAQ devices.
This capability is useful for stimulating electronic circuits, simulating sensors, controlling external equipment, and generating programmable reference signals.
- DUT stimulus generation
- Sensor simulation
- Programmable reference voltage
- Control signal generation
- Automated electronic validation
Current Output Capabilities
The PXIe-4322 can also operate as a programmable current output device with a range from -20 mA to +20 mA.
Unlike simple unidirectional current sources, its four-quadrant architecture allows current to be both sourced and sunk. This provides additional flexibility when simulating real electrical devices and interfaces.
- Current-loop simulation
- Sensor simulation
- ECU interface testing
- Current stimulus generation
- Electronic load interaction
Channel-to-Channel Isolation Explained
Channel-to-channel isolation means that each analog output channel is electrically separated from the other output channels.
This architecture is useful when several DUT circuits operate at different reference potentials. Instead of forcing every output to share a common ground, each isolated channel can interface with its own electrical reference within the module’s specified operating limits.
Channel-to-channel isolation can also help reduce unwanted ground-current paths and improve test system robustness in electrically demanding applications.
SC Express Architecture
The PXIe-4322 belongs to the NI SC Express platform, which combines PXI Express data acquisition hardware with integrated signal conditioning.
Integrating signal conditioning directly into the module reduces the requirement for separate external conditioning equipment and allows engineers to create more compact test systems.
For the PXIe-4322, this architecture combines isolated signal generation, D/A conversion, timing, triggering, and PXI Express synchronization in a single module.
Industries
- Automotive Testing
- Аэрокосмическая и оборонная промышленность
- Промышленная автоматизация
- Electronic Manufacturing
- Hardware-in-the-Loop Testing
- Power Electronics
- Исследовательские лаборатории
- Automated Test Equipment
- Electronic Design Validation
Applications
Automotive ECU Testing
The PXIe-4322 is particularly suitable for automotive electronic control unit testing because it can generate isolated voltage and current signals on multiple channels.
- ECU input simulation
- Sensor signal simulation
- Automotive electronics validation
- Fault-condition testing
- Automated functional testing
Hardware-in-the-Loop Testing
HIL systems often require programmable analog signals to simulate sensors and other real-world devices connected to an electronic controller.
- Sensor simulation
- Controller validation
- Dynamic stimulus generation
- Real-time test systems
- Automated test sequencing
Sensor Simulation
The combination of voltage and current generation makes the PXIe-4322 useful for simulating different sensor and transmitter interfaces.
- Voltage-output sensor simulation
- Current-output sensor simulation
- Programmable DUT stimulus
- Controller input validation
Industrial Control Testing
The module can generate programmable voltage and current signals for testing industrial controllers, monitoring systems, and control equipment.
- Controller input testing
- Industrial signal simulation
- Control-system validation
- Automated equipment testing
Electronic Device Validation
The PXIe-4322 can provide multiple isolated stimulus signals during electronic design verification and automated functional testing.
- PCB functional testing
- Electronic module validation
- Prototype characterization
- Production test
- Automated pass/fail testing
Voltage Mode vs Current Mode
| Функция | Voltage Mode | Current Mode |
|---|---|---|
| Тип вывода | Programmable Voltage | Programmable Current |
| Output Range | -16 V to +16 V | -20 mA to +20 mA |
| Разрешение | 16 Bit | 16 Bit |
| Dynamic Generation | Supported | Supported |
| Изоляция | Channel-to-Channel | Channel-to-Channel |
| Typical Application | Voltage Sensor Simulation and DUT Stimulus | Current Interface and Sensor Simulation |
PXIe-4322 vs General-Purpose Analog Output DAQ
| Функция | PXIe-4322 | Typical Multifunction DAQ |
|---|---|---|
| Primary Function | Isolated Analog Output | General-Purpose Multifunction I/O |
| Output Channels | 8 | Typically 2 or 4 |
| Изоляция | Channel-to-Channel | Typically Non-Isolated |
| Voltage Output | Up to ±16 V | Often Around ±10 V |
| Current Output | ±20 мА | Typically Not Available |
| Current Source/Sink | Supported | Typically Not Available |
| Best Application | Industrial, Automotive and HIL Stimulus | General Laboratory DAQ |
Recommended Related Products
| NI PXIe-4322 | 8-channel isolated voltage and current analog output module for automotive, HIL, industrial control, and automated test applications. |
| NI PXIe-4310 | Isolated analog input module for applications requiring precision voltage measurement rather than analog signal generation. |
| NI PXIe-4300 | SC Express analog input solution for synchronized and conditioned voltage acquisition applications. |
| NI PXI-6723 | High-channel-count analog output module for applications requiring many voltage outputs where PXIe-4322-style channel-to-channel isolated voltage/current generation is not required. |
Why Choose NI PXIe-4322?
- 8 independently isolated analog output channels
- 16-bit analog output resolution
- 250 kS/s maximum update rate
- -16 V to +16 V voltage output
- -20 mA to +20 mA current output
- Voltage and current generation from one module
- Four-quadrant current operation
- Current source and sink capability
- Channel-to-channel isolation
- Simultaneous dynamic analog outputs
- Integrated signal conditioning
- Hardware timing and triggering
- PXI Express synchronization
- NI-DAQmx software support
- Ideal for automotive and HIL testing
Frequently Asked Questions
What is the NI PXIe-4322?
The NI PXIe-4322 is an eight-channel, channel-to-channel isolated PXI Express analog output module designed to generate precision voltage and current signals for automated test, automotive, HIL, industrial control, and electronic validation applications.
What is the part number of the PXIe-4322?
The NI PXIe-4322 part number is 782878-01.
How many analog output channels does the PXIe-4322 have?
The PXIe-4322 provides 8 аналоговых выходных каналов.
What is the resolution of the PXIe-4322?
The PXIe-4322 provides 16-bit analog output resolution.
What is the maximum update rate of the PXIe-4322?
The PXIe-4322 supports a maximum analog output update rate of 250 kS/s.
What voltage can the PXIe-4322 output?
The PXIe-4322 provides an analog voltage output range from -16 V to +16 V.
Can the PXIe-4322 output current?
Yes. In addition to voltage generation, the PXIe-4322 can generate current signals from -20 mA to +20 mA.
Can the PXIe-4322 source and sink current?
Yes. The PXIe-4322 operates in all four quadrants when configured for current output, allowing it to both source and sink current.
Is the PXIe-4322 isolated?
Yes. The PXIe-4322 provides channel-to-channel isolation, which is one of its primary advantages compared with conventional general-purpose analog output DAQ devices.
Can the PXIe-4322 generate dynamic waveforms?
Yes. The module supports hardware-timed, simultaneous dynamic analog output generation at update rates up to 250 kS/s.
What terminal block does the PXIe-4322 use?
The PXIe-4322 is designed for use with the NI TB-4322 terminal block, which provides front-mounted screw-terminal connectivity for signal wiring.
What is the difference between PXIe-4322 and a standard analog output DAQ module?
The PXIe-4322 provides channel-to-channel isolation, eight output channels, ±16 V voltage generation, ±20 mA current generation, and four-quadrant current operation. Standard multifunction DAQ modules generally provide fewer analog outputs, lower voltage ranges, shared electrical references, and typically do not provide programmable ±20 mA current output.
Is the PXIe-4322 suitable for automotive testing?
Yes. The combination of channel-to-channel isolation, higher voltage output, programmable current output, and current source/sink capability makes the PXIe-4322 particularly well suited for automotive electronics and ECU test applications.
Can the PXIe-4322 be used for HIL testing?
Yes. The PXIe-4322 can generate isolated voltage and current signals for sensor simulation, controller input stimulation, ECU validation, and other hardware-in-the-loop test functions.
What software supports the PXIe-4322?
The PXIe-4322 is supported by NI-DAQmx and can be integrated into compatible LabVIEW, NI MAX, FlexLogger, TestStand, C/C++, and .NET applications.
What should I check before purchasing a PXIe-4322?
Before purchasing a PXIe-4322, verify the exact part number, PXI Express chassis compatibility, required voltage and current ranges, output update rate, isolation requirements, TB-4322 terminal block availability, wiring requirements, and NI-DAQmx software compatibility.
Заключение
Земля NI PXIe-4322 Channel-to-Channel Isolated Analog Output Module provides eight 16-bit isolated analog outputs, up to 250 kS/s update rates, ±16 V voltage generation, ±20 mA current generation, four-quadrant source and sink capability, integrated signal conditioning, and PXI Express synchronization. These capabilities make the PXIe-4322 particularly suitable for automotive ECU testing, HIL systems, sensor simulation, industrial control validation, electronic device testing, and other automated test applications requiring precise and independently isolated analog stimulus signals.
