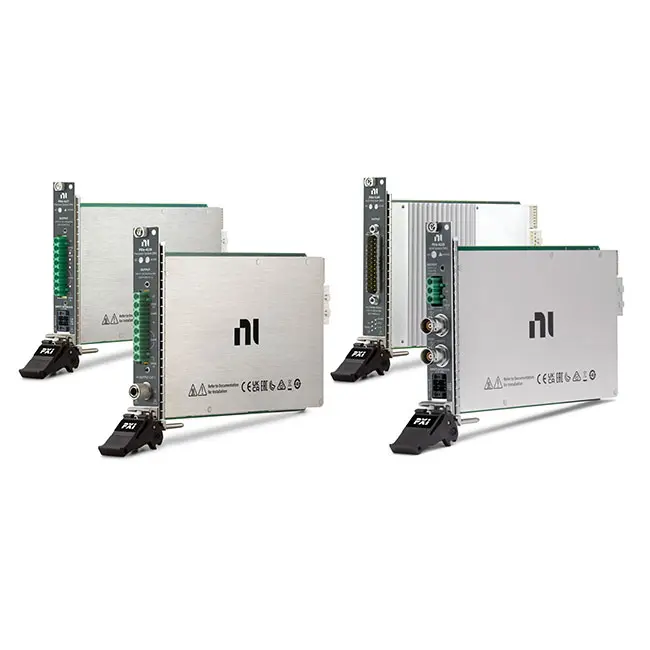

PXIe-4140

The PXIe-4140 is a 4-channel source measure unit (SMU) ideal for high-pin-count applications. It features 4-quadrant operation, and each channel has integrated remote (4-wire) sensing for accurate measurements. The fast sample rate of the PXIe-4140 can reduce measurement times, capture transient device characteristics, and allow quick I V characterization of devices under test (DUTs). With a high-speed sequencing engine, you can synchronize all these SMUs with each other or with other instruments such as switches or high-speed digital test modules.

Applications and Use Cases of PXIe-4140

The PXIe-4140 Precision Source Measure Unit (SMU) is a PXI Express Единица измерения источника (ЕИИ) предназначен для basic precision voltage/current sourcing and measurement. It provides a cost-effective solution with reliable performance, что делает его пригодным для entry-level test systems, education, and general electronic validation.

1. Basic Source & Measurement (SMU)
PXIe-4140 can source and measure voltage/current, enabling fundamental electrical characterization of devices.

2. Electronic Component Testing
Used for testing diodes, transistors, and basic ICs by measuring voltage, current, and simple I-V relationships.

3. Автоматизированное испытательное оборудование (АИО)
Integrated into entry-level ATE systems for controlled power delivery and measurement.

4. Educational & Training Applications
Widely used in teaching environments for demonstrating SMU operation and electronic measurement principles.

5. General-Purpose Data Acquisition & Control
Suitable for simple measurement and control tasks requiring voltage/current sourcing.

6. Research & Prototyping
Used in labs for early-stage circuit validation and system prototyping.

7. Производство и контроль качества
Applied in basic production environments for repeatable electrical testing.
