Product Introduction

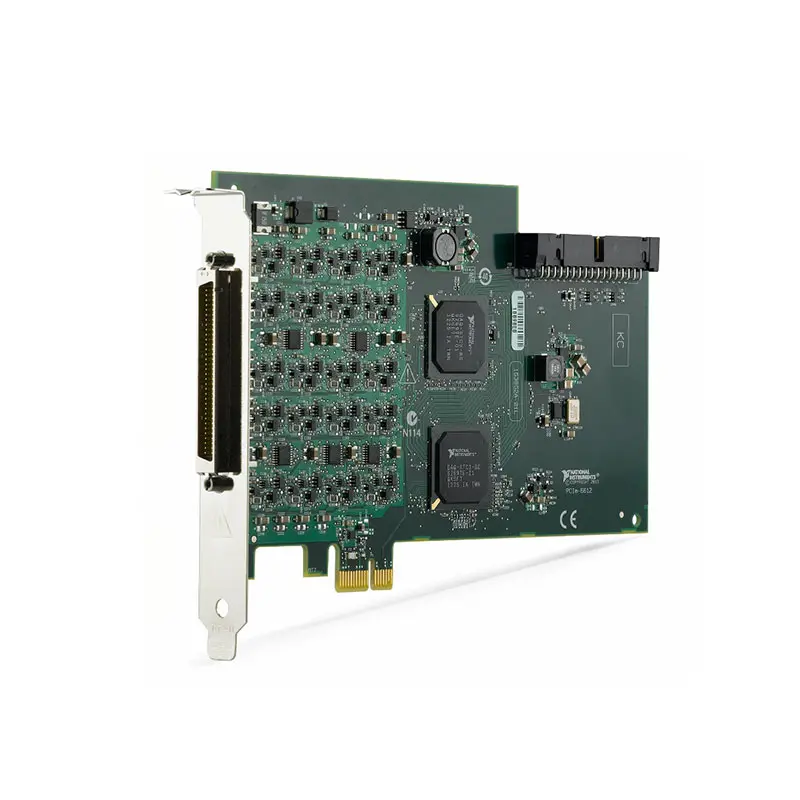

Земля NI PCIe-6612 высокопроизводительный PCI Express counter/timer and digital I/O device designed for encoder measurement, event counting, frequency measurement, period measurement, pulse-width measurement, pulse generation, and hardware-timed digital applications.
The PCIe-6612 provides 8 counter/timers together with 40 bidirectional digital I/O lines. Its counter architecture supports applications ranging from basic event counting to sophisticated encoder position measurement and hardware-timed pulse generation.
With frequency measurement capability up to 80 MHz, TTL/CMOS-compatible 5 V digital I/O, programmable digital filters, waveform digital I/O, and multiple DMA channels, the PCIe-6612 is well suited for motion measurement, automated test, industrial timing, encoder acquisition, pulse measurement, frequency analysis, and digital control applications.
Product Overview
Земля National Instruments PCIe-6612 is a dedicated counter/timer device for PCI Express-based computers.
A typical measurement architecture is:
Encoder / Pulse / Frequency Signal → PCIe-6612 → PCI Express → Host Computer → NI-DAQmx / LabVIEW
For generation applications:
Host Application → PCIe-6612 Counter/Timer → Pulse / Pulse Train → Device Under Test
This combination of measurement and generation makes the PCIe-6612 more flexible than a conventional basic digital I/O card.
Key Features
8 Counter/Timer Channels
The PCIe-6612 provides 8 independent counter/timer resources for hardware-timed measurement and generation applications.
Typical counter functions include:
- Подсчет событий
- Frequency measurement
- Period measurement
- Pulse-width measurement
- Encoder position measurement
- Генерация импульсов
- Pulse-train generation
- Digital timing
Up to 80 MHz Frequency Measurement
The PCIe-6612 supports frequency measurement from approximately 0 MHz to 80 MHz.
This high-frequency measurement capability makes the device useful for applications involving fast pulse trains, frequency outputs, digital sensors, rotational speed measurements, and high-speed timing signals.
Encoder Position Measurement
The PCIe-6612 can be used for encoder position measurement.
Compatible encoder applications can include:
- Motor shaft position
- Rotary encoder measurement
- Linear position measurement
- Machine-axis monitoring
- Motion-system feedback
- Test stand position acquisition
Event Counting
The counter/timers can count external digital events or pulses.
Typical event-counting applications include:
- Production counting
- Sensor pulse counting
- Rotational event counting
- Machine cycle counting
- Photon or detector pulse counting
- Digital event monitoring
Period Measurement
The PCIe-6612 can measure the period of incoming digital signals.
Period measurement is useful when characterizing repetitive signals or calculating frequency from timing information.
Pulse-Width Measurement
The device can measure the high or low duration of digital pulses.
Области применения включают:
- PWM characterization
- Sensor pulse measurement
- Digital timing verification
- Electronic device testing
- Pulse-width validation
Pulse Generation
The PCIe-6612 counters can generate programmable output pulses for stimulus, timing, triggering, and control applications.
Pulse-generation applications include:
- External triggering
- Device stimulus
- Timing reference generation
- Equipment synchronization
- Automated test control
Pulse-Train Generation
The PCIe-6612 can generate continuous or finite pulse trains according to the supported NI-DAQmx timing configuration.
Pulse trains can be used for:
- Stepper motor control signals
- Clock generation
- Frequency stimulus
- Digital timing references
- Test equipment synchronization
40 Bidirectional Digital I/O Channels
The PCIe-6612 provides 40 total bidirectional digital channels.
NI identifies these channels as:
- Port 0: P0.0 through P0.31
- Port 1: P1.0 through P1.7
- PFI 0 through PFI 39
Each terminal can be programmed individually as a digital input or digital output.
5 V TTL/CMOS-Compatible Digital I/O
The PCIe-6612 provides 5 V TTL/CMOS-compatible digital I/O.
This makes the device suitable for interfacing with many digital logic circuits, encoders, pulse-output sensors, electronic test devices, and timing systems.
Programmable Digital Debouncing Filters
The PCIe-6612 includes programmable digital filtering to help reject unwanted transitions and switch bounce on digital input signals.
NI specifies filter settings including:
- 160 ns
- 10.24 µs
- 5.12 ms
- Filter disabled
Digital filtering can be especially useful with mechanical switches, encoders, sensors, and electrically noisy pulse signals.
Three Simultaneous High-Speed DMA Transfers
The PCIe-6612 supports three simultaneous high-speed DMA transfers.
DMA allows hardware data to be transferred to and from system memory with reduced processor involvement, improving performance in hardware-timed measurement and generation applications.
Waveform Digital I/O
Port 0 supports hardware-timed waveform digital I/O for applications requiring synchronized digital acquisition or generation.
The waveform DIO architecture supports up to 32-bit digital samples.
Up to 10 MHz Digital Waveform Timing
The PCIe-6612 supports digital waveform input and output sample clocks up to approximately 10 MHz, depending on system and bus activity.
This capability is useful when digital patterns must be acquired or generated under hardware timing.
Technical Specifications
| Параметр | Спецификация |
|---|---|
| Product Type | Счетчик/Таймер |
| Модель | PCIe-6612 |
| Part Number | 782351-01 |
| Manufacturer | Национальные инструменты |
| Шинный интерфейс | PCI Express |
| Number of Counters/Timers | 8 |
| Frequency Measurement Range | 0 MHz to 80 MHz |
| Bidirectional Digital Channels | 40 |
| Digital I/O Logic | 5 V TTL/CMOS Compatible |
| Digital Channel Direction | Individually Programmable Input or Output |
| Digital Input Protection | -3 V to +8 V |
| Digital Pull-Down Resistor | 51 kΩ |
| Digital Output Impedance | 75 Ω |
| Waveform Digital I/O | Port 0, Up to 32 Bits |
| Maximum DI Sample Clock | Up to 10 MHz |
| Maximum DO Sample Clock | Up to 10 MHz |
| Digital Filter Settings | 160 ns / 10.24 µs / 5.12 ms / Disabled |
| DMA | 3 Simultaneous High-Speed DMA Transfers |
| Driver | НИ-DAQmx |
| Product Status | Active |
| Primary Applications | Encoder Measurement, Frequency Measurement, Event Counting, Pulse Measurement and Generation |
How Does the PCIe-6612 Work?
The PCIe-6612 detects the timing and state transitions of external digital signals using dedicated hardware counter/timer resources.
For measurement:
Encoder / Pulse Signal → Digital Input → Counter/Timer → PCI Express → Host Application
For generation:
Host Configuration → Counter/Timer → Hardware-Timed Pulse Output → External Device
Because critical timing operations occur in dedicated hardware, counter measurements can provide much more deterministic performance than software-based timing loops.
What Is a Counter/Timer Device?
A counter/timer device measures or generates digital events based on precise hardware timing.
Instead of simply reading a HIGH or LOW state, a counter can evaluate the timing relationship between signal transitions.
This enables measurements such as:
- How many pulses occurred?
- How fast are pulses arriving?
- How long is each pulse?
- What is the period of a signal?
- What is the position of an encoder?
- What pulse frequency should be generated?
Encoder Measurement
Encoder measurement is one of the primary applications of the PCIe-6612.
A typical system is:
Rotary Encoder → A/B/Z Signals → PCIe-6612 → Position / Direction / Speed Measurement
Depending on the encoder and measurement configuration, the counter/timer hardware can track position and motion information with hardware-based timing.
Quadrature Encoder Applications
Quadrature encoders commonly provide A and B signals that are phase shifted relative to one another.
The direction of movement can be determined from the phase relationship between the two signals, while pulse counting determines the position change.
Области применения включают:
- Motor position measurement
- Machine-axis monitoring
- Robot joint measurement
- Linear stage measurement
- Rotational test systems
Frequency Measurement
The PCIe-6612 can measure incoming signal frequency up to 80 MHz.
Typical frequency sources include:
- Pulse-output sensors
- Oscillator signals
- Encoder outputs
- Tachometer signals
- Electronic circuits
- Digital clock sources
Rotational Speed Measurement
Rotational speed can be calculated from pulses generated by an encoder, tachometer, or other rotational sensor.
A typical measurement chain is:
Rotating Shaft → Encoder / Tachometer → PCIe-6612 → Frequency / Pulse Count → RPM
The conversion between frequency and RPM depends on the number of pulses generated per revolution.
Event Counting
The PCIe-6612 can count external events represented by digital pulses.
Например:
Photoelectric Sensor → Product Passes Sensor → Pulse → PCIe-6612 Counter → Production Count
This can be used in industrial, laboratory, manufacturing, and scientific measurement applications.
Pulse-Width Measurement
Pulse-width measurement determines how long a digital signal remains in a particular state.
This capability is useful for:
- PWM duty-cycle analysis
- Digital control signal validation
- Sensor pulse characterization
- Electronic device testing
- Timing verification
Period Measurement
Period measurement determines the elapsed time between repetitive signal events.
Because frequency is the reciprocal of period, period measurement can also be useful for accurately measuring lower-frequency signals.
Pulse Generation
The PCIe-6612 can generate hardware-timed digital pulses with programmable timing characteristics.
Possible applications include:
- Trigger generation
- Clock generation
- Device stimulus
- Test sequence timing
- Equipment synchronization
PWM Generation
Programmable counter outputs can be configured to generate pulse signals suitable for compatible PWM-type applications.
The resulting output can be used as a timing or control signal where the electrical requirements match the 5 V digital output capabilities of the PCIe-6612.
Stepper Motor Pulse Generation
In compatible systems, counter/timer pulse generation can be used to create step or clock signals for an external stepper motor driver.
A simplified architecture is:
PCIe-6612 Pulse Output → Stepper Driver → Motor
The PCIe-6612 should control the appropriate external driver rather than directly driving the motor power circuitry.
Digital Debouncing
Mechanical switches and some sensors can produce multiple electrical transitions when changing state.
Without filtering, these unwanted transitions can be interpreted as additional events.
The programmable digital filters of the PCIe-6612 can help reject these short unwanted transitions before they reach the measurement logic.
Hardware-Timed Digital I/O
The PCIe-6612 provides more than static digital I/O. Port 0 supports waveform-based digital acquisition and generation.
This allows engineers to acquire or output digital patterns under hardware-clock control rather than changing lines individually using software timing.
40 Digital I/O Channels
The device provides 40 bidirectional digital channels, giving the PCIe-6612 substantial general-purpose digital interfacing capability in addition to its counter/timer functions.
These channels can support:
- Trigger inputs
- Trigger outputs
- Digital control
- Status monitoring
- Counter signal routing
- Hardware timing signals
- Digital pattern acquisition
- Digital pattern generation
PCIe-6612 vs PXIe-6612
The PCIe-6612 and PXIe-6612 provide closely related counter/timer capabilities but use different host platforms.
| Функция | PCIe-6612 | PXIe-6612 |
|---|---|---|
| Platform | PCI Express | PXI Express |
| Counter/Timers | 8 | 8 |
| Цифровой ввод-вывод | 40 | 40 |
| Logic Level | 5 V TTL | 5 V TTL |
| Maximum Frequency Measurement | 80 MHz | 80 MHz |
| Host Installation | Desktop / Industrial PC | Шасси PXI Express |
| Part Number | 782351-01 | 782352-01 |
| Best Application | PC-Based Counter/Timer Systems | Modular PXIe Test Systems |
PCIe-6612 vs Multifunction DAQ
| Функция | PCIe-6612 | Typical Multifunction DAQ |
|---|---|---|
| Primary Function | Counter / Timer | Analog Measurement |
| Counter/Timers | 8 | Typically Fewer |
| Frequency Measurement | Up to 80 MHz | Device Dependent |
| Encoder Measurement | Primary Application | Model Dependent |
| Цифровой ввод-вывод | 40 | Model Dependent |
| Analog Input | No | Typically Yes |
| Analog Output | No | Model Dependent |
| Best Fit | Timing / Pulse / Encoder Measurement | General Data Acquisition |
PCIe-6612 vs Basic Digital I/O Card
A basic digital I/O card normally reads or writes digital logic states. The PCIe-6612 adds dedicated counter/timer hardware for measuring precise timing relationships between digital transitions.
| Функция | PCIe-6612 | Basic Digital I/O |
|---|---|---|
| Static Digital I/O | Да | Да |
| Hardware Counters | 8 | Often Limited |
| Frequency Measurement | Up to 80 MHz | Usually Limited |
| Encoder Measurement | Да | Usually Requires Software or Extra Hardware |
| Pulse Generation | Hardware Timed | Model Dependent |
| Digital Debouncing | Programmable Filters | Model Dependent |
DMA Data Transfer
The PCIe-6612 can perform three simultaneous high-speed DMA transfers.
DMA is useful in applications involving continuous or hardware-timed measurements because data can move between the device and system memory without requiring the CPU to handle every individual sample.
68-Pin Connectivity
The PCIe-6612 uses a high-density connection architecture for its counter and digital I/O signals.
NI lists compatible connectivity accessories including:
- TBX-68
- BNC-2121
- SCB-68A
The appropriate connector block and cable should be selected according to the required signal types, wiring method, shielding, and physical installation.
BNC-2121 Applications
Земля BNC-2121 provides convenient BNC-based access to compatible counter/timer and digital signals.
It can be useful in laboratory environments where engineers frequently connect pulse generators, encoders, frequency sources, and measurement instruments through coaxial cables.
SCB-68A Applications
Земля SCB-68A provides a shielded terminal connection solution for wiring field signals to compatible NI hardware.
This type of terminal block is useful when a permanent wired installation is preferred over BNC connectivity.
NI-DAQmx Integration
The PCIe-6612 uses the НИ-DAQmx driver architecture for counter/timer and digital I/O applications.
NI-DAQmx can provide configuration for:
- Encoder measurements
- Подсчет событий
- Frequency measurement
- Period measurement
- Pulse-width measurement
- Генерация импульсов
- Pulse-train generation
- Цифровой ввод-вывод
- Hardware timing
- Запуск
LabVIEW Integration
The PCIe-6612 can be integrated into LabVIEW applications through compatible NI-DAQmx software.
A typical counter measurement workflow is:
Create Counter Task → Configure Measurement → Configure Input Terminal → Start Task → Read Measurement → Analyze / Log Result
For generation:
Create Counter Output Task → Configure Frequency / Duty Cycle → Start Output → Generate Pulse Train
Automated Test Applications
The PCIe-6612 can provide precise digital timing measurements and stimulus generation within automated test systems.
Applications can include:
- DUT frequency measurement
- Pulse-width verification
- PWM characterization
- Encoder simulation
- Clock generation
- Digital trigger generation
- Подсчет событий
- Timing validation
Industrial Motion Measurement
The device can be used with compatible encoders and pulse-output sensors for motion measurement.
Типичные применения включают:
- Motor speed measurement
- Shaft position measurement
- Conveyor speed monitoring
- Linear-axis position
- Machine movement measurement
Scientific and Laboratory Measurement
Counter/timer devices are also useful for scientific experiments that produce pulse, event, or frequency signals.
Examples include:
- Detector pulse counting
- Timing experiments
- Frequency characterization
- Pulse-source measurement
- Laboratory automation
How to Choose a Counter/Timer Device
Before selecting the PCIe-6612, evaluate:
- Required number of counters
- Maximum input frequency
- Encoder type
- Required position measurement
- Event-counting requirements
- Frequency and period measurement requirements
- Pulse-width measurement requirements
- Pulse-generation requirements
- Number of digital I/O channels
- Required digital logic level
- Digital filter requirements
- DMA requirements
- PCI Express slot availability
- Connector and terminal block requirements
- NI-DAQmx compatibility
Industries
- Automated Test
- Промышленная автоматизация
- Motion Measurement
- Electronic Validation
- Manufacturing Test
- Motor Testing
- Scientific Research
- Laboratory Automation
- Machine Monitoring
- Research and Development
Applications
Encoder Position Measurement
The PCIe-6612 can measure compatible encoder signals for position, direction, and motion applications.
Frequency Measurement
The device can measure digital signal frequencies up to 80 MHz for electronic, industrial, and laboratory applications.
Event Counting
External pulses can be counted using dedicated hardware counters for production, sensor, scientific, and automated test applications.
Pulse-Width Measurement
The PCIe-6612 can measure the duration of digital pulses for PWM, timing, and device validation applications.
Pulse and Pulse-Train Generation
Hardware counters can generate deterministic pulses and pulse trains for triggering, timing, clocking, and test stimulus applications.
Hardware-Timed Digital I/O
Port 0 supports waveform digital acquisition and generation for applications requiring hardware-clocked digital patterns.
Recommended Related Products
| PCIe-6612 | 8-counter PCI Express device with 40 digital I/O lines and frequency measurement up to 80 MHz. |
| PXIe-6612 | PXI Express version providing closely related 8-counter and 40-DIO functionality for modular test systems. |
| PCI-6602 | Legacy PCI counter/timer device for applications requiring multiple hardware counters in existing PCI systems. |
| PCI-6601 | Legacy counter/timer device for lower-channel-count PCI measurement applications. |
| BNC-2121 | BNC connector block for convenient laboratory access to counter/timer and digital signals. |
| SCB-68A | Shielded connector block for wiring compatible PCIe-6612 digital and counter signals. |
Why Choose PCIe-6612?
- 8 hardware counter/timers
- Up to 80 MHz frequency measurement
- Encoder position measurement
- Подсчет событий
- Period measurement
- Pulse-width measurement
- Генерация импульсов
- Pulse-train generation
- 40 bidirectional digital I/O channels
- 5 V TTL/CMOS-compatible I/O
- Programmable digital debounce filters
- Hardware-timed waveform DIO
- Up to 10 MHz waveform digital I/O
- Three simultaneous high-speed DMA transfers
- PCI Express interface
- NI-DAQmx support
Frequently Asked Questions
What is the NI PCIe-6612?
The NI PCIe-6612 is a PCI Express counter/timer device with eight hardware counters and 40 bidirectional digital I/O channels for encoder, pulse, frequency, timing, and digital applications.
What is the part number of PCIe-6612?
The NI ordering part number for the PCIe-6612 is 782351-01.
How many counters does PCIe-6612 have?
The PCIe-6612 provides 8 hardware counter/timers.
What is the maximum frequency measurement of PCIe-6612?
The PCIe-6612 supports frequency measurements up to 80 MHz.
How many digital I/O channels does PCIe-6612 provide?
The PCIe-6612 provides 40 bidirectional digital I/O channels.
What logic level does PCIe-6612 use?
The PCIe-6612 uses 5 V TTL/CMOS-compatible digital I/O.
Can PCIe-6612 measure an encoder?
Yes. Encoder position measurement is one of the primary applications of the PCIe-6612.
Can PCIe-6612 measure frequency?
Yes. It can perform hardware-based frequency measurement on compatible digital signals, with supported measurement frequencies up to 80 MHz.
Can PCIe-6612 measure pulse width?
Yes. The hardware counters support pulse-width measurement for timing, PWM, sensor, and electronic validation applications.
Can PCIe-6612 generate pulses?
Yes. The counters can generate individual pulses and pulse trains for triggering, timing, stimulus generation, and synchronization.
Does PCIe-6612 support digital filtering?
Yes. It includes programmable digital debouncing filters with settings including 160 ns, 10.24 µs, and 5.12 ms, as well as a disabled mode.
Does PCIe-6612 support hardware-timed digital I/O?
Yes. Port 0 supports waveform digital input and output with up to 32-bit sample widths and sample clocks up to approximately 10 MHz, subject to system and bus activity.
How many DMA transfers can PCIe-6612 perform?
The PCIe-6612 can perform three simultaneous high-speed DMA transfers.
What is the difference between PCIe-6612 and PXIe-6612?
The main difference is the host platform. PCIe-6612 installs in a PCI Express computer, while PXIe-6612 installs in a PXI Express chassis. Both provide eight counter/timers, 40 digital I/O channels, and up to 80 MHz frequency measurement capability.
Does PCIe-6612 have analog inputs?
No. The PCIe-6612 is primarily a counter/timer and digital I/O device. Applications requiring analog measurements should use an appropriate NI DAQ device in addition to or instead of the PCIe-6612.
Can PCIe-6612 control a motor directly?
No. The PCIe-6612 can generate compatible timing, pulse, encoder, or step signals, but motor power must be handled by an appropriate motor driver or controller.
What accessories can be used with PCIe-6612?
NI lists compatible connectivity options including the TBX-68, BNC-2121, and SCB-68A. The appropriate accessory should be selected according to the required signal connection and wiring architecture.
Is PCIe-6612 discontinued?
No. NI currently lists 782351-01 PCIe-6612 как Active product.
What should I check before purchasing PCIe-6612?
Verify the required number of counter/timers, maximum input frequency, encoder type, pulse and timing requirements, number of digital I/O lines, 5 V logic compatibility, digital filtering requirements, PCI Express slot availability, connection accessories, NI-DAQmx version, operating system compatibility, and application software.
Заключение
Земля NI PCIe-6612 Counter/Timer Device combines eight hardware counter/timers with 40 bidirectional 5 V digital I/O channels, frequency measurement capability up to 80 MHz, encoder acquisition, programmable digital filters, hardware-timed waveform DIO, pulse generation, and multiple high-speed DMA channels. These capabilities make the PCIe-6612 well suited for encoder position measurement, event counting, frequency and period measurement, pulse-width analysis, pulse generation, motion measurement, automated test, industrial timing, and electronic validation applications.
