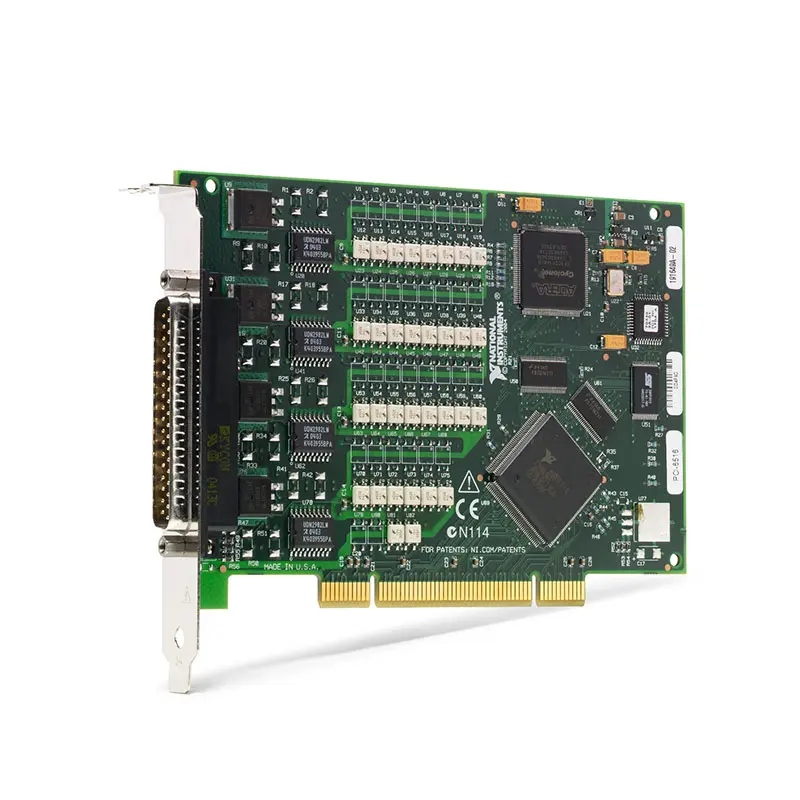

Product Introduction
Земля NI PCI-6516 является industrial digital I/O device designed for PCI-based automation, machine control, equipment monitoring, and automated test applications. It provides 32 digital input channels and 32 digital output channels, allowing a computer-based system to monitor industrial field signals and control external equipment through a single PCI interface.
The PCI-6516 belongs to the National Instruments industrial digital I/O family and is designed for applications that require electrical isolation and compatibility with industrial voltage levels. Its isolated architecture helps protect the host system from ground-potential differences, electrical noise, and transient disturbances commonly encountered in manufacturing and industrial environments.
With a total of 64 digital I/O channels, the PCI-6516 is suitable for factory automation, production test, machine monitoring, relay and actuator control, test fixtures, industrial equipment interfaces, and maintenance of existing PCI-based NI systems.
Product Overview
Земля National Instruments PCI-6516 provides high-density isolated digital input and output functionality for industrial computer-based systems.
A typical digital input architecture is:
Industrial Sensor / Switch / Machine Signal → PCI-6516 Digital Input → PCI Bus → Host Application
For digital control:
Host Application → PCI Bus → PCI-6516 Digital Output → External Control Circuit / Equipment
This combination allows one device to perform both equipment-status acquisition and digital control within an automated system.
Key Features
32 Digital Input Channels
The PCI-6516 provides 32 industrial digital input channels for monitoring external discrete signals.
Typical input sources include:
- Proximity sensors
- Limit switches
- Push buttons
- Equipment status contacts
- Machine-ready signals
- Alarm signals
- Interlock signals
- Production sensors
- Test fixture status signals
32 Digital Output Channels
The PCI-6516 provides 32 industrial digital output channels for controlling compatible external equipment and interface circuitry.
Типичные применения включают:
- Relay control
- Solenoid interface control
- Indicator control
- External logic control
- Test fixture sequencing
- Machine-control signals
- Alarm outputs
- Production equipment control
64 Total Digital I/O Channels
The combination of 32 digital inputs and 32 digital outputs provides 64 total digital I/O channels.
This channel density makes the PCI-6516 useful for applications where many discrete field signals must be monitored and controlled from a single industrial computer.
Industrial Digital I/O Architecture
Unlike general-purpose TTL digital I/O boards, the PCI-6516 is designed specifically for industrial digital interfacing.
This makes it suitable for connecting compatible industrial sensors, controllers, relays, machines, production fixtures, and other field equipment.
Electrical Isolation
Electrical isolation is an important feature of the PCI-6516 for industrial environments.
Isolation can help reduce problems associated with:
- Ground loops
- Ground-potential differences
- Electrical noise
- Switching transients
- Industrial machinery interference
- Multiple external power supplies
This can improve system robustness when connecting a computer to industrial field equipment.
Industrial Voltage Compatibility
The PCI-6516 is intended for industrial digital signals rather than only low-voltage TTL logic.
Before connecting external equipment, verify the exact input voltage thresholds, output voltage range, output current capability, external supply requirements, and isolation limits specified for the PCI-6516.
PCI Host Interface
The PCI-6516 installs directly into a compatible conventional PCI slot in a desktop, industrial, or rackmount computer.
This makes it particularly useful for existing manufacturing and automated test systems that continue to use PCI-based industrial computers.
NI-DAQmx Support
The PCI-6516 can be integrated into measurement and control applications through compatible НИ-DAQmx software.
NI-DAQmx provides functionality for device configuration, digital input, digital output, diagnostics, and application development.
Technical Specifications
| Параметр | Спецификация |
|---|---|
| Product Type | Industrial Digital I/O Device |
| Модель | PCI-6516 |
| Manufacturer | Национальные инструменты |
| Шинный интерфейс | PCI |
| Digital Input Channels | 32 |
| Digital Output Channels | 32 |
| Total Digital I/O | 64 Channels |
| Digital I/O Type | Industrial Digital I/O |
| Изоляция | Isolated I/O Architecture |
| Analog Input | No |
| Analog Output | No |
| Host Platform | PCI-Based Computer |
| Software | NI-DAQmx Compatible |
| Primary Function | Industrial Digital Monitoring and Control |
| Типичные применения | Automation, Machine Control, Production Test and Equipment Monitoring |
How Does the PCI-6516 Work?
The PCI-6516 acts as an electrical interface between industrial digital field signals and a PCI-based computer.
For input operations, the device detects the state of compatible external digital signals and makes those states available to the host application.
Field Signal → Isolated Digital Input → PCI-6516 → PCI Bus → Software
For output operations, application software commands the PCI-6516 to change the state of its digital output channels.
Software → PCI Bus → PCI-6516 → Digital Output → External Equipment
These functions can be combined to create computer-based monitoring and control systems.
What Is Industrial Digital I/O?
Industrial digital I/O provides an interface between computer-based control systems and discrete signals used by machines and automation equipment.
Digital signals normally represent two logical states such as:
- ON / OFF
- OPEN / CLOSED
- READY / BUSY
- RUN / STOP
- PASS / FAIL
- ALARM / NORMAL
- PRESENT / ABSENT
The PCI-6516 allows software to read these states from external equipment and generate corresponding digital control signals.
Why Use Isolated Digital I/O?
Industrial equipment frequently operates from electrical systems that differ from the ground reference of the host computer.
Directly connecting field equipment to nonisolated computer I/O can introduce unwanted current paths, electrical noise, and ground-loop problems.
An isolated industrial I/O device such as the PCI-6516 can provide additional electrical separation between field-side signals and the computer-based control system.
Digital Input Applications
The 32 digital inputs can monitor numerous machine and process states simultaneously.
A typical implementation could include:
DI 0 → Machine Ready
DI 1 → Product Present
DI 2 → Door Status
DI 3 → Limit Switch
DI 4 → Alarm Status
DI 5 → Cycle Complete
Additional channels can be assigned to other equipment states according to the application.
Digital Output Applications
The 32 digital outputs can provide control signals to compatible external circuitry.
A typical implementation could include:
DO 0 → Relay Enable
DO 1 → Status Indicator
DO 2 → Fixture Control
DO 3 → Machine Enable
DO 4 → Alarm Output
The connected load and external power architecture must comply with the electrical specifications of the PCI-6516.
Machine Monitoring
The PCI-6516 can be used in machine-monitoring systems to acquire discrete signals from industrial equipment.
Typical monitored conditions include:
- Machine operating state
- Cycle status
- Door and guard status
- Limit switch position
- Product detection
- Alarm conditions
- Fixture status
- Equipment-ready signals
Machine Control
The digital outputs can be incorporated into computer-based machine-control architectures.
Application software can evaluate input conditions and command outputs according to programmed control logic.
Например:
Read Sensor → Evaluate Condition → Update Digital Output → Control External Interface
Автоматизация производства
The combination of 32 inputs and 32 outputs makes the PCI-6516 suitable for factory automation applications requiring both monitoring and control.
Typical systems include:
- Assembly machines
- Упаковочное оборудование
- Производственные линии
- Automated inspection systems
- Material handling equipment
- Industrial test stations
- Manufacturing fixtures
Автоматизированные испытательные системы
The PCI-6516 can interface automated test software with test fixtures, devices under test, relays, sensors, and other digital equipment.
A typical test sequence can:
- Initialize the digital I/O device.
- Read fixture interlocks.
- Detect the device under test.
- Enable external equipment.
- Control fixture signals.
- Monitor DUT status outputs.
- Perform the required test sequence.
- Generate pass/fail signals.
- Return outputs to the required state.
Production Test
Production test systems often require many discrete control and status signals in addition to measurement instrumentation.
The PCI-6516 can provide digital interfacing for:
- Fixture control
- DUT presence detection
- Interlock monitoring
- Relay control
- Pass/fail indicators
- Alarm signals
- Test sequencing
- Production-line communication
Relay and Actuator Control
Digital outputs can be used to command compatible external relay or driver circuitry.
External interface hardware can then control equipment such as:
- Relays
- Контакторы
- Solenoids
- Indicators
- Valves
- Test fixtures
High-current or high-power loads should not be connected directly unless they are explicitly within the PCI-6516 output ratings. Appropriate external drivers, relays, or interface circuits should be used when required.
PCI-6516 vs PCI-6515
The PCI-6516 and PCI-6515 belong to the same NI industrial digital I/O family and both provide high-density input and output resources.
When selecting between these models, do not rely only on the channel count. The digital output architecture and electrical characteristics are important purchasing considerations.
| Функция | PCI-6516 | PCI-6515 |
|---|---|---|
| Platform | PCI | PCI |
| Digital Inputs | 32 | 32 |
| Digital Outputs | 32 | 32 |
| Total I/O | 64 | 64 |
| Application Type | Industrial Digital I/O | Industrial Digital I/O |
| Изоляция | Да | Да |
| Selection Requirement | Compare output type, field voltage, current capability, wiring and application requirements. | |
For an existing system, the PCI-6515 and PCI-6516 should not automatically be treated as interchangeable simply because both provide 32 inputs and 32 outputs. Verify the electrical specifications and wiring architecture before substitution.
PCI-6516 vs PCI-6514
The PCI-6514 is another member of the NI industrial digital I/O family.
When comparing PCI-6516 with PCI-6514, evaluate:
- Digital input channel count
- Digital output channel count
- Output architecture
- Input voltage requirements
- Output voltage and current requirements
- Isolation architecture
- Connector and cable requirements
- Existing application compatibility
PCI-6516 vs PCI-6529
The PCI-6529 is also designed for industrial digital I/O applications but uses a different channel and electrical architecture.
The correct model should be selected according to the required number of inputs and outputs, isolation requirements, field voltage, output type, and existing wiring.
PCI-6516 vs Standard TTL Digital I/O
| Функция | PCI-6516 | Standard TTL Digital I/O |
|---|---|---|
| Primary Application | Industrial Digital I/O | Low-Voltage Digital Logic |
| Изоляция | Да | Typically No |
| Industrial Field Signals | Designed for Industrial Applications | Often Requires Interface Hardware |
| Digital Inputs | 32 | Model Dependent |
| Digital Outputs | 32 | Model Dependent |
| Наилучшее использование | Machines and Automation Equipment | Electronic Logic Interfaces |
PCI-6516 vs Multifunction DAQ
The PCI-6516 is a dedicated digital I/O device rather than a conventional multifunction analog DAQ card.
| Функция | PCI-6516 | Multifunction DAQ |
|---|---|---|
| Analog Input | No | Typically Yes |
| Analog Output | No | Model Dependent |
| Digital Input | 32 Industrial DI | Model Dependent |
| Digital Output | 32 Industrial DO | Model Dependent |
| Industrial Isolation | Да | Model Dependent |
| Primary Function | Discrete Monitoring and Control | General Measurement and Control |
Industrial Wiring Considerations
Before installing the PCI-6516, verify the complete electrical architecture of the field wiring.
Important factors include:
- Field signal voltage
- Input switching thresholds
- Output voltage requirements
- Output current requirements
- External power supply requirements
- Isolation-bank wiring
- Load type
- Grounding
- Cable shielding
- Transient suppression
Inductive Load Protection
Relays, contactors, solenoids, and other inductive loads can generate voltage transients when switched.
Appropriate suppression devices and external interface circuitry should be used where required to protect the I/O hardware and improve system reliability.
NI-DAQmx Integration
The PCI-6516 can be configured and controlled using compatible НИ-DAQmx software.
A typical software workflow is:
Create Task → Configure Digital Channels → Start Task → Read Inputs / Write Outputs → Monitor Application → Stop Task
NI-DAQmx also provides hardware configuration and diagnostic functionality for supported systems.
LabVIEW Integration
The PCI-6516 can be incorporated into LabVIEW-based automation and test applications through compatible NI-DAQmx software.
Typical LabVIEW applications include:
- Industrial control interfaces
- Machine monitoring
- Automated test sequencing
- Fixture control
- Production monitoring
- Relay control
- Alarm monitoring
- Equipment status dashboards
Legacy PCI System Replacement
The PCI-6516 is particularly relevant for maintenance and repair of existing NI systems that use conventional PCI industrial computers.
When purchasing a PCI-6516 as a replacement, verify:
- Exact model number
- PCI slot availability
- 32 DI / 32 DO requirement
- Digital output architecture
- Field voltage requirements
- Output current requirements
- Isolation configuration
- Existing cable compatibility
- Terminal block compatibility
- NI-DAQmx version
- Operating system compatibility
- LabVIEW version
- Existing application software
Maintaining the same I/O architecture can reduce the amount of software, wiring, and fixture modification required when repairing a legacy test or automation system.
How to Choose an Industrial Digital I/O Device
Before selecting the PCI-6516, evaluate:
- Required digital input channel count
- Required digital output channel count
- Input voltage levels
- Output architecture
- Output voltage requirements
- Output current requirements
- Isolation requirements
- External power requirements
- PCI interface compatibility
- Connector and cable requirements
- Terminal block requirements
- NI-DAQmx compatibility
- Operating system compatibility
- Existing software requirements
Industries
- Промышленная автоматизация
- Автоматизация производства
- Manufacturing
- Automated Test
- Production Test
- Machine Building
- Electronic Manufacturing
- Мониторинг процессов
- Equipment Testing
- Research and Development
Applications
Автоматизация производства
The PCI-6516 provides high-density isolated digital I/O for monitoring and controlling discrete signals in factory automation systems.
Machine Monitoring
The 32 digital inputs can monitor machine states, sensors, switches, alarms, interlocks, and production equipment.
Machine Control
The 32 digital outputs can provide control signals to compatible external interface circuits, relays, indicators, fixtures, and automation equipment.
Automated Test
The PCI-6516 can connect automated test software with DUT status signals, test fixtures, relays, sensors, and other industrial digital equipment.
Production Test
Production systems can use the PCI-6516 for fixture control, product detection, interlock monitoring, test sequencing, and pass/fail signaling.
Legacy System Maintenance
The PCI interface makes the PCI-6516 particularly useful when maintaining existing computer-based automation systems where changing the original hardware architecture would require significant redesign.
Recommended Related Products
| PCI-6516 | Industrial PCI digital I/O device with 32 digital inputs and 32 digital outputs. |
| PCI-6515 | Related 32-input, 32-output industrial digital I/O device with different output electrical characteristics. |
| PCI-6514 | Related NI industrial digital I/O device for machine monitoring and control applications. |
| PCI-6511 | Industrial PCI digital I/O option for applications requiring a different I/O configuration. |
| PCI-6529 | Related industrial digital I/O device for isolated monitoring and control applications. |
| PXI-6515 | PXI-based industrial digital I/O option for modular test and automation systems. |
Why Choose PCI-6516?
- 32 industrial digital inputs
- 32 industrial digital outputs
- 64 total digital I/O channels
- Isolated industrial I/O architecture
- Designed for machine and field signals
- PCI host interface
- NI-DAQmx integration
- LabVIEW compatibility
- Suitable for factory automation
- Suitable for machine monitoring
- Suitable for machine control
- Suitable for automated test
- Suitable for production test
- Useful for legacy PCI system maintenance
Frequently Asked Questions
What is the NI PCI-6516?
The NI PCI-6516 is an industrial digital I/O device designed for PCI-based automation and test systems. It provides isolated digital input and output functionality for monitoring and controlling industrial field signals.
How many digital inputs does PCI-6516 have?
The PCI-6516 provides 32 digital input channels.
How many digital outputs does PCI-6516 have?
The PCI-6516 provides 32 digital output channels.
How many total I/O channels does PCI-6516 provide?
The PCI-6516 provides 64 total digital I/O channels, consisting of 32 inputs and 32 outputs.
Is PCI-6516 isolated?
Yes. The PCI-6516 is designed with isolated industrial digital I/O for applications where electrical separation between field signals and the computer is important.
Does PCI-6516 have analog inputs?
No. The PCI-6516 is a dedicated digital I/O device and does not provide conventional analog input channels.
Does PCI-6516 have analog outputs?
No. The PCI-6516 provides digital outputs rather than analog voltage output channels.
What is the difference between PCI-6516 and PCI-6515?
Both devices provide 32 digital inputs and 32 digital outputs and are designed for industrial digital I/O applications. However, their output electrical characteristics and architecture differ. The correct model should therefore be selected according to the external load, field voltage, current requirements, and existing wiring rather than channel count alone.
Can PCI-6516 be used for machine monitoring?
Yes. Its 32 digital inputs can monitor compatible machine-state signals, sensors, switches, alarms, and interlocks.
Can PCI-6516 control relays?
The digital outputs can be used to control compatible relay or interface circuitry. External drivers or relays should be used when the load exceeds the electrical capabilities of the PCI-6516.
Can PCI-6516 control motors directly?
High-power motors should not be connected directly to the PCI-6516. Appropriate motor controllers, contactors, relays, or interface circuitry should be used between the digital I/O device and the load.
Can PCI-6516 be used with LabVIEW?
Yes. The PCI-6516 can be integrated into compatible LabVIEW and NI-DAQmx applications for digital monitoring, automation, control, and automated testing.
Is PCI-6516 suitable for factory automation?
Yes. Its high-density isolated digital input and output architecture makes it suitable for factory automation, machine control, equipment monitoring, production testing, and industrial test applications.
Can PCI-6516 be used for emergency-stop safety control?
The PCI-6516 can monitor compatible status and interlock signals, but general-purpose digital I/O hardware should not be used as the sole safety controller for safety-critical functions unless the complete system is appropriately designed and certified. Safety-critical applications should use the required safety-rated hardware.
What should I check before purchasing PCI-6516?
Verify the exact 32 DI and 32 DO requirements, digital output architecture, field voltage, output current requirements, isolation, PCI slot compatibility, external power requirements, cables, terminal blocks, NI-DAQmx version, operating system, and existing application compatibility.
Can PCI-6516 directly replace PCI-6515?
Not automatically. Although both models provide 32 digital inputs and 32 digital outputs, their electrical output characteristics can differ. Verify the output type, voltage, current, connector pinout, field wiring, external power supply, and application requirements before replacing one model with the other.
Заключение
Земля NI PCI-6516 Industrial Digital I/O Device provides 32 digital inputs and 32 digital outputs for PCI-based industrial automation, machine monitoring, equipment control, and automated test systems. Its isolated industrial I/O architecture and high channel density make it suitable for factory automation, production testing, test fixtures, machine interfaces, and maintenance of existing NI PCI-based control systems.
