Product Introduction

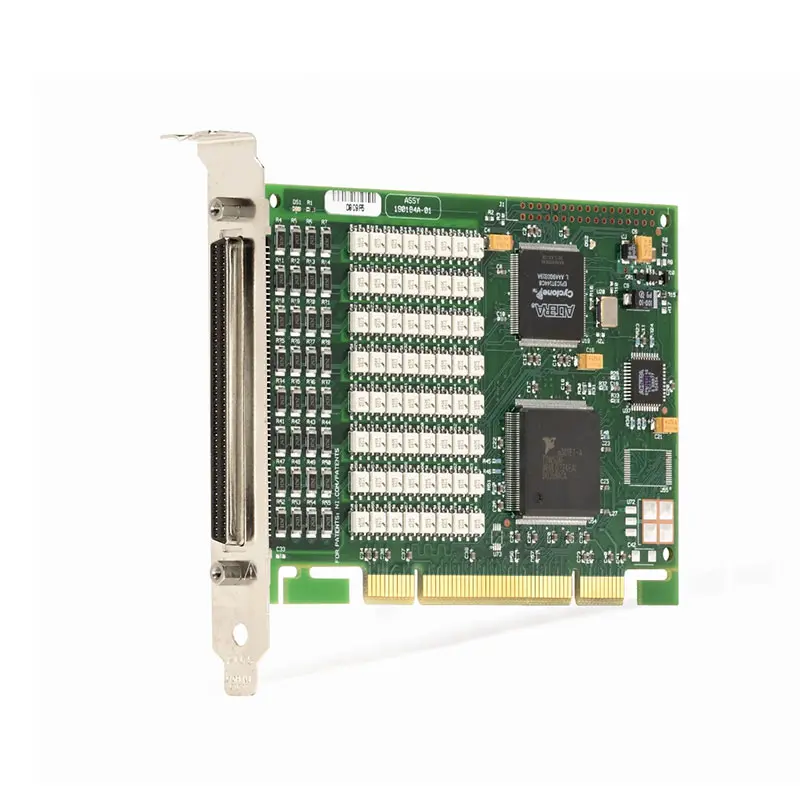

Земля NI PCI-6511 является industrial digital I/O device designed for PCI-based automation, machine control, production test, equipment monitoring, and automated test applications.
The PCI-6511 provides 32 digital input channels and 32 digital output channels, giving a total of 64 industrial digital I/O channels. Its digital output architecture uses current-sourcing outputs, making it suitable for industrial control systems that require source-type field signaling.
With bank isolation, industrial voltage compatibility, programmable power-up states, and watchdog functionality, the PCI-6511 is particularly useful for factory automation, machine interfaces, test fixtures, relay control, production systems, and maintenance of existing PCI-based NI installations.
Product Overview
Земля National Instruments PCI-6511 belongs to the NI 651x family of isolated industrial digital I/O devices.
A typical input architecture is:
Industrial Sensors / Switches / Machine Signals → PCI-6511 Digital Inputs → PCI Bus → Host Application
For digital control:
Host Application → PCI Bus → PCI-6511 Source Outputs → External Load / Control Circuit
This architecture allows one PCI device to monitor equipment states and control industrial output loads or interface circuitry.
Key Features
32 Industrial Digital Inputs
The PCI-6511 provides 32 isolated digital input channels for monitoring compatible industrial field signals.
Typical input applications include:
- Limit switches
- Proximity sensors
- Push buttons
- Machine-ready signals
- Alarm contacts
- Interlock signals
- Fixture status signals
- Production equipment outputs
32 Current-Sourcing Digital Outputs
The PCI-6511 provides 32 current-sourcing digital output channels.
The source-output architecture is one of the most important electrical characteristics of the PCI-6511 because it determines how external loads, field power supplies, and common connections must be wired.
Typical output applications include:
- Relay control
- Indicator control
- Machine sequencing
- External logic control
- Fixture control
- Alarm output
- Industrial actuator interfacing
- Production test control
64 Total Digital I/O Channels
The PCI-6511 provides 64 total dedicated digital channels:
- 32 digital inputs
- 32 digital outputs
This high channel density makes the device suitable for industrial systems where many discrete status and control signals must be managed from one computer.
Current-Sourcing Output Architecture
The PCI-6511 uses source-type semiconductor digital outputs.
In a typical source-output circuit, the digital output provides current to the connected load.
A simplified architecture is:
PCI-6511 Source Output → Load → Field Ground / Return
This differs from a sinking output device, where current flows from the external supply through the load into the output channel.
Industrial Digital Input Architecture
The digital inputs are intended for industrial field signals rather than only low-level TTL logic.
They can be used with compatible industrial sensors and discrete control signals when the field voltage, common wiring, and electrical limits meet the PCI-6511 specifications.
Bank-Isolated I/O
The PCI-6511 uses a bank-isolated digital I/O architecture.
Isolation helps reduce problems associated with:
- Ground loops
- Ground-potential differences
- Electrical noise
- Switching transients
- Motor and drive interference
- Multiple external power systems
This makes the PCI-6511 more appropriate for industrial automation than many conventional nonisolated digital I/O boards.
Programmable Power-Up States
The PCI-6511 supports programmable power-up states.
This allows output states to be predefined when the host system starts.
Power-up configuration is useful when connected equipment should remain in a known state during computer startup.
Digital I/O Watchdog
The PCI-6511 supports digital I/O watchdog functionality.
If the host application stops responding, watchdog logic can place the outputs into predefined states.
This is valuable in machine control and automated test systems where output behavior should remain predictable during a software or communication fault.
PCI Host Interface
The PCI-6511 installs into a compatible conventional PCI slot in a desktop, industrial, or rackmount computer.
Its PCI interface makes it particularly relevant for maintaining legacy industrial automation and automated test systems.
NI-DAQmx Integration
The PCI-6511 can be configured and controlled using compatible НИ-DAQmx software.
NI-DAQmx provides functionality for:
- Digital input
- Digital output
- Channel configuration
- Device diagnostics
- Power-up state configuration
- Watchdog configuration
- Интеграция LabVIEW
Technical Specifications
| Параметр | Спецификация |
|---|---|
| Product Type | Industrial Digital I/O Device |
| Модель | PCI-6511 |
| Manufacturer | Национальные инструменты |
| Шинный интерфейс | PCI |
| Digital Input Channels | 32 |
| Digital Output Channels | 32 |
| Total Digital I/O | 64 Channels |
| Digital Output Type | Current-Sourcing |
| Digital Input Type | Industrial Digital Input |
| Изоляция | Bank-Isolated |
| Programmable Power-Up States | Supported |
| Digital I/O Watchdog | Supported |
| Analog Input | No |
| Analog Output | No |
| Driver | НИ-DAQmx |
| Primary Function | Industrial Digital Monitoring and Source-Type Control |
| Типичные применения | Factory Automation, Machine Control, Production Test and Equipment Monitoring |
How Does the PCI-6511 Work?
The PCI-6511 provides an isolated interface between industrial digital signals and a PCI-based computer.
For input monitoring:
Sensor / Switch / Equipment Signal → Isolated Digital Input → PCI-6511 → PCI Bus → Software
For output control:
Software → PCI Bus → PCI-6511 Source Output → External Load
The host application can continuously monitor machine states and update output channels according to the programmed automation or test sequence.
What Is a Sourcing Digital Output?
A sourcing digital output supplies current toward the external load when the output is active.
A simplified current path is:
PCI-6511 Output → Load → Field Return
This architecture is commonly used with industrial control equipment and should be matched to the field-side device wiring.
Source vs Sink Digital Outputs
| Тип вывода | Typical Current Path | Selection Consideration |
|---|---|---|
| Source | Output → Load → Return | Used when the field device requires sourcing control |
| Sink | Supply → Load → Output | Used when the field device requires sinking control |
The PCI-6511 uses source outputs. This makes output architecture an important factor when replacing another NI 651x device.
Industrial Sensor Monitoring
The 32 digital inputs can monitor discrete field signals from compatible industrial equipment.
Типичные применения включают:
- Machine ready
- Cycle complete
- Product present
- Door open or closed
- Alarm active
- Fixture locked
- Limit reached
- Equipment interlock status
Machine Control
The 32 sourcing outputs can provide industrial control signals to compatible external interface circuits.
A typical control flow is:
Read Inputs → Evaluate Logic → Update Outputs → Control External Equipment
This makes the PCI-6511 useful for computer-based machine and production equipment control.
Автоматизация производства
The PCI-6511 can be used in factory automation systems requiring both discrete monitoring and source-type digital control.
Typical systems include:
- Assembly equipment
- Packaging machines
- Производственные линии
- Automated inspection equipment
- Системы обработки материалов
- Industrial test stands
- Manufacturing fixtures
Автоматизированные испытательные системы
The PCI-6511 can interface automated test software with fixtures, devices under test, sensors, and control circuitry.
A typical automated test sequence can:
- Initialize the PCI-6511.
- Read fixture and safety status signals.
- Detect the device under test.
- Activate required digital outputs.
- Control relays or external interface circuitry.
- Monitor DUT status signals.
- Evaluate pass/fail conditions.
- Return outputs to a defined state.
Production Test
Production test stations can use the PCI-6511 for:
- Fixture control
- DUT presence detection
- Interlock monitoring
- Relay control
- Pass/fail indication
- Alarm monitoring
- Machine sequencing
- Production line integration
Relay and Actuator Control
The PCI-6511 can control compatible relay, indicator, and actuator interface circuitry using its sourcing digital outputs.
High-current or high-power devices should be controlled through appropriate external interfaces such as:
- Industrial relays
- Solid-state relays
- External transistor drivers
- Контакторы
- Dedicated actuator controllers
The connected load should always remain within the output voltage and current ratings of the PCI-6511.
Inductive Load Protection
Relays, solenoids, contactors, and other inductive loads can generate voltage transients when switched.
Appropriate suppression should be used when required, including:
- Flyback diodes
- RC snubbers
- Transient suppressors
- External relay interfaces
The suppression method should be selected according to the load and field wiring architecture.
PCI-6511 vs PCI-6510
The PCI-6511 and PCI-6510 belong to the same NI industrial digital I/O family, but their I/O configurations differ.
When selecting between them, verify:
- Digital input channel count
- Digital output channel count
- Source or sink output type
- Field voltage requirements
- Output current requirements
- Existing wiring
- Connector compatibility
PCI-6511 vs PCI-6515
The PCI-6511 and PCI-6515 both provide 32 digital inputs and 32 digital outputs, but the output architecture differs.
| Функция | PCI-6511 | PCI-6515 |
|---|---|---|
| Digital Inputs | 32 | 32 |
| Digital Outputs | 32 | 32 |
| Total I/O | 64 | 64 |
| Output Architecture | Source | Sink |
| Изоляция | Bank-Isolated | Bank-Isolated |
| Primary Selection Factor | Source Output Requirement | Sink Output Requirement |
This source-versus-sink difference is critical. The PCI-6511 and PCI-6515 should not be treated as direct substitutes without checking field wiring and connected load requirements.
PCI-6511 vs PCI-6514
The PCI-6511 and PCI-6514 are related source-output industrial digital I/O devices.
When comparing these models, verify:
- Channel configuration
- Output electrical characteristics
- Isolation requirements
- Field voltage
- Output current
- Connector and cable requirements
- Driver compatibility
PCI-6511 vs Standard TTL Digital I/O
| Функция | PCI-6511 | Standard TTL Digital I/O |
|---|---|---|
| Primary Application | Industrial Digital I/O | Low-Voltage Logic |
| Изоляция | Bank-Isolated | Typically No |
| Source Outputs | Да | Usually Logic-Level Only |
| Industrial Field Signals | Designed for Industrial Use | Often Requires Interface Hardware |
| Programmable Power-Up States | Supported | Model Dependent |
| Watchdog | Supported | Model Dependent |
PCI-6511 vs Multifunction DAQ
| Функция | PCI-6511 | Typical Multifunction DAQ |
|---|---|---|
| Analog Input | No | Typically Yes |
| Analog Output | No | Model Dependent |
| Digital Inputs | 32 Industrial DI | Model Dependent |
| Digital Outputs | 32 Source DO | Model Dependent |
| Industrial Isolation | Да | Often No |
| Primary Function | Industrial Monitoring and Control | General Data Acquisition |
Industrial Wiring Considerations
Before installing the PCI-6511, verify the complete field wiring architecture.
Important factors include:
- Field signal voltage
- Input switching thresholds
- Output supply voltage
- Output current requirements
- Source-output wiring
- Common connections
- Isolation-bank configuration
- Load type
- Grounding
- Transient suppression
Programmable Power-Up States
Power-up states allow output channels to start in predefined conditions when the computer powers on.
Typical uses include:
- Keeping relays disabled at startup
- Preventing unintended machine activation
- Holding alarms in a defined state
- Maintaining fixture outputs in a safe configuration
Watchdog-Based Fault Handling
The PCI-6511 watchdog can help manage output behavior if the host application or communication fails.
In a correctly designed system, output channels can transition to configured states instead of remaining indefinitely at the previous command.
This is particularly useful in automated test and machine-control systems.
NI-DAQmx Integration
The PCI-6511 can be controlled with compatible НИ-DAQmx software.
A typical software workflow is:
Create Task → Configure Digital Channels → Start Task → Read Inputs / Write Outputs → Monitor System → Stop Task
NI-DAQmx can also support power-up state and watchdog configuration on compatible hardware and software versions.
LabVIEW Integration
The PCI-6511 can be integrated into compatible LabVIEW-based industrial automation and automated test applications.
Типичные применения включают:
- Machine monitoring
- Управление машиной
- Test fixture automation
- Production test sequencing
- Relay control
- Alarm monitoring
- Equipment status dashboards
- Автоматизация производства
Legacy System Replacement
The PCI-6511 is especially relevant for maintaining existing PCI-based industrial and automated test systems.
When replacing an existing PCI-6511, verify:
- Exact model number
- PCI slot compatibility
- 32 DI / 32 DO requirement
- Source output requirement
- Field voltage
- Output current
- Isolation-bank configuration
- Existing cable compatibility
- Terminal block compatibility
- NI-DAQmx version
- Operating system compatibility
- LabVIEW or application software version
A similar NI 651x model should not automatically be treated as a drop-in replacement because source/sink architecture and electrical specifications may differ.
How to Choose an Industrial Digital I/O Device
Before selecting the PCI-6511, evaluate:
- Required digital input count
- Required digital output count
- Source or sink output requirement
- Input voltage range
- Output voltage requirements
- Output current requirements
- Isolation requirements
- Power-up state requirements
- Watchdog requirements
- PCI interface compatibility
- Cable and terminal block requirements
- NI-DAQmx compatibility
- Operating system compatibility
Industries
- Промышленная автоматизация
- Автоматизация производства
- Manufacturing
- Automated Test
- Production Test
- Machine Building
- Electronic Manufacturing
- Мониторинг процессов
- Equipment Testing
- Research and Development
Applications
Автоматизация производства
The PCI-6511 can monitor industrial sensors and control source-type digital loads in computer-based factory automation systems.
Machine Monitoring
The 32 digital inputs can monitor switches, sensors, alarms, interlocks, and machine-state signals.
Machine Control
The 32 sourcing outputs can control compatible industrial interface circuits and external equipment.
Automated Test
The PCI-6511 can interface test software with fixtures, DUT status signals, relays, sensors, and other digital equipment.
Production Test
Production systems can use the PCI-6511 for fixture control, interlock monitoring, product detection, digital sequencing, and pass/fail signaling.
Legacy System Maintenance
The PCI interface and established NI software architecture make the PCI-6511 useful for maintaining existing industrial systems without redesigning the complete I/O architecture.
Recommended Related Products
| PCI-6511 | Industrial PCI digital I/O device with 32 digital inputs and 32 current-sourcing digital outputs. |
| PCI-6515 | Related 32 DI / 32 DO industrial digital I/O device using current-sinking outputs. |
| PCI-6514 | Related source-output industrial digital I/O device for automation and machine control applications. |
| PCI-6519 | 16 DI / 16 sink DO industrial digital I/O device for lower-channel-count applications. |
| PCI-6520 | Industrial digital I/O device with relay outputs for applications requiring contact-based switching. |
Why Choose PCI-6511?
- 32 industrial digital inputs
- 32 current-sourcing digital outputs
- 64 total digital I/O channels
- Bank-isolated architecture
- Industrial field-signal compatibility
- Programmable power-up states
- Digital I/O watchdog
- PCI host interface
- NI-DAQmx integration
- LabVIEW compatibility
- Suitable for factory automation
- Suitable for machine control
- Suitable for production test
- Suitable for automated test
- Useful for legacy PCI system maintenance
Frequently Asked Questions
What is the NI PCI-6511?
The NI PCI-6511 is a bank-isolated industrial digital I/O device for PCI-based computers, providing 32 digital inputs and 32 current-sourcing digital outputs.
How many digital inputs does PCI-6511 have?
The PCI-6511 provides 32 digital input channels.
How many digital outputs does PCI-6511 have?
The PCI-6511 provides 32 digital output channels.
How many total digital channels does PCI-6511 provide?
The PCI-6511 provides 64 total digital channels, consisting of 32 inputs and 32 outputs.
What type of outputs does PCI-6511 use?
The PCI-6511 uses current-sourcing digital outputs.
Is PCI-6511 isolated?
Yes. The PCI-6511 uses a bank-isolated industrial digital I/O architecture.
Does PCI-6511 support programmable power-up states?
Yes. Programmable power-up states can be used to define initial output conditions when the system starts.
Does PCI-6511 support a watchdog?
Yes. Digital I/O watchdog functionality can help transition outputs to predefined states if the host application stops responding.
Does PCI-6511 have analog inputs?
No. The PCI-6511 is a dedicated industrial digital I/O device and does not provide conventional analog input channels.
Does PCI-6511 have analog outputs?
No. It provides digital source outputs rather than analog voltage outputs.
What is the difference between PCI-6511 and PCI-6515?
Both provide 32 digital inputs and 32 digital outputs, but the output architecture differs. PCI-6511 uses source outputs, while PCI-6515 uses sink outputs. The correct model should therefore be selected according to the field wiring and connected load.
Can PCI-6511 control relays?
Yes. The sourcing digital outputs can control compatible relay or interface circuitry when the voltage and current requirements remain within the device specifications. External drivers should be used for higher-power loads.
Can PCI-6511 directly control motors?
High-power motors should not be driven directly from the PCI-6511. Use an appropriate external motor controller, contactor, relay, or driver.
Can PCI-6511 be used for factory automation?
Yes. Its 32 inputs, 32 sourcing outputs, isolation, watchdog, and programmable power-up states make it suitable for many industrial automation and machine-control applications.
Can PCI-6511 be used with LabVIEW?
Yes. The PCI-6511 can be integrated into compatible LabVIEW applications through NI-DAQmx.
What should I check before purchasing PCI-6511?
Verify the 32 DI / 32 DO requirement, sourcing output architecture, field voltage, output current requirements, isolation, power-up and watchdog needs, PCI slot compatibility, existing cabling, terminal blocks, NI-DAQmx version, operating system, and application software.
Can PCI-6511 directly replace PCI-6515?
No, not automatically. Although both models have 32 inputs and 32 outputs, PCI-6511 uses source outputs while PCI-6515 uses sink outputs. Verify the complete field wiring and load architecture before substitution.
Заключение
Земля NI PCI-6511 Industrial Digital I/O Device provides 32 isolated digital inputs and 32 current-sourcing digital outputs for PCI-based industrial automation and test systems. Its high channel density, bank isolation, programmable power-up states, watchdog functionality, and source-output architecture make it suitable for machine monitoring, factory automation, equipment control, production test, automated test, and maintenance of legacy NI PCI systems.
