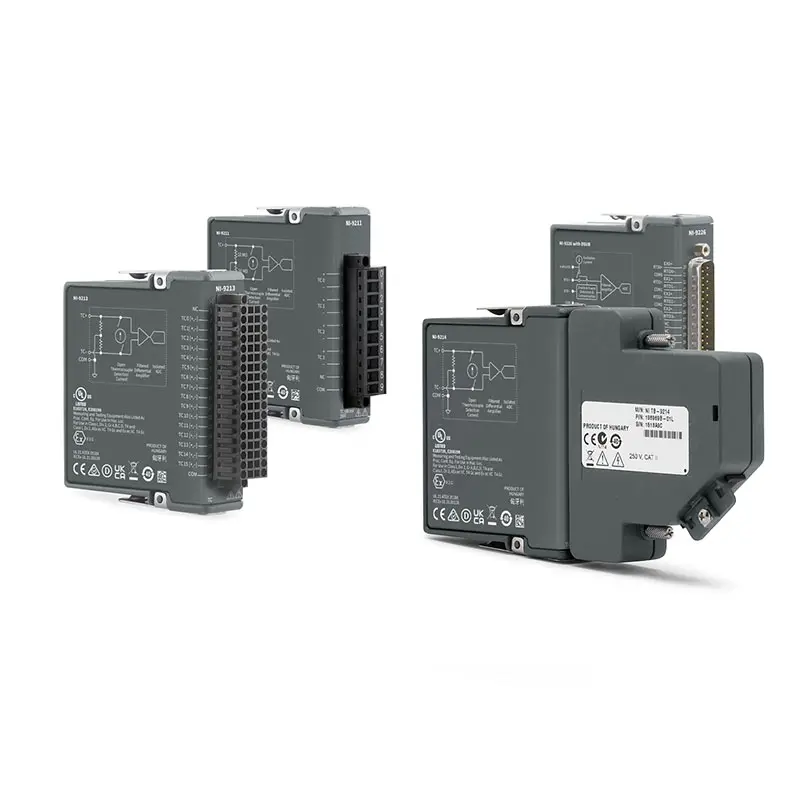

NI-9214

The NI‑9214 is a high-density thermocouple input module that is designed for higher channel count systems. The NI‑9214 includes features to increase overall accuracy, such as CJC sensors in the terminal block, component layout to minimize thermal gradients, and an autozero channel for offset error compensation.

Applications and Use Cases of NI-9214

The NI-9214 C Series Thermocouple Input Module is a C Series module designed for thermocouple-based temperature measurement. Она предоставляет high-channel density, built-in cold junction compensation (CJC), and high noise rejection, что делает его идеальным для приложений, требующих accurate and scalable temperature monitoring.

1. Измерение температуры термопарой
NI-9214 is used to measure temperature from various thermocouple types (J, K, T, E, N, etc.), enabling accurate monitoring across a wide temperature range.

2. Multi-Point Temperature Monitoring
With high channel count, it is ideal for applications requiring temperature measurement at multiple locations simultaneously.

3. Мониторинг промышленных процессов
Widely used in industrial environments to monitor temperature in processes such as manufacturing, heating systems, and chemical production.

4. Environmental & Thermal Testing
Applied in environmental chambers and thermal testing setups to monitor temperature distribution and system behavior.

5. Системы сбора данных (DAQ)
Integrated into CompactDAQ and CompactRIO platforms for centralized temperature data collection.

6. Автоматизированное испытательное оборудование (АИО)
Used in testing systems to validate thermal performance of devices and systems.

7. Научные и лабораторные применения
Used in laboratories for thermal experiments, system validation, and data analysis.
