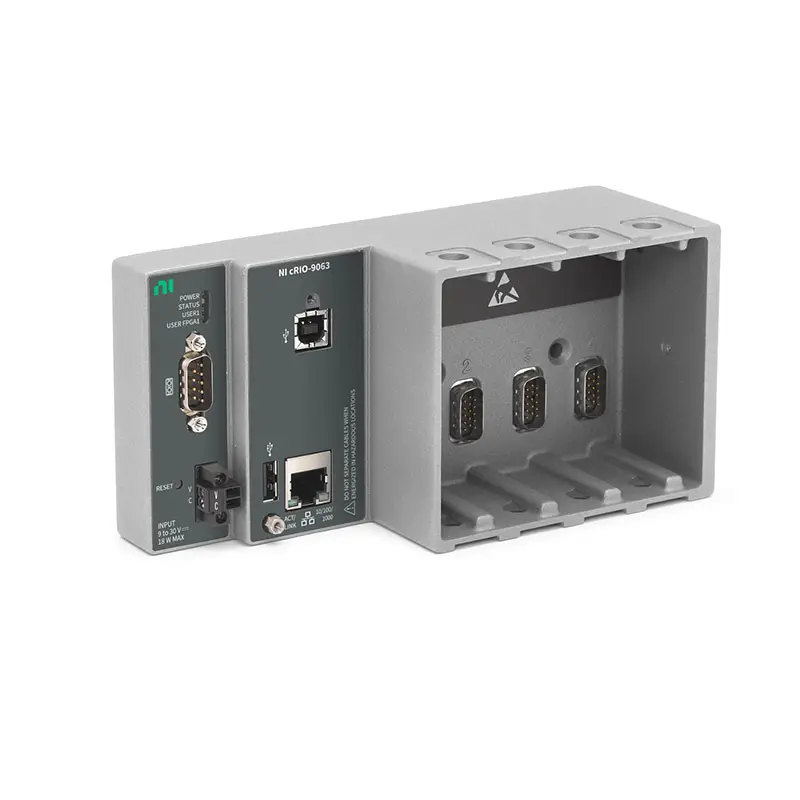

Земля NI cRIO-9063 прочный Компактный встраиваемый контроллер CompactRIO с 4 слотами designed for industrial automation, embedded monitoring, distributed measurement, and real-time control applications. It combines a двухъядерный процессор ARM Cortex-A9, а ПЛИС Xilinx Zynq-7020, модульный Ввод-вывод серии C, и NI Linux Real-Time into a compact industrial platform optimized for deterministic embedded systems.
Unlike traditional PLC systems that separate CPU and FPGA hardware, the cRIO-9063 integrates both processing architectures into a single Zynq SoC platform. This allows engineers to implement deterministic timing, FPGA-based signal processing, embedded Linux applications, and industrial communication within one compact controller.
Типичные применения включают:
- Промышленная автоматизация
- Встроенное управление машинами
- Распределенный сбор данных
- Мониторинг состояния оборудования
- Дистанционные системы измерений
- Промышленные IoT-узлы периферийных вычислений
- Встраиваемые тестовые системы
- Мониторинг энергопотребления
Архитектура процессора и ПЛИС
The cRIO-9063 is built around:
- 667 MHz dual-core ARM Cortex-A9 processor
- ПЛИС Xilinx Zynq-7020
- 256 MB DRAM
- 512 MB nonvolatile storage
- 4-слотовая компактная архитектура cRIO
- Операционная система NI Linux Real-Time
The integrated Zynq-7020 FPGA enables:
- Детерминированное аппаратное таймирование
- Логика триггера на основе FPGA
- Высокоскоростная цифровая обработка
- Синхронизация кодера
- Embedded coprocessing
- Real-time industrial control
- Custom FPGA applications
- Hardware-level signal processing
Compared with older CompactRIO controllers using separate processor and FPGA architectures, the Zynq platform reduces communication latency and improves embedded integration efficiency.
NI Linux Real-Time and Embedded Flexibility
One major advantage of the cRIO-9063 is its support for NI Linux Real-Time, allowing engineers to combine deterministic control with Linux-based software development.
This enables support for:
- LabVIEW Real-Time
- LabVIEW FPGA
- Разработка на C/C++
- Интеграция Python
- Сторонние библиотеки Linux
- Удалённый доступ по SSH
- Embedded edge applications
Compared with closed PLC environments, the cRIO-9063 offers significantly greater software flexibility for custom industrial systems.
Модульное расширение серии C
Контроллер поддерживает до 4 модуля серии NI C, позволяя гибко интегрировать:
- Аналоговый ввод/вывод
- Цифровой ввод-вывод
- Измерение температуры
- Измерение деформации и растяжения
- Запись вибрации
- CAN связь
- Последовательная связь
- Промышленные коммуникационные интерфейсы
The cRIO-9063 can simultaneously operate as:
- Детерминированный промышленный контроллер
- Распределенный узел сбора данных
- An FPGA edge processing system
Its 4-slot architecture is suitable for compact embedded systems where space, power consumption, and deployment size are important.
Связь и промышленный дизайн
The cRIO-9063 provides:
- 1× tri-speed Gigabit Ethernet port
- USB host port
- USB device port
- RS-232 serial interface
- Слот для карт SDHC
Промышленные особенности включают:
- -20 °C to 55 °C operating range
- Fanless rugged design
- DIN-rail and panel mounting support
- Защита IP40
- 9 VDC to 30 VDC input range
These features make the cRIO-9063 suitable for industrial cabinets, embedded machinery, remote monitoring stations, and distributed industrial deployments.
Промышленные применения
Мониторинг состояния оборудования
Using vibration and analog modules, engineers can build predictive maintenance systems for motors, pumps, rotating machinery, and industrial equipment.
Embedded Industrial Automation
The combination of FPGA timing and NI Linux Real-Time allows deterministic machine control, synchronized triggering, and embedded industrial logic execution.
Distributed Measurement Systems
The cRIO-9063 can operate as a remote acquisition node for synchronized industrial measurements and network-based monitoring systems.
Embedded Test Platforms
The compact 4-slot architecture makes it suitable for embedded test systems requiring mixed-signal acquisition, serial communication, and deterministic control.
Сравнение с аналогичными моделями
| Модель | Основное различие | Типичное использование |
|---|---|---|
| cRIO-9064 | More storage and memory | Larger embedded applications |
| cRIO-9065 | Extended temperature version | Harsh industrial environments |
| cRIO-9055 | Artix-7 FPGA platform | Newer distributed systems |
| cRIO-9041 | Kintex-7 FPGA platform | Higher FPGA performance |
| cRIO-9053 | UltraScale FPGA platform | Advanced FPGA applications |
Compared with the newer cRIO-905x series, the cRIO-9063 uses an earlier Zynq architecture but remains highly suitable for compact embedded control and distributed acquisition applications.
По сравнению с cRIO-9041 или cRIO-9053, the cRIO-9063 is more focused on compact embedded Linux control and cost-effective industrial deployment rather than FPGA-intensive processing.
Engineering Advantages
From an engineering deployment perspective, the cRIO-9063 provides:
- Детерминированное управление в реальном времени
- Integrated Zynq FPGA architecture
- NI Linux Real-Time flexibility
- Modular C Series expansion
- Embedded industrial deployment capability
- Прочный безвентиляторный дизайн
- Compact 4-slot footprint
- Tight integration with LabVIEW ecosystems
These features make it highly suitable for embedded industrial control and distributed monitoring applications.
Заключение
Земля NI cRIO-9063 прочный 4-slot CompactRIO controller designed for industrial automation, embedded monitoring, distributed measurement, and deterministic real-time control applications.
Его сочетание:
- ARM Cortex-A9 dual-core processing
- ПЛИС Xilinx Zynq-7020
- NI Linux Real-Time
- Модульные устройства ввода-вывода серии C
- Rugged embedded construction
- Flexible software integration
makes it a practical solution for machine monitoring, distributed acquisition, embedded automation, and industrial edge control systems.
