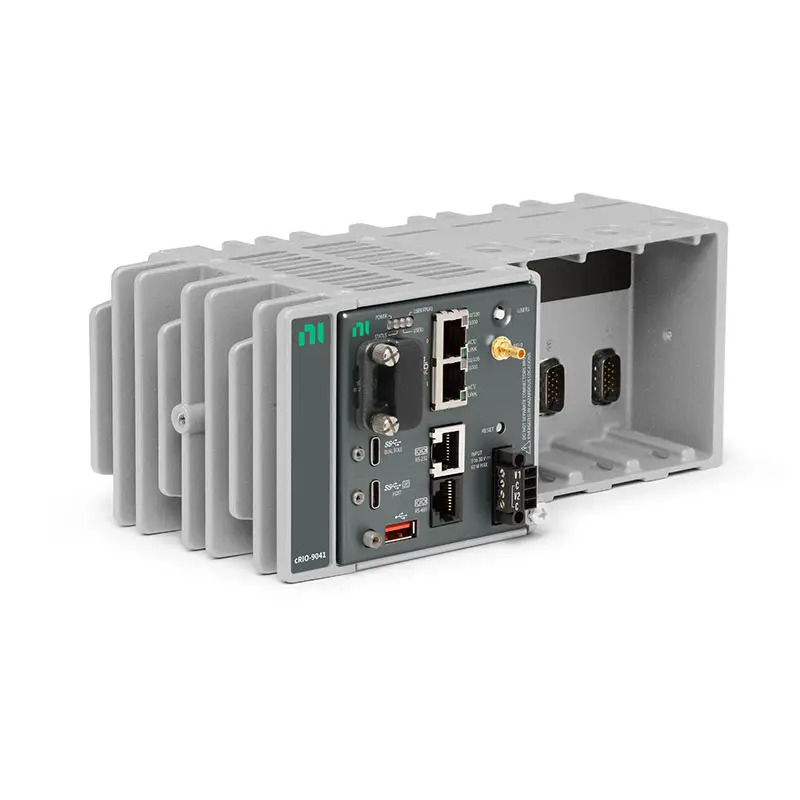

cRIO-9041

Земля NI cRIO-9041 прочный Компактный встраиваемый контроллер CompactRIO с 4 слотами designed for deterministic industrial control, embedded monitoring, distributed measurement, and FPGA-based edge processing applications. Built on the NI CompactRIO platform, the cRIO-9041 combines a real-time Intel Atom processor, programmable Xilinx FPGA architecture, and modular C Series I/O into a compact industrial controller optimized for harsh environments.

Unlike traditional PLC systems that rely mainly on CPU-based logic execution, the cRIO-9041 integrates FPGA-level hardware timing and deterministic processing directly into the control architecture. This allows engineers to implement ultra-low-latency control loops, synchronized acquisition systems, industrial communication protocols, and custom hardware logic within the same embedded platform.

The controller is widely used in:

• Промышленные системы автоматизации
• Мониторинг состояния оборудования
• Robotics and motion control
• Automotive HIL systems
• Distributed measurement architectures
• Smart grid and energy systems
• Embedded OEM control platforms
• Industrial IoT edge systems

Архитектура процессора и ПЛИС

The cRIO-9041 uses an Intel Atom E3930 dual-core processor running the Операционная система NI Linux Real-Time, providing deterministic execution behavior for industrial real-time applications. The system includes:

• 1.3 GHz dual-core CPU
• 2 ГБ DDR3L ОЗУ
• 4 ГБ встроенной памяти
• Xilinx Kintex-7 70T FPGA

Бортовой Kintex-7 FPGA enables:

• Hardware-level timing control
• Высокоскоростная обработка сигналов
• Deterministic trigger execution
• Inline FFT and digital filtering
• Синхронизация кодера
• Motion control acceleration
• Custom industrial protocol implementation
• Real-time coprocessing applications

Compared with standard industrial PCs, FPGA-based CompactRIO systems provide significantly lower latency and more stable deterministic timing behavior under heavy processing loads.

Time-Sensitive Networking and Synchronization

One major advantage of the cRIO-9041 is support for ТСН (Сеть с чувствительностью ко времени) and IEEE synchronization protocols. The controller supports:

• IEEE 802.1AS
• Синхронизация по IEEE 1588
• Субмикросекундная точность синхронизации
• Deterministic distributed communication architectures

For distributed industrial systems, this enables synchronized measurements and coordinated control across multiple controllers and acquisition nodes.

This is especially valuable in:

• Distributed energy systems
• Industrial test stands
• Multi-axis synchronized motion systems
• Automotive simulation platforms
• High-speed distributed acquisition networks

Modular C Series Expansion Capability

The cRIO-9041 supports up to 4 модуля серии NI C, allowing engineers to configure systems using:

• Аналоговый ввод/вывод
• Цифровой ввод-вывод
• CAN / CAN FD связь
• LIN-коммуникация
• Запись вибрации
• Измерение температуры
• Motion control interfaces
• Промышленные коммуникационные модули

This modular architecture allows the controller to function simultaneously as:

1. Детерминированный промышленный контроллер
2. A distributed real-time acquisition system
3. An FPGA-based edge processing node

Unlike fixed-function PLC hardware, CompactRIO systems can be customized for application-specific industrial requirements.

Промышленные применения

Робототехника и управление движением

The FPGA architecture enables deterministic multi-axis synchronization for:

• Servo systems
• Робототехника
• Упаковочное оборудование
• CNC machinery
• Automated production lines

Condition Monitoring Systems

Using vibration and analog modules, engineers can implement:

• Predictive maintenance systems
• Bearing diagnostics
• Industrial FFT analysis
• Rotating machinery monitoring
• Online equipment health analysis

Автомобильные HIL-системы

The cRIO-9041 is widely used for:

• Проверка ЭБУ
• Signal simulation
• CAN/LIN communication testing
• Real-time automotive simulation

Smart Grid and Power Systems

In power applications, the controller supports:

• Power quality monitoring
• Distributed energy control
• Protection relay validation
• Grid synchronization analysis
• Real-time energy monitoring

Прочный промышленный дизайн

The cRIO-9041 is designed for harsh industrial environments with:

• Fanless construction
• Operating temperature range from -40 °C до 70 °C
• Ударопрочность и вибростойкость
• DIN-rail and panel mounting support
• Промышленное соответствие требованиям ЭМС

This makes the controller suitable for factory automation, transportation systems, energy infrastructure, and outdoor deployments.

Connectivity and Interfaces

Контроллер обеспечивает:

• 2 × Гигабитных Ethernet-порта
• USB 3.1 Type-C
• USB 2.0 ports
• RS232 serial interface
• RS485 serial interface
• Слот для SD-карты
• Поддержка синхронизации TSN

The USB Type-C interface also supports simplified deployment, local HMI integration, and system debugging.

Comparison with Similar CompactRIO Models

Compared with the older cRIO-903x generation, the cRIO-9041 provides improved synchronization capability, TSN networking support, updated processor architecture, and modern NI Linux Real-Time support.

Compared with higher-end cRIO-905x systems, the cRIO-9041 provides a more cost-effective solution for industrial deterministic control applications that do not require extremely large FPGA resources.

Engineering Advantages

From an engineering deployment perspective, the cRIO-9041 offers:

• Детерминированное управление в реальном времени
• FPGA hardware acceleration
• TSN synchronized networking
• Industrial-grade ruggedness
• Flexible modular I/O architecture
• Low-latency distributed control
• Стабильность развёртывания в долгосрочной перспективе
• Tight integration with LabVIEW and NI ecosystems

This makes it highly suitable for advanced embedded industrial control systems.

Заключение

Земля NI cRIO-9041 CompactRIO Controller is a professional embedded real-time control platform designed for deterministic industrial automation, FPGA-based processing, and distributed monitoring systems.

Его сочетание:

• Intel dual-core real-time processing
• Ускорение FPGA Kintex-7
• TSN synchronization
• Modular C Series expansion
• Промышленная прочность
• Интеграция LabVIEW

makes it an ideal solution for industrial automation, robotics, smart grid systems, HIL simulation, machine monitoring, and distributed embedded control applications.
