Introduction

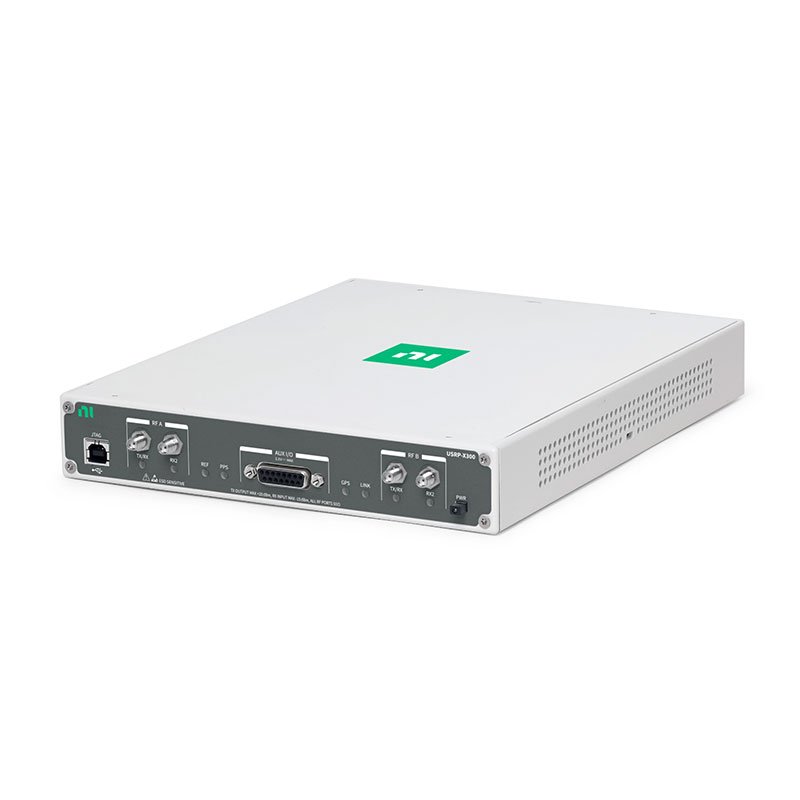

Земля NI Ettus USRP X300 Software Defined Radio (SDR) is a high-performance software-defined radio platform designed for advanced wireless communication research, RF prototyping, and real-time signal processing applications.
Developed by Ettus Research, a National Instruments company, the USRP X300 provides a flexible and scalable SDR architecture that enables engineers and researchers to develop, test, and deploy advanced wireless systems. With wideband RF capability, powerful FPGA processing, and high-speed Ethernet connectivity, the X300 is widely used in 5G research, cognitive radio, radar development, spectrum monitoring, and academic research.
The USRP X300 combines a high-performance FPGA-based processing engine with modular RF daughterboard support, allowing users to customize frequency coverage and system capabilities according to different application requirements.
Key Features of NI Ettus USRP X300
High-Performance Software Defined Radio Architecture
The USRP X300 provides a flexible SDR platform that allows most radio functions to be implemented through software and FPGA processing.
- Real-time RF signal processing
- FPGA-based programmable architecture
- Flexible waveform development
- Software-controlled radio configuration
- Support for custom communication algorithms
This architecture enables rapid development and testing of new wireless communication technologies without requiring dedicated hardware redesign.
Wideband RF Capability
The USRP X300 supports a wide range of RF applications through interchangeable daughterboards.
- Wide frequency coverage options
- Multi-band RF experimentation
- High-performance signal transmission and reception
- Support for advanced wireless protocols
Engineers can select appropriate RF daughterboards based on frequency requirements, bandwidth, and application goals.
High-Speed Ethernet Connectivity
The USRP X300 provides high-throughput Ethernet interfaces for transferring large amounts of IQ data between the SDR and host computer.
- 10 Gigabit Ethernet connectivity
- High-speed data streaming
- Low-latency communication
- Suitable for wideband applications
The high-speed network interface enables real-time processing of complex RF signals and large bandwidth applications.
Powerful FPGA Processing Capability
The integrated FPGA provides real-time signal processing capabilities directly on the SDR hardware.
- Custom FPGA programming
- Digital down conversion
- Digital up conversion
- Signal filtering
- Real-time waveform processing
FPGA processing reduces latency and enables advanced radio applications requiring deterministic performance.
Modular Daughterboard Support
The USRP X300 supports interchangeable RF daughterboards, providing flexibility for different frequency ranges and communication standards.
- Customizable RF front-end
- Support for multiple frequency bands
- Flexible research platform
- Easy system upgrades
Applications of NI Ettus USRP X300
5G and Wireless Communication Research
The USRP X300 is widely used by researchers developing next-generation wireless communication technologies.
- 5G waveform development
- Massive MIMO research
- Beamforming algorithms
- Wireless protocol testing
- Communication system simulation
Software Defined Radio Development
The flexible architecture allows engineers to design and evaluate custom radio systems.
- Custom waveform development
- Cognitive radio research
- Adaptive communication systems
- Open-source SDR projects
Radar and Signal Processing
The high-performance FPGA and wideband RF capability make the USRP X300 suitable for radar and sensing applications.
- Radar waveform testing
- Signal intelligence research
- Target detection algorithms
- Real-time signal analysis
Spectrum Monitoring and Electronic Research
The USRP X300 can be used for monitoring and analyzing complex RF environments.
- Spectrum analysis
- RF interference monitoring
- Wireless security research
- Signal classification
Academic and Laboratory Research
Universities and research laboratories use the USRP X300 as a flexible platform for RF education and experimentation.
- Wireless communication courses
- RF engineering research
- Signal processing experiments
- Communication algorithm validation
Software Support and Integration
The USRP X300 is supported by a wide range of software frameworks for SDR development and RF research.
- UHD (USRP Hardware Driver)
- GNU Radio
- LabVIEW Communications
- MATLAB
- Simulink
- C/C++
- Питон
The UHD driver provides hardware abstraction and enables integration with multiple programming environments for rapid SDR development.
Technical Specifications of USRP X300
| Функция | Описание |
|---|---|
| Platform Type | High-performance Software Defined Radio |
| RF Architecture | Modular daughterboard-based design |
| Connectivity | 10 Gigabit Ethernet |
| Processing | FPGA-based real-time processing |
| Software | UHD, GNU Radio, MATLAB, LabVIEW |
| Applications | Wireless research, RF prototyping, radar, signal processing |
Comparison with Similar USRP Platforms
| Модель | Основное различие | Best Application |
|---|---|---|
| USRP X300 | High-performance modular SDR with 10GbE | Advanced RF research and prototyping |
| USRP X310 | Enhanced X Series model with additional performance options | High-end wireless and MIMO research |
| USRP N300 | Networked SDR optimized for RF applications | Distributed wireless systems |
| USRP B205mini-i | Compact embedded SDR platform | Portable SDR development |
Compared with smaller USRP platforms, the X300 provides significantly higher processing capability and bandwidth. Compared with newer USRP models, it remains a reliable and widely adopted SDR platform for research institutions and engineering development projects.
Why Choose NI Ettus USRP X300
- High-performance SDR architecture
- Wideband RF experimentation capability
- Powerful FPGA-based processing
- 10 Gigabit Ethernet high-speed data transfer
- Flexible RF daughterboard support
- Compatible with leading SDR software platforms
- Ideal for advanced wireless and RF research
Заключение
Земля NI Ettus USRP X300 Software Defined Radio platform provides researchers and engineers with a powerful and flexible solution for advanced RF experimentation, wireless communication development, and real-time signal processing.
With its modular RF architecture, high-speed Ethernet connectivity, FPGA processing capability, and extensive software support, the USRP X300 remains an excellent platform for 5G research, radar development, spectrum monitoring, academic research, and next-generation wireless system prototyping.
